Roland SYSTEM 100 101 Service Manual page 2

1976-7-30
SYSTEM 100-101 1976-7-30
SYSTEM
TOO-lOl
PANEL DIAGRAM DISASSEMBLY

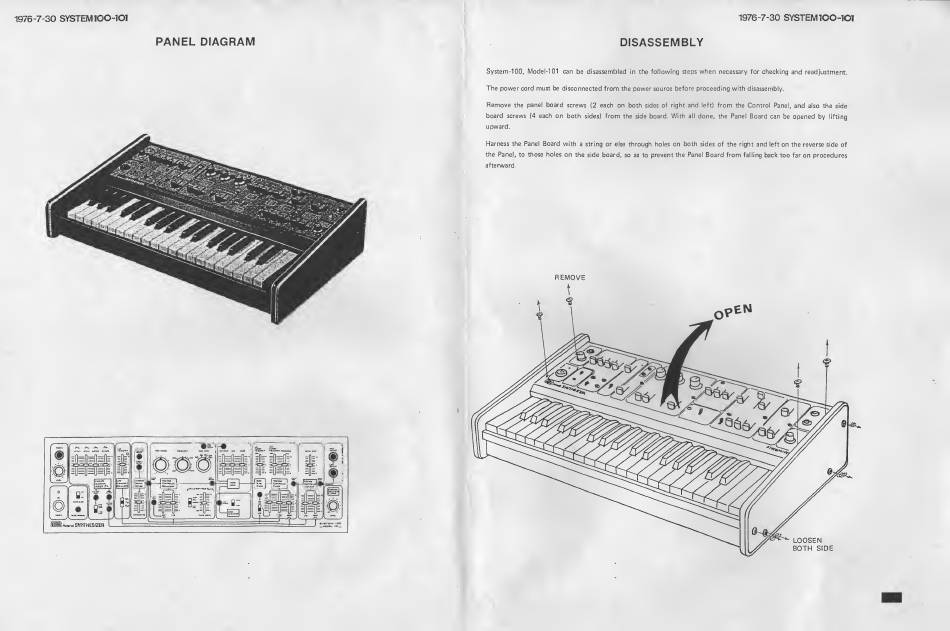

System-100, Model-101 can be disassembled
in the following steps
when
necessary for
checking
and readjustment.
The power cord must be disconnected from
the
power source before proceeding with
disassembly.
Remove
the panel board screws
(2
each on both
sides
of right and
left)
from
the
Control
Panel,
and
also the side
board
screws (4 each
on
both sides)
from
the
side
board. With
all
done, the Panel Board can be opened by
lifting
u
pward
Harness the Panel
Board with
a
string or
else
through holes on both sides of the right and
left
on the reverse
side of
the Panel,
to
those holes on
the side board, so
as
to prevent the Panel
Board from
falling back too
far
on procedures
afterward.
©=g^
LOOSEN
BOTH
SIDE
