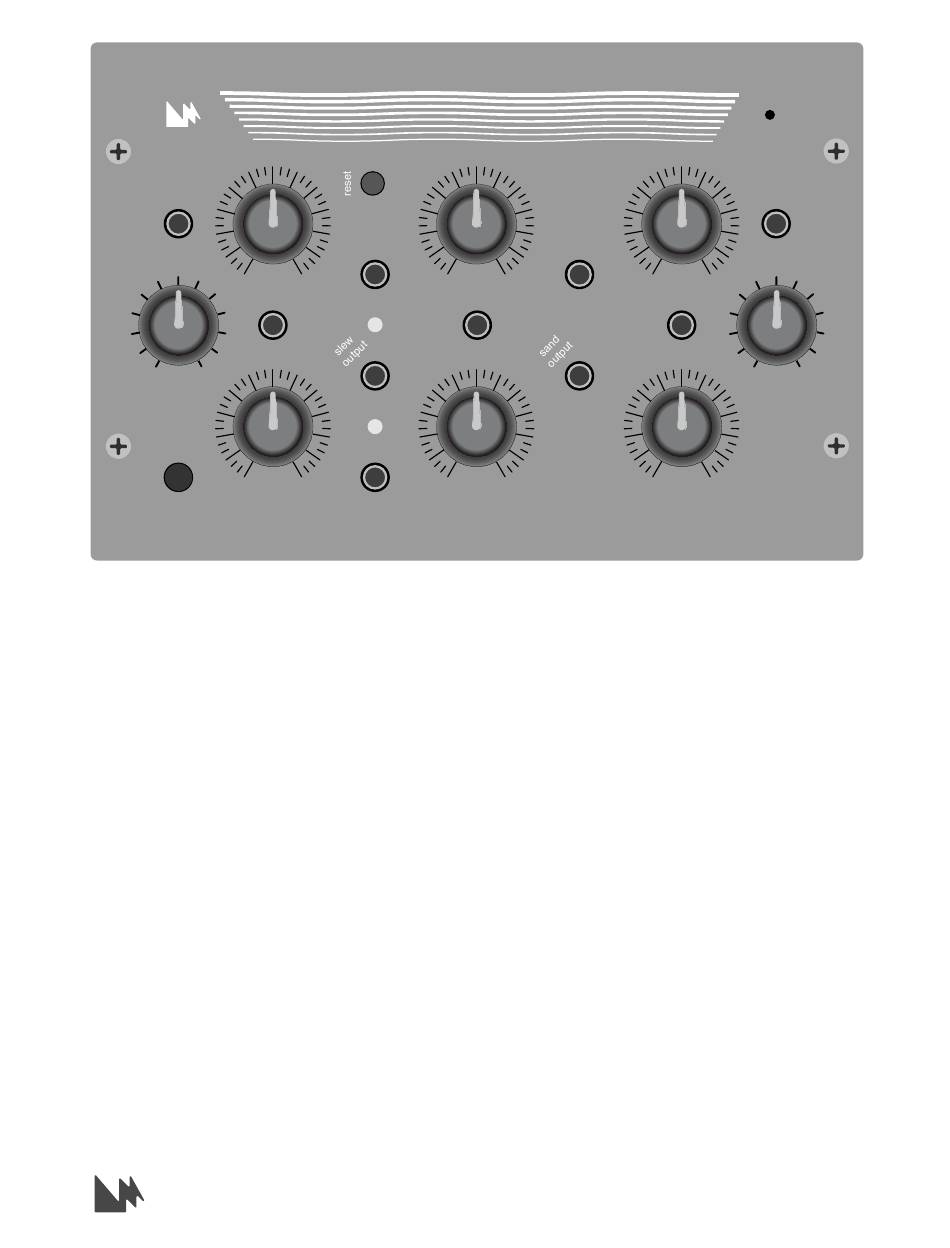

Lorre Mill Float Glass Manual

input
input
gain
inputs - 1/4" mono input with low/high gain switch and overdrive - 1/8" stereo input sums left and right channels to
mono.
power - 12v DC center positive 2.1mm x 5.5mm barrel 500mA minimum.
outputs - 1/4" mono output with selectable level (use a paperclip or pin to push the switch above the dry/wet
control) - 1/8" mono output on left and right channels.
input - controls the volume of the 1/4", 1/8", and
banana inputs. Gain switch sets the gain of the 1/4" input
to either x2 or x12.
rate - controls the rate of the modulation oscillator. The
reset button clears the memory of the modulation oscilla-
tor, resetting the wave. The rate knob acts as an offset to
the rate cv input.
slew - sets the smoothness of the modulation oscillator.
From stepped signal (knob fully cw) to very slow and
smooth (knob fully ccw).
Lorre Mill 2024
input
float
wave
output
- +
rate
rate cv
slew
data
input
lorre-mill.com/float_glass
noise
output
sand
sand cv
phase
Float Glass
sand - this knob controls the offset of the sand signal.
This control has no effect unless there is a patch connec-
tion using the sand output.
phase - this is the offset of the phaser filter cutoff point.
resonance - sets feedback on the phaser to make the
effect more or less dramatic.
phase cv - this is the amount of the modulation oscilla-
tor (or signal at phase cv input) which affects the phase.
dry/wet - is the blend of filtered and dry signal. A
phaser is most noticeable when mixed with the original
dry signal to create interference between the two waves.
output
glass
phase
output
resonance
phase cv
dry/wet
- +
phase
cv
