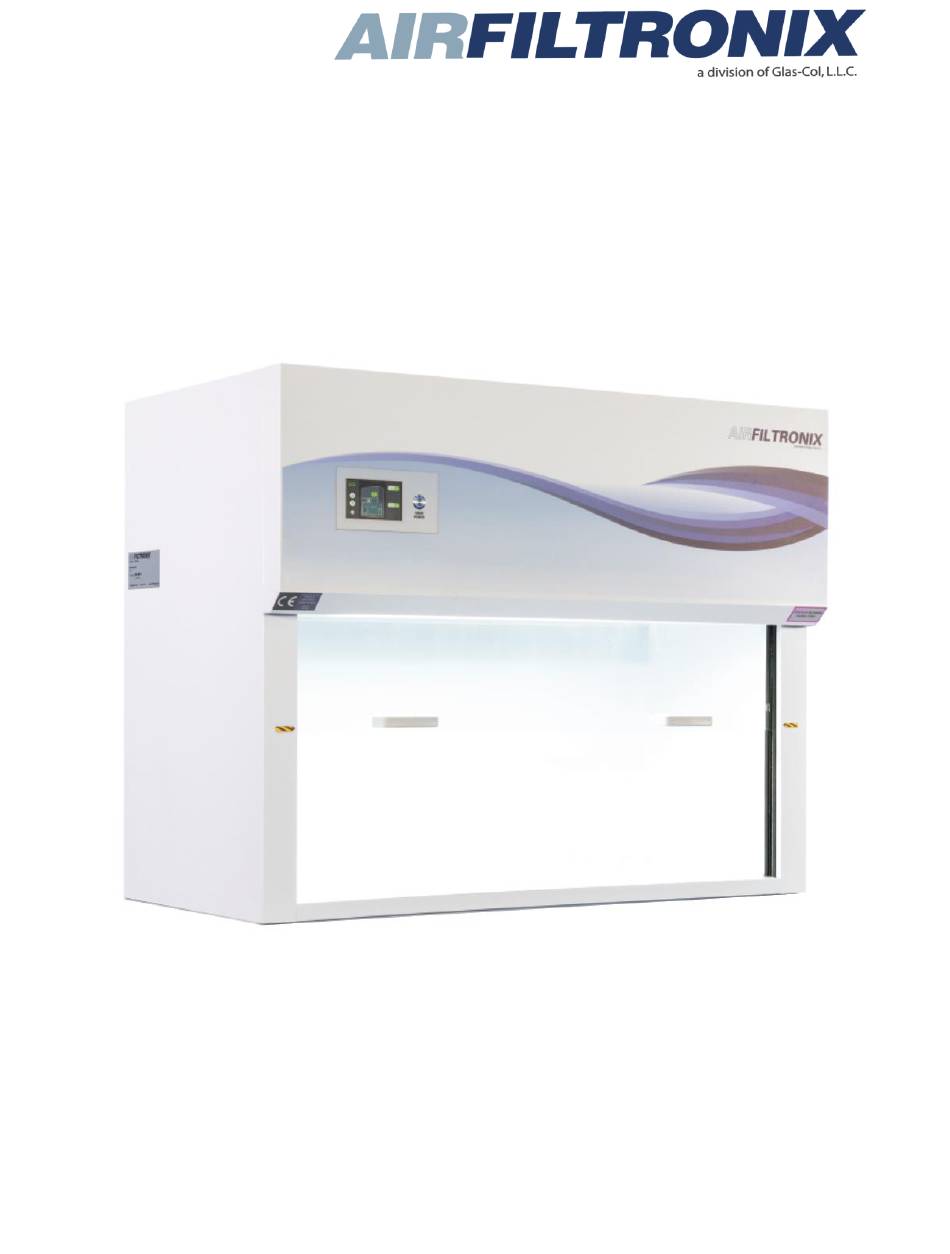

  • Page 1 Ductless Fume Hoods AB Series...
  • Page 2 Warranty: AirFiltronix provides a warranty to the original buyer for the repair or replacement of parts and reasonable labor as a result of normal and proper use of the equipment with compatible chemicals. Broken glassware and maintenance items, such as filters, gaskets, light bulbs, finishes and lubrication are not warranted.
  • Page 3 AirFiltronix is held harmless with respect to user’s compliance with such regulations.

  • Page 4: Table Of Contents

    Table of Contents Safety ..........................5 1.1. Personal safety ......................5 1.2. Equipment safety ......................6 Receiving and Installation ....................7 2.1. Unpacking and Inspection .................... 7 2.2. Location Requirements ....................8 2.3. Moving the Fume Hood ....................9 2.4. Installation ........................10 Installing the fume hood on an existing work surface ..........10 Product Description ......................12...

  • Page 5: Safety

    The media of HEPA filters is fragile and should not be touched. Avoid puncturing either HEPA filter during installation or normal operation. If you suspect that a HEPA filter has been damaged, DO NOT use the product. Contact a local certification agency or AirFiltronix.

  • Page 6: Equipment Safety

    If you have any questions regarding certification agencies, or need assistance in locating one, contact AirFiltronix. Avoid the use of flammable gases or solvents in the product. Concentration of flammable or explosive gases or vapors must be kept below a safe limit. An open flame should NOT be used in the product.

  • Page 7: Receiving And Installation

    If the cabinet was damaged during the transportation, please file a claim directly with the freight carrier. AirFiltronix is not responsible for shipping damages. Do not discard the materials in which the cabinet was packed until all of the components have been checked, installed and tested.

  • Page 8: Location Requirements

    Test report If any of the components listed for the cabinet are missing, or in the case that any of the components are damaged, contact AirFiltronix immediately for further instructions. 2.2. Location Requirements The Ductless Fume Hood must be located as far as practicable from doors, fans, ventilation registers, other fume hoods and air-handling units that can adversely affect its airflow pattern.

  • Page 9: Moving The Fume Hood

    2.3. Moving the Fume Hood Moving the fume hood while it is still on its shipping pallet should be done using a pallet jack. Caution: Do not attempt to tilt the cabinet onto a hand truck!

  • Page 10: Installation

    2.4. Installation A. Installing the fume hood on an existing work surface Caution: The ductless fume hood cabinet weighs between 90-230 kg. The shipping pallet allows for lifting with a mechanical lift truck or floor jack. If you must lift the cabinet manually, at least 2 people are required, and guidelines for safety must be strictly followed.
  • Page 11 Electrical Requirements The Ductless Fume Hood requires a single phase AC power. The following table provides the various ECO Ductless Fume Hood models’ requirements: Model Requirements 115 VAC, 2A, 60Hz 200T AB36 230 VAC, 1A, 50/60Hz 115 VAC, 3A, 60Hz 200T AB48 230 VAC, 1.5A, 50/60Hz The product is shipped with a power cable compatible with the requirements.

  • Page 12: Product Description

    3. Product Description 3.1. User Controls and Display Figure 3-1 shows the cabinet’s display after power has been turned on. Fan On/Off Fan level Fan speed Light On/Off control Settings Figure 3-1 Main Display Screen User Controls: Main Power Main power switch Fan on/off Touch to turn the fan on or off Sockets on/off...
  • Page 13 User Display: Shows a number from 1 to 10 that indicates fan’s speed level Fan level Figure 3-2 shows the screen that appears when selecting the Settings icon in the Main Display. Figure 3-2 Main Settings Screen Touch one of the icons to proceed to the desired function or go back to the Main Display ( by touching the left arrow).
  • Page 14 Touch a numerical field in order to set its value. A keypad will appear allowing the entry of the relevant value. The Display Units field allows setting the date format. Touch Save when done, and then touch the left arrow on the screen’s bottom left corner. Test Reminder: Figure 3-5 shows the Next Periodic Test screen.
  • Page 15 This screen can only be reached from the calibration screen, using a specific password. Set the Fan speed to the desired value that will be maintained until changed again. Entering Screen Cleaning Mode: Figure 3-9 Locking the Screen When the hand icon is touched, the screen will “freeze” (i.e. not respond to further touching). This will make it possible to wipe the screen clean without interfering with any activity in progress.

  • Page 16: Maintenance And Troubleshooting

    4. Maintenance and Troubleshooting 4.1. Periodic Maintenance This cabinet requires very little maintenance for long, uninterrupted service. Following are the required maintenance operations: Weekly 1. Using 70% ethanol, or another disinfectant, disinfect the surface of the hood interior and the work surface. 2.

  • Page 17: Troubleshooting

    4.3. Troubleshooting The following table provides helpful information for some common problems. Symptom Probable Cause Corrective Action Plug the hood into the appropriate electrical outlet. Unit not plugged into outlet Check connection to control box on the top Cabinet blower and of the hood.

  • Page 18: Filters

    5. Filters HEPA Filter Features: Specifications: • Tested to ensure certified • Efficiency: HEPA ULPA • Media type: Fiberglass performance • Reduces operation costs with lowest • Frame material – aluminum • Separator style – hot melt possible pressure drop from micro- •...
  • Page 19 Carbon Filter for Acids The Carbon Filter for Acid is a high-activity extruded activated carbon produced using steam activation from top grades of coal. The Carbon Filter for Acid is chemically impregnated and thermally treated to enable the removal of acid gases in oxygen deficient atmospheres. The rigorous dispersion of the reactive chemical reagents enables the effective removal and retention of the contaminants while ensuring high adsorption capacity.

  • Page 20: Appendix

    6. Appendix Contaminants and filter media...
  • Page 24 Contaminants and filter media (Continued)
  • Page 25 Contaminants and filter media (Continued) Contaminants and filter media (Continued)

This manual is also suitable for:

200t ab36200t ab48
