APEX CONTROL REPLACEMENT MANUAL
WARNING!
Disconnect Portacool from
electrical source before servicing.
Models:
PACA12001A1, PACA20001A1, PACA40001A1 and PACA65001A1
Before Beginning:
Move unit to safe work
environment.
Position Portacool with plenty of
working room on all sides.
Disconnect Portacool from
electrical and water supplies.
Steps:
1. First, unscrew the Media Flap Screws using a 5/16" socket and remove
the Media Flap. Pull the Distribution Media and all the Main Media out of
the unit.

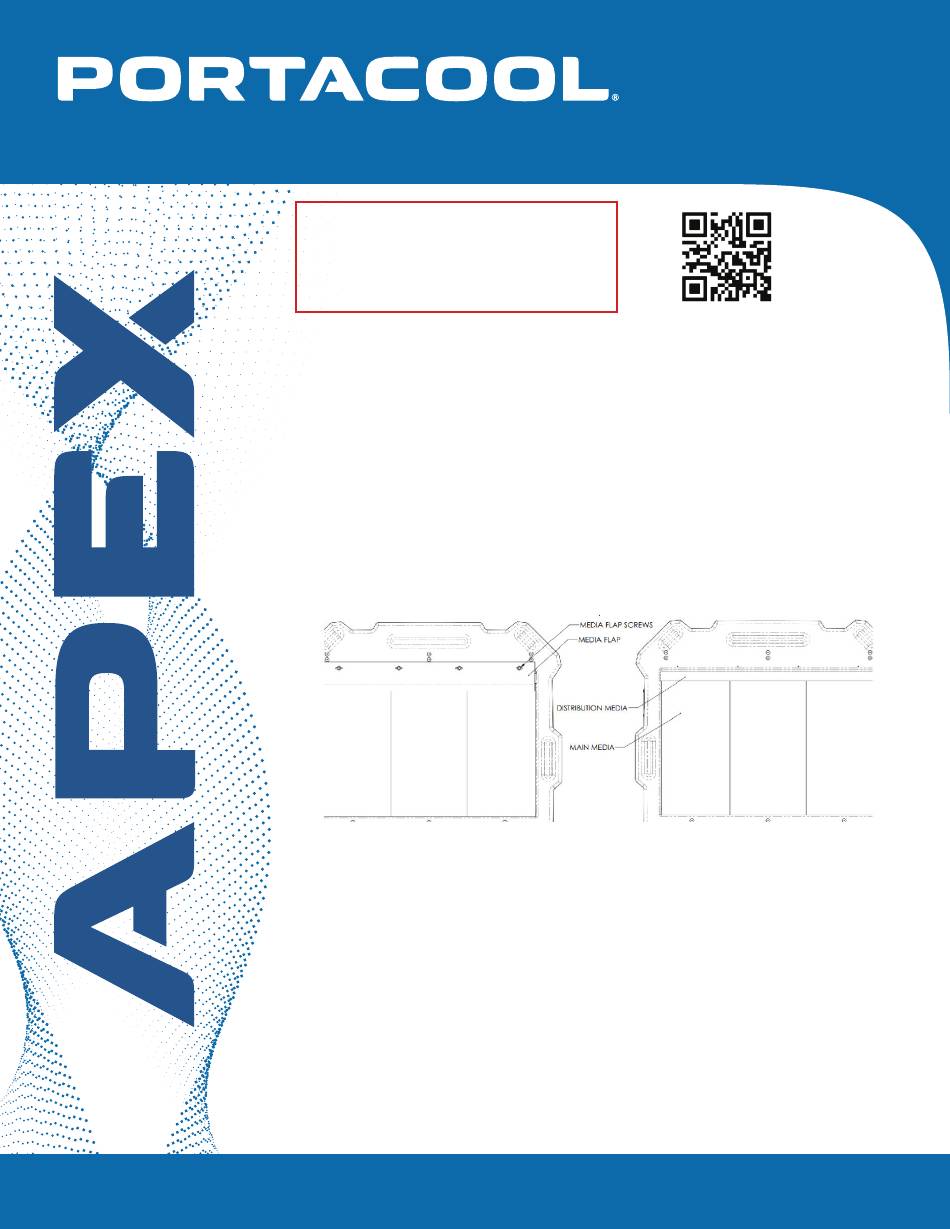

Figure 1: Portacool Apex 1200-6500 Back View (Left), Portacool Apex 1200-6500 Back
View without Media Flap (Right)
2. Once the control unit is accessible from inside the unit, note that the
wires have been bundled and tied to the controls using a zip tie, routed
in a downward and then upward direction, forming a drip loop path
(Figure 2). This prohibits moisture ingression inside and unit mitigating
risk of component damage. From inside of the unit cut the 1X zip tie.
Unplug the Power cable, Motor, Pump and LLI connectors from the
bottom of the Control unit (Figure 3).
WWW.PORTACOOL.COM
Tools Needed:
Drill Driver with 1/4- and 5/16-
inch sockets.
Gloves
Safety Glasses
REFR0135 Rev. A

Advertisement

loading
Need help?

Need help?

Do you have a question about the APEX PACA12001A1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Portacool APEX PACA12001A1

  • Page 1 Media Flap. Pull the Distribution Media and all the Main Media out of the unit. Figure 1: Portacool Apex 1200-6500 Back View (Left), Portacool Apex 1200-6500 Back View without Media Flap (Right) 2. Once the control unit is accessible from inside the unit, note that the...
  • Page 2 Disconnect Portacool from electrical source before servicing. Figure 2: Portacool Apex 1200-6500 Interior View with Control Unit Wiring Details. Figure 3: Portacool Control Unit Connectors (Bottom View). 3. Unscrew the 4X Screws securing the Control unit to the outside of the Portacool housing using 1/4”...
  • Page 3 Figure 2. Take caution to eliminate any possibility of loose wires obstructing the Fan’s path. 7. Reassemble the Main Media, Distribution Media, and Media Flap. 8. Connect the Portacool unit to a power source and verify its functionality to ensure proper operation. REFR0135 Rev. A...
