Advertisement
Quick Links
Attach the large
antenna:
Please follow the
included Antenna
Assembly /
Mounting guide.
See Page 5 for
weatherproofing.
Connect
the CC DX Mile
to the 30 ft.
cable.
Make sure
to insert cable
tip completely
inside connector.
NOTE:
Please do not skip any steps. Steps "B1" or "B2" must be done before proceeding.
A
A
1
After plugging in the AC Power cord into the CC Vector Repeater, wait 1 - 2 minutes.
B
Configure Wirelessly (most popular way):
1
(Internet browser required).
1. From your computer, tablet, smartphone or
WiFi device, go to the WiFi Settings/Connections
and connect to the
listed on the sticker underneath the
CC Vector.
2. Enter the
WiFi Password
B
To Configure with an Ethernet Cable:
2
Although the CC Vector can be set up from a tablet or a smartphone, it may be
easier to use a computer using the included 18" Ethernet cable.
Connect the Ethernet cable to your computer's Ethernet port and to either of the
CC Vector's Ethernet ports on the back of the device.
™

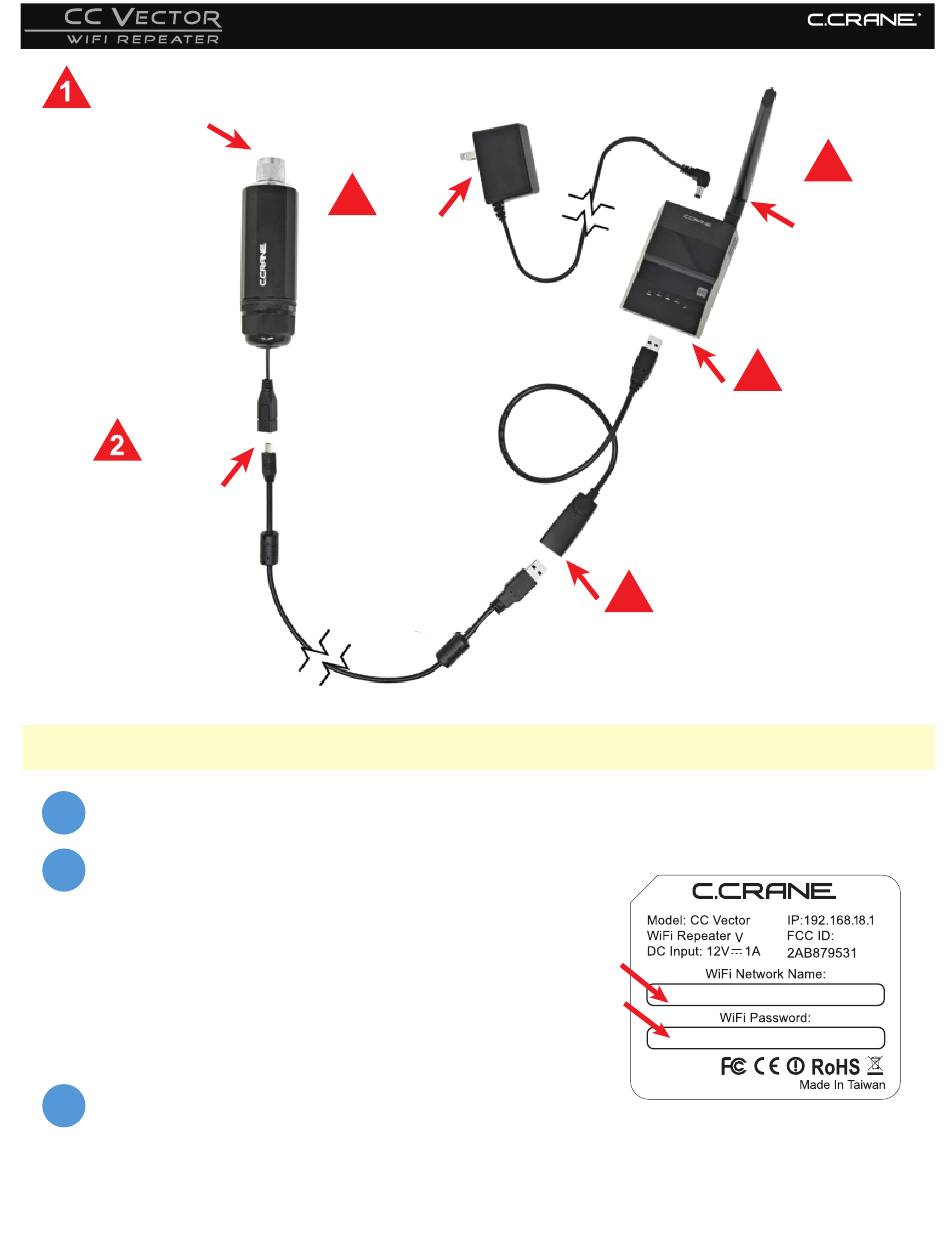

Quick Start Setup Guide
Please assemble all items as pictured before proceeding.
6
Connect the AC
power plug into
a wall outlet
Leave this
unplugged
™
WiFi Network Name
when prompted.
OR
3
Connect the 1.5 ft.
USB Amplifier cable
WiFi Network
Name
WiFi Password
V18-2024
5
Attach the
small
antenna
to the
CC Vector
™
4
Plug into the
CC Vector
™
4
1
Advertisement
Related Manuals for C. Crane CC VECTOR
Summary of Contents for C. Crane CC VECTOR
- Page 1 NOTE: Please do not skip any steps. Steps “B1” or “B2” must be done before proceeding. After plugging in the AC Power cord into the CC Vector Repeater, wait 1 - 2 minutes. Configure Wirelessly (most popular way): (Internet browser required).
- Page 2 At this point you are connected to the CC Vector but your browser will likely tell you that you are not connected to the internet. This is normal because the CC Vector is not yet setup. Continue with the setup.
- Page 3 Make sure to use the main USB connector of the USB cable and that it is inserted into the USB Port of the USB Amplifier Cable. After above is checked, click Rescan. Call C. Crane at (800) 522-8863 if you are still not able to see any “Network Names” in Step “D”.
-
Page 4: Additional Tips
3. If your CC Vector WiFi Repeater is not working as it should, dropping connections or not being responsive, you should first do a reset of the repeater to see if the problems persist. - Page 5 Weatherproofing Before connecting the CC DX Mile to the antenna, coat the threads of the antenna with the supplied silicone grease. This will help protect the threads from rust and water incursion. Once the antenna is securely screwed onto the CC DX Mile, use the supplied coaxial seal to completely cover the connection.
- Page 6 1) Setup the CC Vector normally using the included directions. 2) Confirm that the CC Vector is working by browsing the Internet while wirelessly connected to it. 3) Connect the included 18” network cable (or use your own longer network cable) to the LAN port of the CC Vector.
-
Page 7: Specifications
Operating Temperature: 32° F - 122° F (see weatherproofing on page 5) Storage Temperature: 14° F - 149° F CC Vector WiFi Repeater General Specifications Wired: IEEE 802.3/802.3u Standards Wireless: 802.11b, 802.11g, 802.11n WAN: 10/100BASE-TX Port * 1 LAN: 10/100BASE-TX Port * 1 Interface USB 2.0 Port * 1... - Page 8 If you have any doubts about your ability to install the antenna safely, please hire a licensed, bonded professional to do the work. C. Crane is not responsible or liable for damage or injury resulting from antenna installations.
