Summary of Contents for DNP SnapLab+ DT-T90

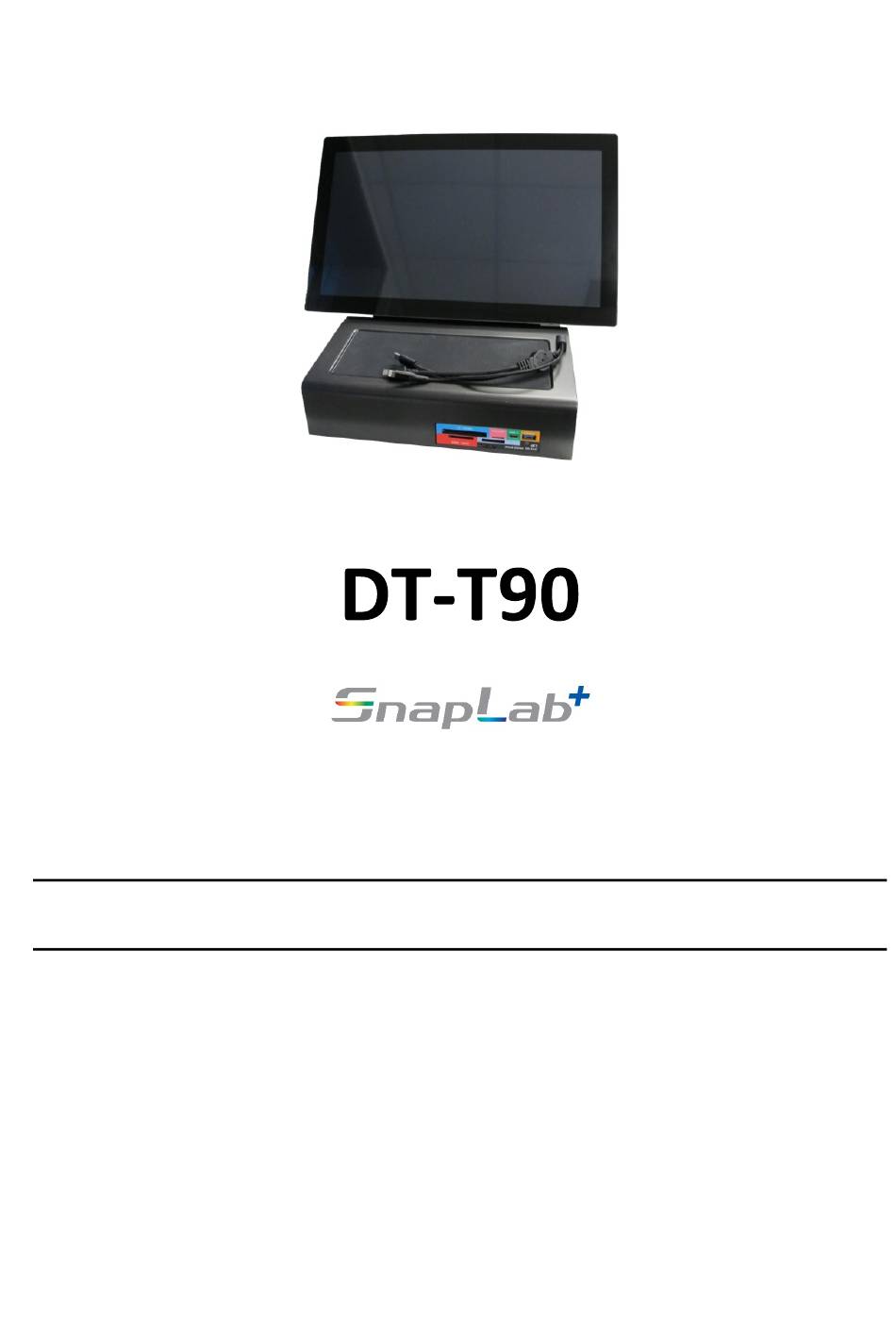

- Page 1 Installation and Quick Start Guide © DNP Photo Imaging Europe April 2024 Version 1.0...
-
Page 2: Table Of Contents
DT-T90 Summary For more details, please visit www.dnpphoto.eu website to download the Photo Editing Software User Guide. Summary ................................. 2 Warning Chapter 1 ..........................3 Warning on power connection ........................... 3 For the customers in Europe ..........................3 Installation Chapter 2 ..........................4 Box content ................................. -
Page 3: Warning Chapter 1
DT-T90 Warning Chapter To reduce the risk of fire or electric shock, do not expose this equipment to rain or moisture. To avoid electrical shock, do not open the DT-90 and DS-Printer covers. Refer servicing to qualified staff only. THIS EQUIPMENT MUST BE EARTHED. To disconnect the main power, unplug the AC IN connector. -
Page 4: Installation Chapter 2
DT-T90 Installation Chapter Box content The box contents: DT-T90 Power cord USB cable certified USB 2.0 male A to 1 dongle Wifi & 1 dongle male B printer cable bluetooth (This document) Explanation booklet... -
Page 5: Quick Start Chapter 3
DT-T90 Quick Start Chapter Installation/connexion of dongles 1) Plug Wifi & Bluetooth dongles on the back of the terminal: 2) Make sure all power supply cables (DS620 printer & DT-T90) are connected. 3) connect DS620 printer to DT-T90 with USB cable. Starting DT-T90 1) Switch on DS620 printer. -
Page 6: Change Of Software Language By Default
DT-T90 After a few minutes the Photo Editing Software will automatically start running. The software will display only products that can be printed with connected printer and loaded media. Note: If the printer is not connected, the software will display the following message: ... -
Page 7: Direct Wifi Connection
DT-T90 3) Choose “Settings” > “Language”. Available Languages Czech Japanese English Polish Finnish Portuguese French Romanian German Russian Greek Spanish Hungarian Ukranian Italian Available languages: The Photo Editing Software both editing & admin settings are available from the above list of languages. ... - Page 8 DT-T90 2) Click on settings button. 3) Click on photo sources button.
- Page 9 DT-T90 4) Click on Wi-Fi connection type button: select Normal & press “OK”. 5) Click again on photo sources button.
- Page 10 DT-T90 6) Click on Wi-Fi connection type button: select Ad-hoc & press “OK”. 7) Once it is finalized, message appear, just click on “OK”.
-
Page 11: Make A Print Order
DT-T90 Make a print order This is the Workflow of creating and printing Single Sided Print product. 1) Select Prints. - Page 12 DT-T90 2) Select media where images are located, as an example a USB device with images. 3) Select images. By pressing “+” or “-“ sign the print quantity can also be entered at this stage. 4) Select product and paper finish type.
- Page 13 DT-T90 5) Edit print quantity, crop and enhance images, add text if needed. 6) Order summary. 7) Insert Customer name. 8) Press “next” to finish the order.
-
Page 14: Shutdown The Dt-T90
DT-T90 Shutdown the DT-T90 1) Enter into Main Panel by touching in sequence the lower left and right corners of the monitor. 2) Click on Computer shutdown button. -
Page 15: Connection To Team Viewer For Support Intervention
DT-T90 Connection to Team Viewer for support intervention Team Viewer is already installed by default when you receive your order station. Your order station must be connected to internet in order to launch Team Viewer: Either by connecting RJ45 cable from an internet source to DT-T90 ... -
Page 16: Troubleshooting
3. A pop-up will appear with an ID & password. Provide the ID to support contact then he will take control remotely of your order station. XXXXX XXXXX Troubleshooting For any technical issue(s) and question(s), please contact DNP PIE support team at: Support.pie@dnp-g.com For more details, please visit www.dnpphoto.eu website to download Update Software and the Photo Editing Software User Guide.
