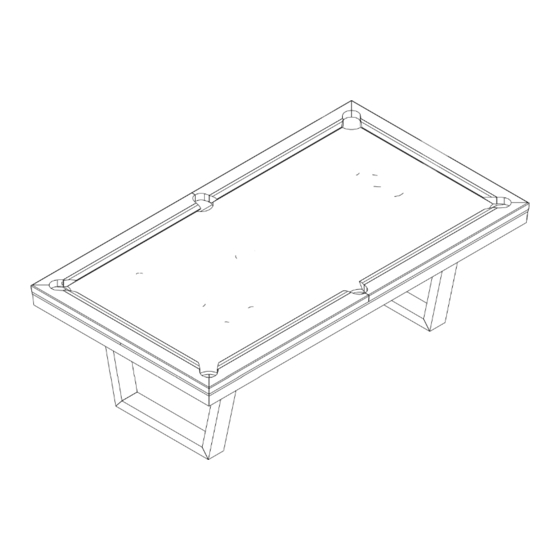

Summary of Contents for Dynamic Billard MADRID

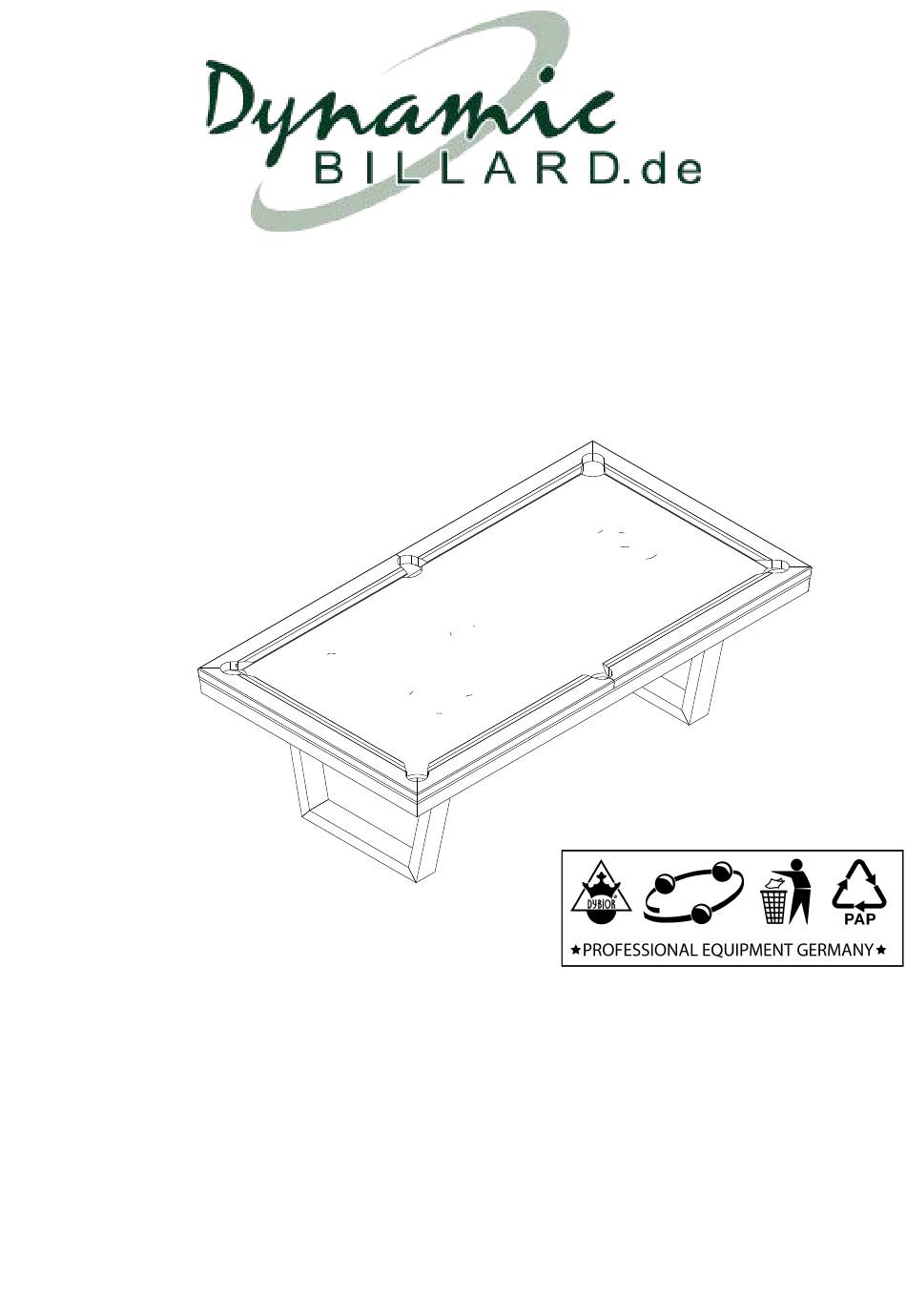

- Page 1 MADRID MADRID TABLE ASSEMBLY INSTRUCTIONS AUFBAUANLEITUNG...
- Page 2 MADRID HARDWARE ITEM# SAMPLE DESCRIPTION QTY. PACKAGE HEX HEAD CROSS BOLT 3/8" 1-3/8"(M10X35mm) FLAT WASHER 3/8" I.D. HEX NUT 3/8" I.D. HEX HEAD CROSS BOLT 5/16" 3-1/8"(M8X80mm) FLAT WASHER 5/16" I.D. FLAT HEAD SCREW 1/4" X 2"(M6X50mm) STUD BOLT 5/16" X 5-1/2"(...
- Page 3 MADRID COMPONENT PARTS QTY. PACKAGE ITEM# SAMPLE DESCRIPTION CABINET LONG WOODEN BLOCK SHORT WOODEN BLOCK SIDE APRON END APRON APRON JOINT CORNER BLOCK TOP RAIL LEFT SIDE TOP RAIL RIGHT SIDE TOP RAIL END SIDE POCKET CORNER POCKET SLATE (LEFT)
- Page 4 MADRID COMPONENT PARTS QTY. PACKAGE ITEM# SAMPLE DESCRIPTION WOOD JOINT Page 3...
- Page 5 FIG.1 FIG.2 Page 4...
- Page 6 FIG.3 FIG.4 WOOD JOINT Install the rails according to the numbers printed on backside of rails. Page 5...
- Page 7 FIG.5 CLOTH * GLUE THE CLOTH TO THE SLATE Finish Page 6...
