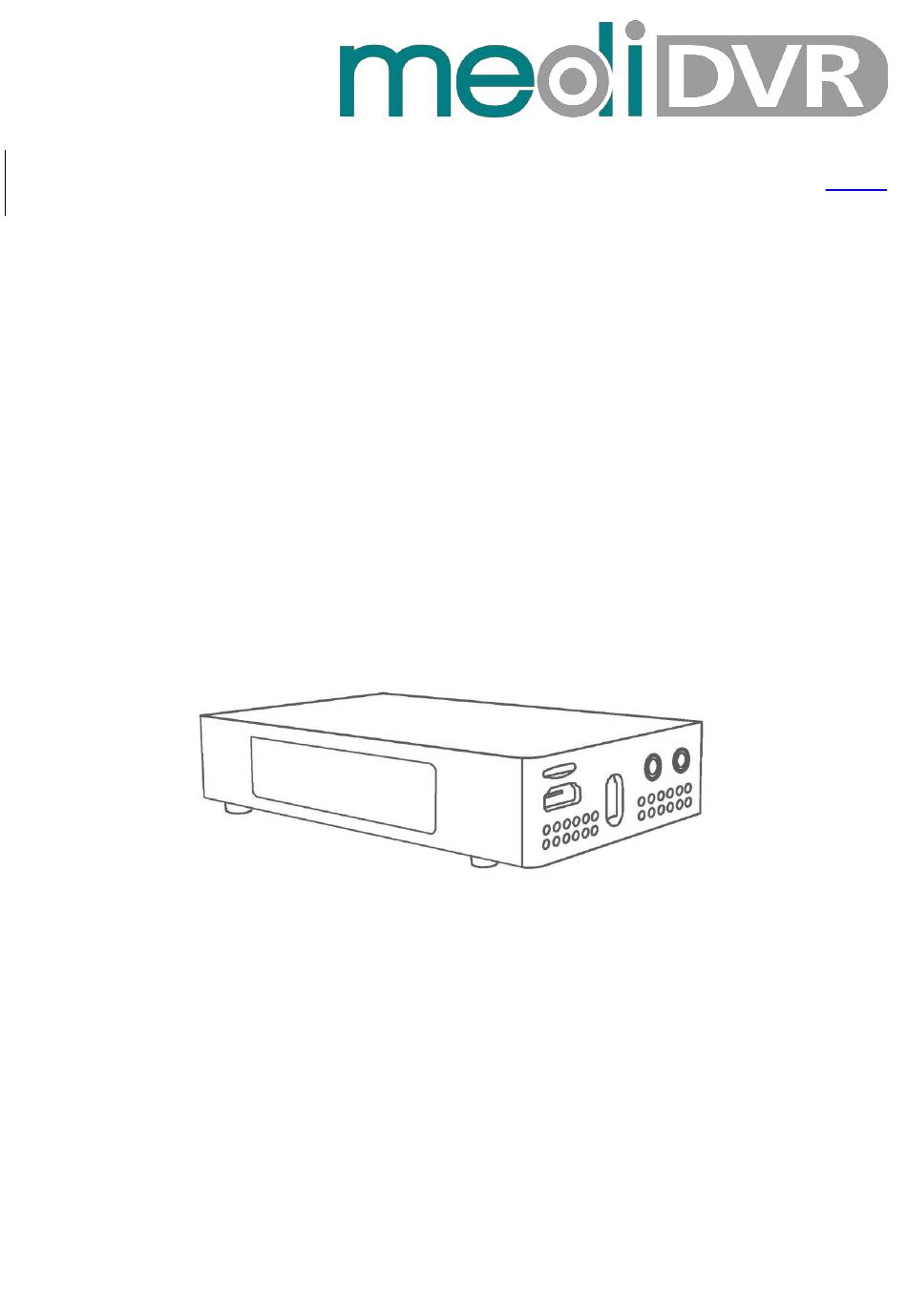

- Page 1 4K MediDVR Lite User Manual Revision Ver. 1.0.0.0 Release 2024-04-11 Product MediDVR...
- Page 2 The descriptions in this manual may differ from the version you are using. If you are having trouble using this manual, please contact our technical support for assistance. The contents of this manual will be updated, and our company reserves the right to leave it without notice. Zowietek Electronics, Ltd.
-
Page 3: Table Of Contents
Safe Instruction..........................1 Interface Description ..........................3 LCD Screen Information .......................... 4 Quick Start .............................5 Status Indicator ............................7 Monitor Use Interface ..........................7 USB Mouse and Keyboard ........................7 USB handle/foot pedal ..........................7 Modify System Time ..........................8 Select Storage Device ..........................8 Set Recording Parameter .........................9 Set Audio Parameter .......................... - Page 4 Connect to WiFi ............................ 21 Get System Information ........................22 Format Storage Device .......................... 22 Reboot MediDVR ........................... 22 Restore Factory Default Setting ......................23 Set User Account ..........................23 Upgrade ............................... 24...
-
Page 5: Safe Instruction
6)Clean only with a dry cloth. Caution 7)Do not block any of the ventilation openings. Install in 1)To prevent electric shock, it is strictly prohibited to accordance with the manufacturer’s instructions. open the cabinet. 8)Do not install near any heat source such as radiators, 2)To reduce the risk of fire or shock hazard, do not heat registers, stoves or other apparatus that expose this equipment to rain or moisture. - Page 6 12)Use only with a cart, stand, tripod, bracket or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to prevent the cart from tapping over and to avoid injury. Unplug this apparatus during lightning storms ...
-
Page 7: Interface Description
Introduction Interface Description Label Name Icon Description Tally Indicates the status of the device USB-C Plug the power supply in here LAN/PoE/NDI®|HX3 Ethernet network port DC Out Reserved interface HDMI In Connect the HDMI signal source Real-time display of current settings and working LCD Screen status TF Card... -
Page 8: Lcd Screen Information
Introduction Interface 4 is a reserved interface. Do not use this The Third Screen interface to power MediDVR. Label Description Label Description Pay attention to the direction of TF card insertion. Shows the current Tally working mode Status of the device. WIFI NDI Format Status... -
Page 9: Quick Start
Quick Start Quick Start Step 1: Connect HDMI signal Step 3: Connect the Touch Screen Connect the HDMI signal from a video source (such as a camera) to the HDMI input port of the MediDVR through 1. Use an original touch HDMI cable to connect the an HDMI cable. - Page 10 Quick Start 5） Control by mobile device If the user needs to use the mobile phone to log in to the web console, please use the touch interface or the QR code of the web interface for quick login. 3）Hotspot 6）Control Via WIFI Direct connect to MediDVR without a LAN or WIFI network.
-
Page 11: Status Indicator
Quick Start 6）Failsafe IP Tips ： When the connected network does not have the 1、 Tap an empty space on the screen to hide the icon. DHCP or directly connects MediDVR to the PC via LAN cable, or other unknown errors occur, the IP of 2、... -
Page 12: Modify System Time
Quick Start Method 2: After connecting the touchscreen, Click the menu and select the system setting , then please manually select the current time. Modify System Time When adding a new patient case, patients whose birth date is later than the system time cannot be added. Please modify the system time before using the device. -
Page 13: Set Recording Parameter
Setting->Network->NAS to add NAS information. The specific operation steps are shown in the link below: https://www.zowietek.com/knowledge-base/how-to-us e-nas-to-save-video-file/ 2.When unplugging the USB flash drive, please use the USB flash drive ejection function, otherwise the file may be damaged. -
Page 14: Set Photo Format
Quick Start interface. Method 2: After logging in to the web console, click Setting->Audio to set audio parameters such as audio source, audio channel, and volume. Set Photo Format Method 1: After connecting the touchscreen, click the menu and select the camera setting interface. -
Page 15: Create A New Patient Case
Create A New Patient Case Create A New Patient Case they are empty, the device will automatically assign a Method 1: After connecting the touchscreen, click Add name and ID to the patient. Case button , click the icon on the right to add a new patient case. -
Page 16: Search Patient Information
Create A New Patient Case Click the button and enter the doctor's information and condition description. Patient information cannot be Search Patient Information modified in this interface. Method 1: After connecting the touchscreen, click Case Management to enter the search interface. Click on the left to switch the search category, enter the relevant information in the search box, and click the search button on the right to search. -
Page 17: Record
Create A New Patient Case Record Method 1: After connecting the touchscreen, use the video button below to record. After the recording starts, users can use the pause button in the middle to pause the recording. Method 3: After connecting the USB keyboard, click F7/F11 on the keyboard to take a photo. -
Page 18: Set Encoder Parameters
Create A New Patient Case Method 2: After logging in to the web console, click Setting -> Video to set parameters such as encoding format and encoding quality. Method 5: After connecting the USB foot pedal, use the buttons on the right to start/stop recording. Tips: 1. -
Page 19: Edit Patient/Case Information
Create A New Patient Case select the case/patient to be deleted and click the button on the right to delete it. Tips: 1. When modifying a case, only the doctor and study Tips: description of the case can be modified, the patient information cannot be modified. -
Page 20: Edit Photo
Create A New Patient Case If it is in the case list, please directly click the video playback button on the right side of the case and select the video to play back or download. It takes some time to switch to playback mode, please be patient. -
Page 21: Print Case Report
Create A New Patient Case After entering the photo editing interface, click the first button in the upper right corner to edit the photo. If it is in the case list, please directly click the photo Currently, it supports adding circles, rectangles, straight preview button on the right side of the case. -
Page 22: Edit Case Report Icon
Create A New Patient Case Click Add Template and select the required template format. According to the patient's condition, select the required photos. You can select up to four photos. After selecting the photos, you can click the edit button above to edit Please enter the name of the template at the top to the photos. -
Page 23: Get Rtsp Url
Create A New Patient Case NDI Encoding Click on the icon to upload the desired photo. If NDI is not activated, please activate NDI first. After the upload is successful, please click Save. Please log in to the web console, click Setting->System->NDI, enter the NDI activation code and restart the device to activate NDI. -
Page 24: Set Streaming Parameter
Create A New Patient Case Description: Make notes for this task. Click Save and turn on the button on the left to start Tips: streaming. 1. All modification of the NDI interface requires a restart to take effect. Set LAN 2. -
Page 25: Connect To Wifi
Create A New Patient Case Connect to WiFi If users need to connect to a hidden WIFI, please enter Method 1: After connecting the touchscreen, click the the WIFI interface and click the Add button on the right to add WIFI. menu and select the WIFI interface in Network Setting... -
Page 26: Get System Information
Create A New Patient Case 1. MediDVR will automatically connect to the last menu , enter the system setting , select the connected WIFI after restarting. format interface, click the storage device and the format 2. To clear the WIFI connection, please log in to the web button. -
Page 27: Restore Factory Default Setting
Create A New Patient Case Admin The default username and password are admin. Users with administrator privileges can perform any operations on MediDVR. Log in to the webpage with administrator privileges, and the user can modify, add, and delete the usernames and passwords of all accounts. Restore Factory Default Setting When adding or removing accounts, the user must Method 1: After connecting the touchscreen, click the... -
Page 28: Upgrade
Upgrade Upgrade Method 1: Log in to the web control interface, click Setting-> System -> Upgrade, select the required firmware to upload and upgrade. During the upgrade process, please turn off WIFI and use a wired network to upgrade. Please keep the network great during the upgrade and do not power Or insert the storage device into MediDVR and directly down the MediDVR.
