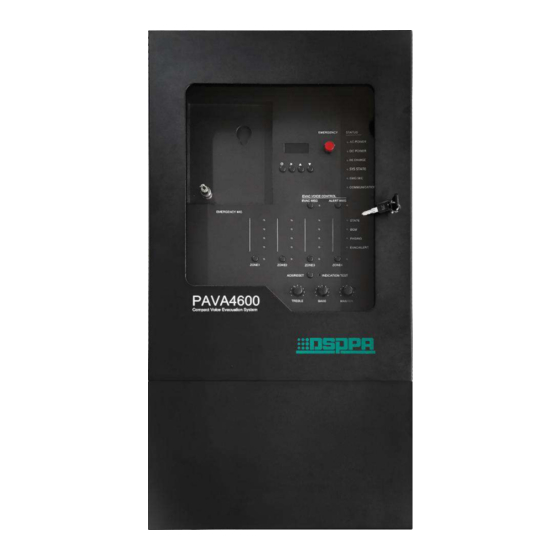

4-Zone Compact Voice Evacuation System Host
Description
PAVA4600 is an integrated voice evacuation system host. With a built-in 600W digital amplifier, it can not
only send out warning and alarm, but also support handhold microphone to make voice evacuation. It can
manage emergency alarming, fire alarm announcement and background music playing for 4 zones. It is an
ideal application for small shopping malls, office building and sports venues.
Features
 Digital display screen to display time, system status, and Fireman MIC status;
 One-key alarm and two kinds of editable EVAC messages; EMC microphone for on-site voice evacuation;
 With LED light for indicating system connection status and fault status;
 Support speaker line detection (light load, over load and short circuit);
 LED display to indicate the type of audio source of the current signal;
 2 aux input interface, 1 Fireman MIC input, support offline detection; each paging record is
automatically saved to SD card;
 Support AC power supply and 24V battery power supply; support automatically and seamlessly identify
export@dsppa.com
/
www.dsppatech.com
PAVA4600
The specifications will be subject to change without prior notice.
Copyright © Guangzhou DSPPA Audio Co., Ltd. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAVA4600 and is the answer not in the manual?

Questions and answers

Related Manuals for DSPPA PAVA4600

Summary of Contents for DSPPA PAVA4600

  • Page 1 4-Zone Compact Voice Evacuation System Host Description PAVA4600 is an integrated voice evacuation system host. With a built-in 600W digital amplifier, it can not only send out warning and alarm, but also support handhold microphone to make voice evacuation. It can manage emergency alarming, fire alarm announcement and background music playing for 4 zones.

  • Page 2: Specifications

     4 input dry contacts, which can be integrated with the third-party system (such as the fire alarm system) through the input of dry nodes;  2-bit network cable interface, used to connect PAVA4400FM fireman microphone and PAVA4600 extender;  It has testing function keys with LED.

  • Page 3: Front/Rear Panel

     Exit emergency mode: In emergency mode, press this button to exit the emergency mode and stop playing EVAC voice export@dsppa.com www.dsppatech.com The specifications will be subject to change without prior notice. Copyright © Guangzhou DSPPA Audio Co., Ltd. All rights reserved.
  • Page 4 Note: You can check the execution time and the mode in the “LOG” of PAVA4600 no matter you enter or exit the emergency mode. 8. Main Power LED Indicator  Green -- the AC power supply of the device is normal.

  • Page 5: Rear Panel

    100V 0V COM1 COM2 Note: Please conduct speaker circuit modeling at least once after connection, and long press ACK/RESET export@dsppa.com www.dsppatech.com The specifications will be subject to change without prior notice. Copyright © Guangzhou DSPPA Audio Co., Ltd. All rights reserved.
  • Page 6  In normal state, there is no output. When using and pressing down the fireman microphone or the PTT handheld microphone of PAVA4600, the four ports output 24V signals. When the input dry contact 1 or 2 or 3 or 4 detects a short circuit, the four ports also output 24V signals.

  • Page 7: System Diagram

    System Diagram export@dsppa.com www.dsppatech.com The specifications will be subject to change without prior notice. Copyright © Guangzhou DSPPA Audio Co., Ltd. All rights reserved.
