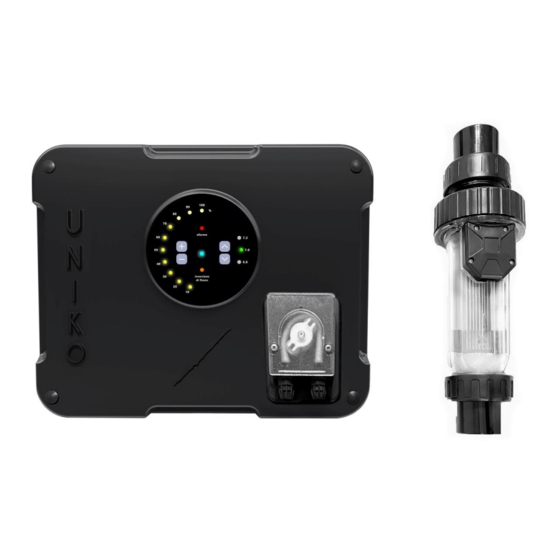

- Page 1 UNIKO pag. 1 di 16 CLORINATORE UNIKO PRO MANUALE D’USO E INSTALLAZIONE UNIKO PRO CHLORINATOR - INSTALLATION AND USE MANUAL Leggere attentamente e conservare per futura consultazione Read carefully and keep for future reference www. cpa-piscine.it — ver. 02 240612...
-
Page 2: Table Of Contents
OPERATING CONDITIONS FOR THE CORRECT OPERATION OF THE DEVICE Per ottenere le migliori prestazioni e funzionamento del generatore di cloro da soluzione salina UNIKO, dovrà essere mantenuto nell’acqua della piscina il seguente equilibrio chimico. www. cpa-piscine.it — ver. 02 240612... - Page 3 "closed cover" contact on the main board of the UNIKO, see pp. “6” CPA srl is not responsible for any problems or damage to things and/or people caused by failure to comply with the previous safety instructions.
-
Page 4: Caratteristiche Tecniche
Chlorine production: from 10% to 100% of the cycle time (default value 80%) Polarity Reversal Time: Programmable, in 2 hour increments (default value 6 hours) CODICE DESCRIZIONE PRODUZIONE 1040019 UNIKO PRO 50 10 g/h + dosaggio pH 1040020 UNIKO PRO 75 15 g/h + dosaggio pH 1040021... - Page 5 Before commissioning the electrolytic generator or during operations to replenish the salt in the pool water, check that the electrical power supply to the device is disconnected to avoid overloads and/or damage to the plates of the electrolytic cell or to the power supply of the device. www. cpa-piscine.it — ver. 02 240612...
-
Page 6: Pannello Di Controllo
Allows you to select the pH set point value STATO Clorinatore Led RGB Led Inversione Led Allarme Chlorinator state RGB Led Inversion led Alarm led Bianco Stand-By White Clorazione Verde Chlorination Green Inversione di polarità Verde Polarity inversion Green Tapparella Cover Blue www. cpa-piscine.it — ver. 02 240612... -
Page 7: Funzionamento
At the end of the set working hours, the polarity of the voltage on the electrodes is automatically inverted: the polarity inversion is displayed when the "polarity inversion" LED turns on. Before inverting the polarity, the generator carries out a rest cycle for a time between 1 and 10 minutes. www. cpa-piscine.it — ver. 02 240612... -
Page 8: Procedure E Impostazioni
When the automatic cover is closed, the percentage of production is displayed via the 10-100% LEDs and the RGB LED lights up Blue Funzionamento controllo pH (solo per modello UNIKO PRO) L’elaborazione del controllo del pH avviene con il metodo Proporzionale (PWM). -
Page 9: Procedure Di Taratura Ph E Selezione Setpoint Ph
If no key is pressed for 8 seconds, the procedure is canceled and the value remains at the previously set set point. In the setting procedure, pressing the + and – keys switches to the Off state (LEDs off). In this state, confirming by pressing the Set key disables pH dosing. www. cpa-piscine.it — ver. 02 240612... -
Page 10: Parametri Di Default D
- gli allarmi del clorinatore sono prioritari sugli allarmi relativi alla gestione del pH - the display of alarms has priority over the display of the chlorinator status - the chlorinator alarms have priority over the alarms relating to pH management www. cpa-piscine.it — ver. 02 240612... - Page 11 The alarm is displayed via the flashing “Alarm” LED. The alarm is reset by: - pH value less than or equal to the Setpoint - Chlorine generator on stand-by - pH dosing off - Changing the Setpoint - Active pH level alarm www. cpa-piscine.it — ver. 02 240612...
-
Page 12: Maintenance
Fare sempre riferimento alla scheda di sicurezza quando si tratta di sostanze chimiche pericolose. Durante la miscelazione, aggiungere acido all’acqua, ma MAI acqua all’acido. When working with acids the use of eye protection, a mask and rubber gloves are strongly recommended www. cpa-piscine.it — ver. 02 240612... - Page 13 Make sure the silicone seal is still in place on the inside circumference of the electrode cap. Reinsert the electrode into the housing and screw (clockwise) the locking nut. Reconnect the electrode cable to the electrode terminals and turn on the chlorine generator. www. cpa-piscine.it — ver. 02 240612...
-
Page 14: Board Setup
Per consentire la comunicazione via ModBus tra Uniko e Merlino configurare il dipswitch S1 in posizione On (in alto). To allow communication via ModBus between Uniko and Merlino, set the dipswitch S1 as On (high). www. cpa-piscine.it — ver. 02 240612... -
Page 15: Electrical Characteristics
- Flow: normally open input that can be driven by a voltage-free contact or by a capacitive type sensor powered by +12 Vdc. - Cover: normally open input tnat can be driven by a voltage-free contact or NPN transistor. www. cpa-piscine.it — ver. 02 240612... - Page 16 Cover contact input NOTE − CPA srl esclude ogni responsabilità per il mancato rispetto delle vigenti norme di sicurezza per i singoli settori tecnici interessati dal presente documento. − Le informazioni contenute nel presente manuale possono variare a discrezione del redigente, senza preavviso, contestualmente alle modifiche del prodotto in oggetto al presente documento: sarà...
