Summary of Contents for FA EASEL

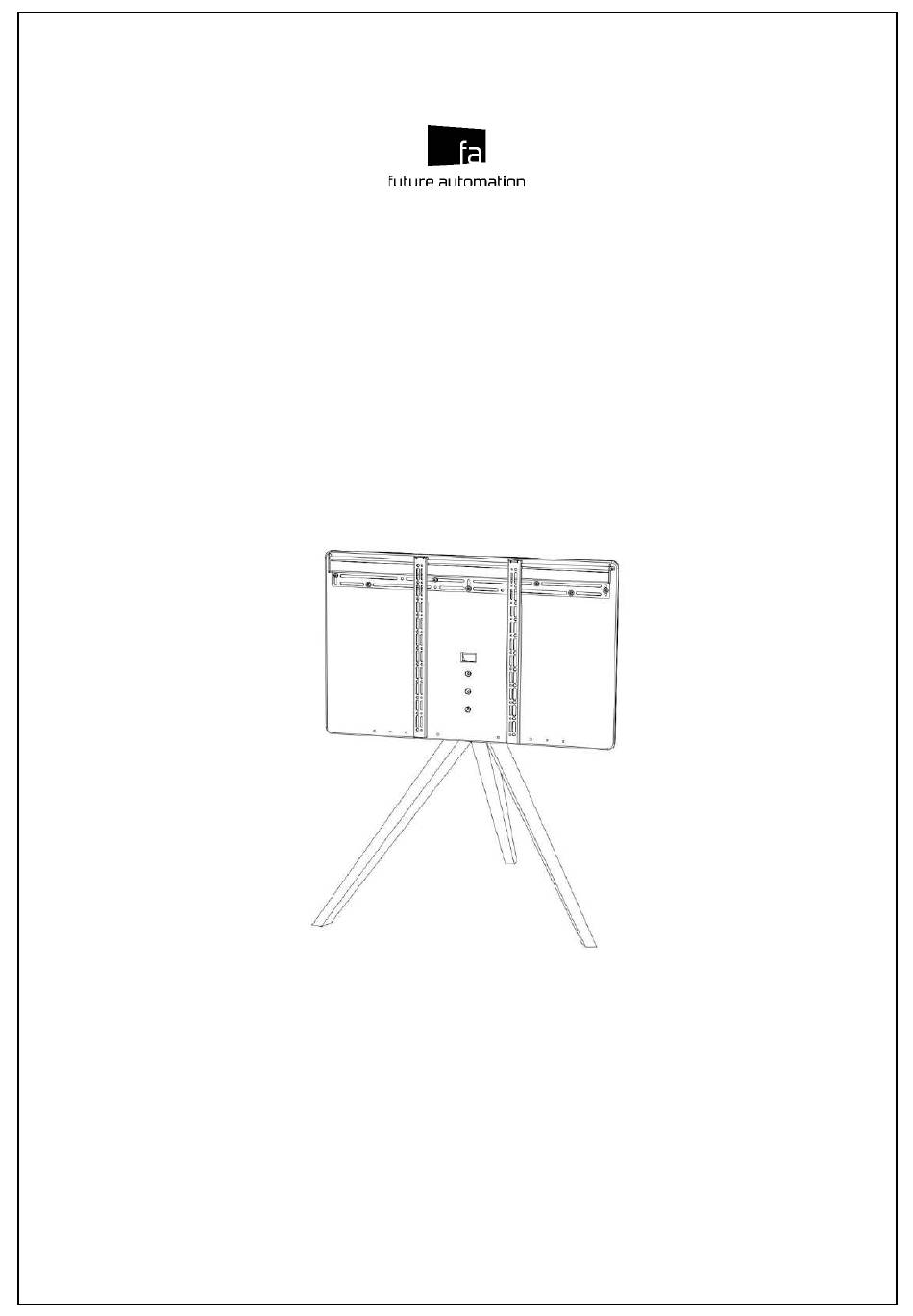

- Page 1 EASEL SOLID WOOD TV STAND INSTALLATION INSTRUCTIONS ISSUE 001...
-
Page 3: Safety Disclaimer
SAFETY DISCLAIMER IMPORTANT SAFETY INSTRUCTIONS BELOW WARNING: Failure to provide adequate terrain for this product, can result in personal injury or damage to the equipment. It is the installer’s responsibility to ensure the environment to which the mechanism is situated in is suitable. WARNING: Do not exceed the weight capacity for this product. -
Page 4: Product Warranty & Risk Assessment
PRODUCT WARRANTY & RISK ASSESSMENT WARRANTY INFORMATION WARNING - The warranty offered for this product shall be annulled if the product is used improperly or in a way that is in breach of our Terms of Service. Future Automation provides warranty for the mechanism you purchased for the period of 24 months from the date of purchase, provided that it isn’t used for unintended purposes. - Page 5 One copy of the Service History Form must be held by the customer (along with the Warranty Sheet) and a duplicate copy must be held by the approved Future Automation dealer that performed the service. Missing and/or mismatching documents may delay or invalidate warranty claims. Additional Service History Forms can be found on the Future Automation website for further yearly services.
-
Page 6: Table Of Contents
GUIDE CONTENTS SAFETY DISCLAIMER PRODUCT WARRANTY & RISK ASSESSMENT GUIDE CONTENTS PACKAGE CONTENTS BRACKET ASSEMBLY SCREEN MOUNTING CABLE ROUTING SPEAKER ADDITION... -
Page 7: Package Contents
PACKAGE CONTENTS 1 MOUNT 3 ASSEMBLY PACK 1.1 - SCREEN PLATE - 2X LEVELLING BOLTS 1.2 - MAIN LEG - 3X M8 COUTERSINK BOLTS 1.3 - LEFT LEG - 7X M6 X 16MM BUTTON HEAD BOLTS 1.4 - RIGHT LEG - 7X M6 WASHERS - 2X STAND OFFS 1.5 - MAIN LEG CAP... -
Page 8: Bracket Assembly
BRACKET ASSEMBLY Glue the 4 biscuits into the main leg. • Ensure a suitable amount of glue is • placed into the biscuit slots - around a penny size amount. Ensuring biscuit is straight, firmly push • into slot. One leg at a time, glue the left-side •... - Page 9 Using the M8 x 70mm connector bolt and • corresponding barrel nut, bolt through the central hole on each leg. Holding the nut securely in place with one Alan key, • tighten up the opposing bolt using another Alan key. Use the Derlin cap to cover the hole for a neat finish.
- Page 10 Using the provided button head bolts and washers, fix the • wall plate to the screen plate through the corresponding holes and threaded inserts.
-
Page 11: Screen Mounting
FITTING THE SCREEN Lay the screen face down on a padded surface and place the Screen • Uprights onto the screens four mount holes, making sure the hooks at the top of the Screen Uprights are towards the top edge of the screen. Secure the Screen Uprights to the back of the screen, using the bolts and •... - Page 12 If height adjustment is needed, remove the screen and adjust the • position of the uprights on the back before refitting to the wall plate. Secure the screen to the Wall • Plate by sliding the Locking Bar through the holes in the top of the wall plate and the tops of the Screen Uprights.
- Page 13 This spacer helps level the screen and • keep the screen secure.
-
Page 14: Cable Routing
CABLE ROUTING For a neat finish, cables • from the screen should be fed through the hole in the screen plate. The cable follows from • behind the screen plate, down the hollow channel in the main leg - visible once leg cap is removed. - Page 15 Once in place, replace the • leg cap. The leg cap has magnets • that correspond with the cable brackets to ensure it stays in place. The TV cable can then feed out the aperture at the bottom on the •...
-
Page 16: Speaker Addition
SPEAKER ADDITION To add a speaker onto the TV mount, a USM can be added. When adding the screen mount arms onto your chosen screen, • shown in step 1 of the screen addition, firstly mount the USM onto the screen. Tighten up the bolts through the screen uprights, through the •... - Page 17 NOTES: ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………….
- Page 18 NORTH AMERICAN OFFICE EUROPEAN OFFICE Address: Address: Enterprise Park Unit 6-8 127 Venture Drive Brunel Road Dover Bedford Bedfordshire 03820 MK41 9TG Phone: Phone: +44 (0) 1438 833577 +1 (603) 742 9181 Email: info@futureautomation.co.uk Email: info@futureautomation.net Office Hours: Office Hours: Mon - Fri 8:00 to 17:30 GMT Mon - Fri 7:00 to 17:00 EST Saturday &...
