S Y S T E M S
Integrating a Datapath VSN series wall controller with Mira Connect™
Datapath VSN series wall controllers running WallControl 10 can be controlled with Mira Connect™, Aveo Systems'® smart
control appliance.
This integration guide provides detailed steps for configuring Mira Connect (using
series wall controller.
Datapath VSN video wall controllers and WallControl 10 can be controlled directly over Ethernet.

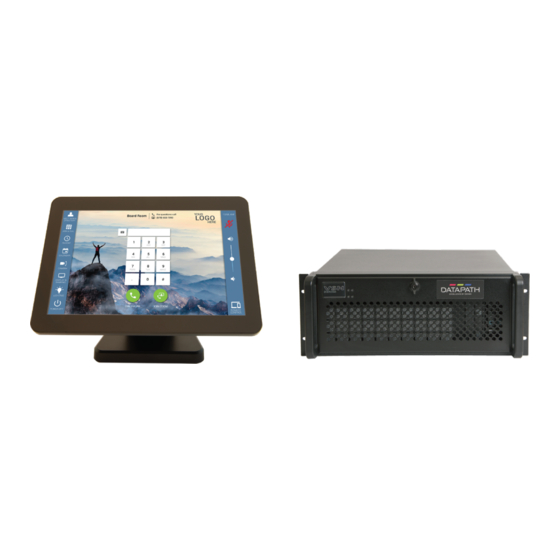

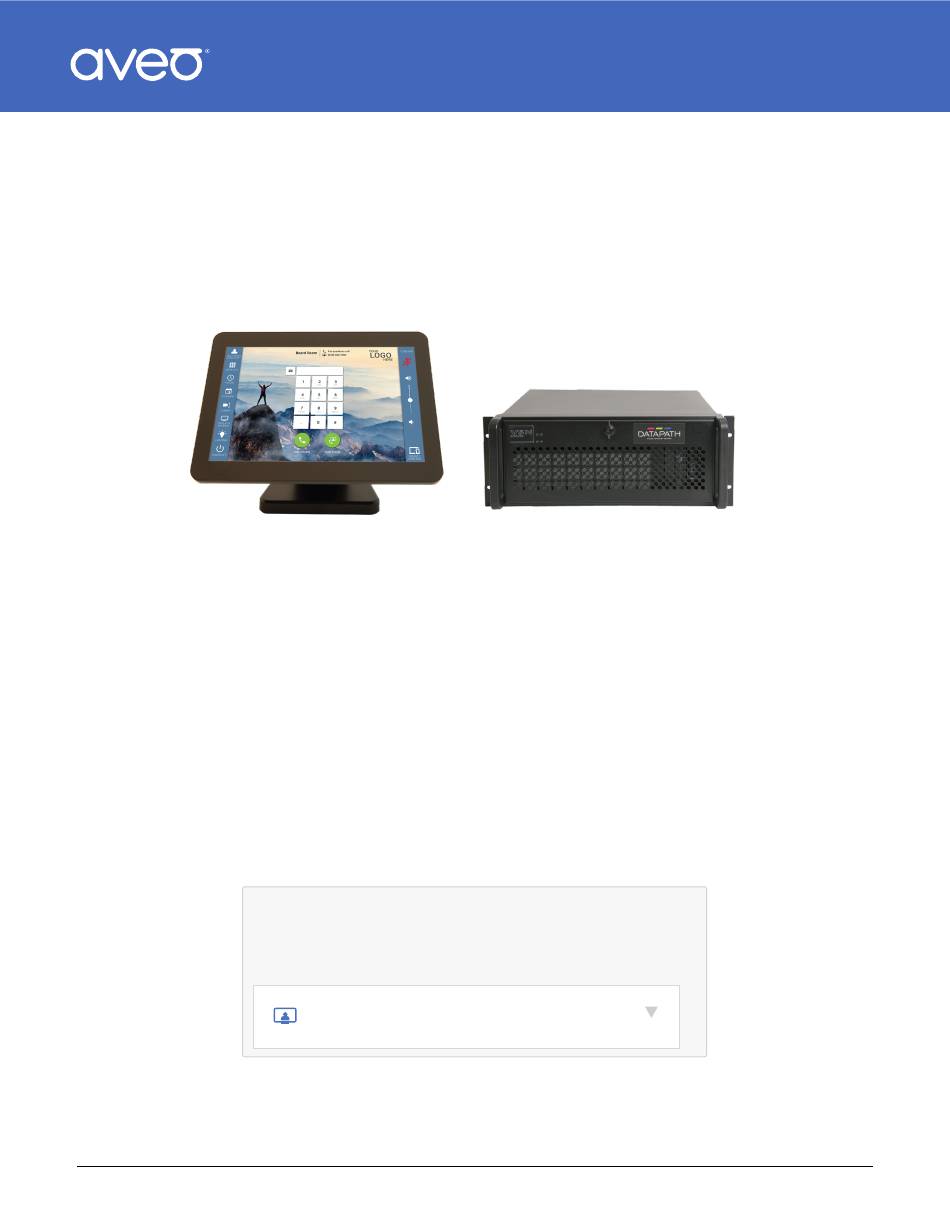

Figure 1:
The Mira Connect AV control system controls thousands of devices, including the Datapath VSN series wall
controller.
Functionality Supported
Mira Connect supports controlling multiple independent video walls and for recalling layouts those video walls. Each video
wall defined in the Wall Control 10 software can be controlled as a separate display tab on Mira Connect.
Once the Datapath VSN series wall controller has been configured with the
automatically detects the video walls, and for each video wall, Mira Connect discovers the layouts.
Mira Connect's user interface is created by mapping video walls to displays and enabling the desired layouts on each video
wall on the Datapath VSN series wall controller as described in this guide. Each video wall behaves like a display and the
layouts for the video wall are selected from the pull‑down list of layouts for each video wall.
Figure 2:
Each video wall appears as a display tab on Mira Connect and is labeled with the display name entered in Mira
Portal. Layouts that have been defined using the
Aveo Systems, Inc. • 4455 Lower Roswell Road • #681593 • Marietta, GA 30068
Phone: +1.678.653.7090 • Email: sales@aveosystems.com •
Main Wall
Select source:
SECURITY CAMERAS
Main Floor
Wall Control 10 software
aveosystems.com
Datapath VSN series wall controller
Mira
Portal) to control the Datapath VSN
Wall Control 10
are selectable from the pull down list.
1
Copyright © Aveo Systems, Inc. All rights reserved.
Mira Connect Integration Guide for
software, Mira Connect

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Datapath VSN Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Aveo Systems Datapath VSN Series

  • Page 1 Mira Connect’s user interface is created by mapping video walls to displays and enabling the desired layouts on each video wall on the Datapath VSN series wall controller as described in this guide. Each video wall behaves like a display and the layouts for the video wall are selected from the pull‑down list of layouts for each video wall.

  • Page 2: Integration Steps

    S Y S T E M S Integration Steps To integrate a Datapath VSN series wall controller with Mira Connect, follow these steps as detailed in the following sections: Configure the Datapath VSN series wall controller Add a room to Mira Portal...
  • Page 3 Figure 5: Enable the Swagger UI to allow Mira Connect to connect to, and to control, the Datapath VSN series wall controller. Once the Datapath VSN series wall controller is configured and the Swagger API enabled, follow these steps in Mira Portal.
  • Page 4 The following figures show the pairing steps that are displayed on the touchscreen when using Mira Connect appliances. Aveo Systems, Inc. • 4455 Lower Roswell Road • #681593 • Marietta, GA 30068 Copyright © Aveo Systems, Inc. All rights reserved.
  • Page 5 Once added to the room, select the desired model (if there is a model option), and enter the IP address of the device. If you are configuring Mira Connect before you have a Datapath VSN series wall controller, click ‘Simulate equipment’ to continue.
  • Page 6 Figure 8: Add equipment to the room by selecting Equipment tab and then clicking Add. Aveo Systems, Inc. • 4455 Lower Roswell Road • #681593 • Marietta, GA 30068 Copyright © Aveo Systems, Inc. All rights reserved. Phone: +1.678.653.7090 • Email: sales@aveosystems.com •...

  • Page 7: Add Equipment

    Figure 9: Select the desired product from the list in Mira Portal, scroll as necessary to find the product. Aveo Systems, Inc. • 4455 Lower Roswell Road • #681593 • Marietta, GA 30068 Copyright © Aveo Systems, Inc. All rights reserved.
  • Page 8 Click the “Add Equipment” or “Update Equipment” button to save the settings. Mira Portal will show the equipment status as a green circle with a check mark once the Datapath VSN series wall controller has been confirmed at the specified IP address. A firmware version will be shown if the device reports its firmware version.
  • Page 9 Wall Control 10 software. To add video walls and layouts to Mira Connect, edit the settings for the Datapath VSN series wall controller in Mira Portal by clicking the three‑dots icon to the right off the device’s name and navigate to the Video Inputs tab.
  • Page 10 To add a virtual display, click ADD from the equipment tab and select a virtual display. Aveo Systems, Inc. • 4455 Lower Roswell Road • #681593 • Marietta, GA 30068 Copyright © Aveo Systems, Inc. All rights reserved. Phone: +1.678.653.7090 • Email: sales@aveosystems.com •...
  • Page 11 Click ‘Simulate Equipment’ for the virtual display. This will add an IP address automatically. Navigate to the Video Inputs tab. Aveo Systems, Inc. • 4455 Lower Roswell Road • #681593 • Marietta, GA 30068 Copyright © Aveo Systems, Inc. All rights reserved.
  • Page 12 Enable the input on the Virtual display, and click Use Sources Connected to Other Equipment… as shown in the following figure. Aveo Systems, Inc. • 4455 Lower Roswell Road • #681593 • Marietta, GA 30068 Copyright © Aveo Systems, Inc. All rights reserved.
  • Page 13 Next, select the Datapath VSN series wall controller as the external switcher and then select the desired video wall (Blueprint, in this example) as shown in the following figure. Blueprint is the name of a default video wall created by the Wall Control 10 software.
  • Page 14 The user interface on Mira Connect will appear as shown in the following figure. Selecting a layout will automatically cause the Datapath VSN series wall controller to switch layouts to the selected video wall. If controlling a real display, instead of the virtual dispdlay, selecting a layout will also ensure the display is powered on and set to specified input.

  • Page 15: Select Source

    Network Connection The Datapath VSN series wall controller is controlled over HTTP using port 19821 for system control and additional ports as necessary based on the number of video walls created. Mira Connect must have a network route to the device to control it.

  • Page 16: Troubleshooting

    If Mira Connect is not able to connect to the Datapath VSN series wall controller: • Confirm that Mira Connect and the Datapath VSN series wall controller have IP addresses that are on the same subnet or are reachable on the same subnet.
