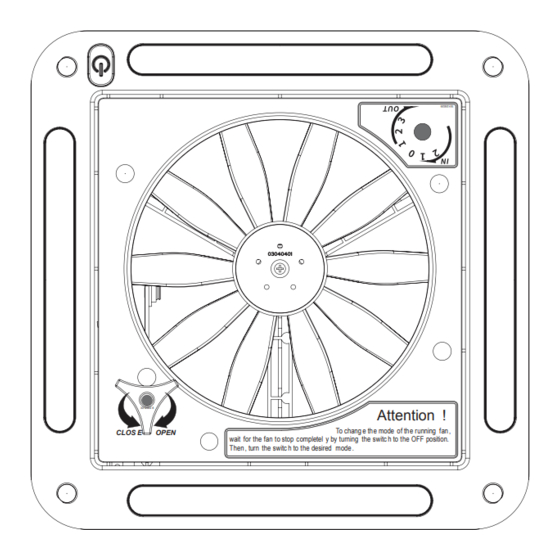

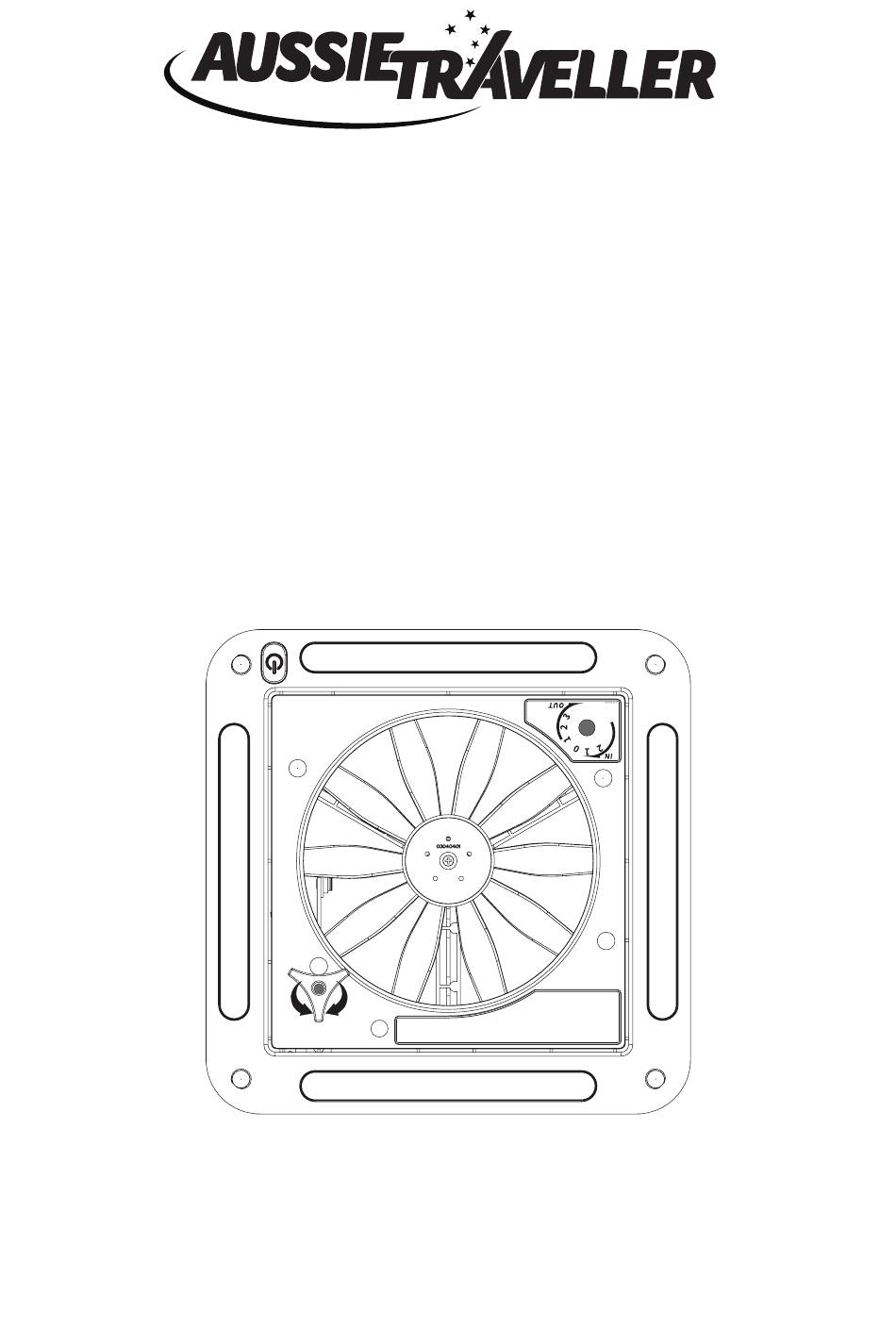

- Page 1 MANUAL AIR VENT USER MANUAL 3012002 8 Attention ! To chang e the mode of the running fan, CLOS E OPEN wait for the fan to stop completel y by turning the switc h to the OFF position. Then , turn the switc h to the desired mode .
-
Page 2: Product Introduction
PRODUCT INTRODUCTION The Aussie Traveller Manual Air Vent is a high-quality model air vent for your caravan or RV that features 3 speed fans and is available in white or smoke black lid options, with or without LED lights to suit all RVs. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS WARNING: Please read and understand all safety precautions, installation instructions, and operating instructions before operating this appliance. Failure to properly follow the guidelines established here could result in severe injury, fire or even death. Keep this manual for future reference. •... -
Page 4: Installation
INSTALLATION NOTE: Make sure appliance is disconnected from power supply before starting the installation process. STEP 1: This fan requires a 14” by 14” (360 × 360mm) roof opening. Place the mounting flange into the roof opening (with the fan lid opening facing the rear of the RV) and trace the outline of the mounting flange with a pencil. (You will need to be on the roof of the RV to install the mounting flange.) If replacing a vent fan, make sure when removing old vent fan to remove all old sealant. - Page 5 INSTALLATION STEP 7: Using the electrical wiring provided, connect the fan’s power wires to the RV’s 12 V power supply. NOTE: Red wire must be connected to the vehicle’s positive terminal while the black wire is connected to the negative terminal. The blue wire connects to the brake control system of the vehicle. STEP 8: Measure the thickness of the RV roof.
-
Page 6: Operation
OPERATION OPERATING FAN COVER LID: NOTE: Do not use excessive force when operating knob. 1. Pull handle to unlock fan lid. 2. Rotate handle clockwise to open fan lid. 3. Rotate handle counter-clockwise to close fan lid. 4. Push handle in to lock fan lid in its current position. IN/OUT KNOB FUNCTIONS: Use the fan’s IN/OUT knob to reverse the direction of the fan. -
Page 7: Warranty Statement
Warranty will commence at the time the final retail customer makes payment for the Product to the wholesale purchaser. 3. If the Product is purchased directly from Aussie Traveller for use by final retail customer and not to be on sold in any way, the Warranty will commence at the time of the original purchase. - Page 8 If such inspection and testing find no defect in the Product, the final retail customer must pay Aussie Traveller’s usual costs of service work and testing. The final retail customer must bear the cost of the transport of the Product to and from Aussie Traveller or the authorised repair agent, and all insurance of the Product.
