CONGRATULATIONS – You've purchased a fine item from Target.
Our clear, easy to follow, step by step instructions will guide you through the project
from start to finish. Feel confident that this will be a fun and rewarding project. The
final product will be a quality piece that will go together smoothly and give years of
enjoyment.
If you have any questions just call 866-578-6569. Please refer to the style number
and DPCI code above when calling.
.

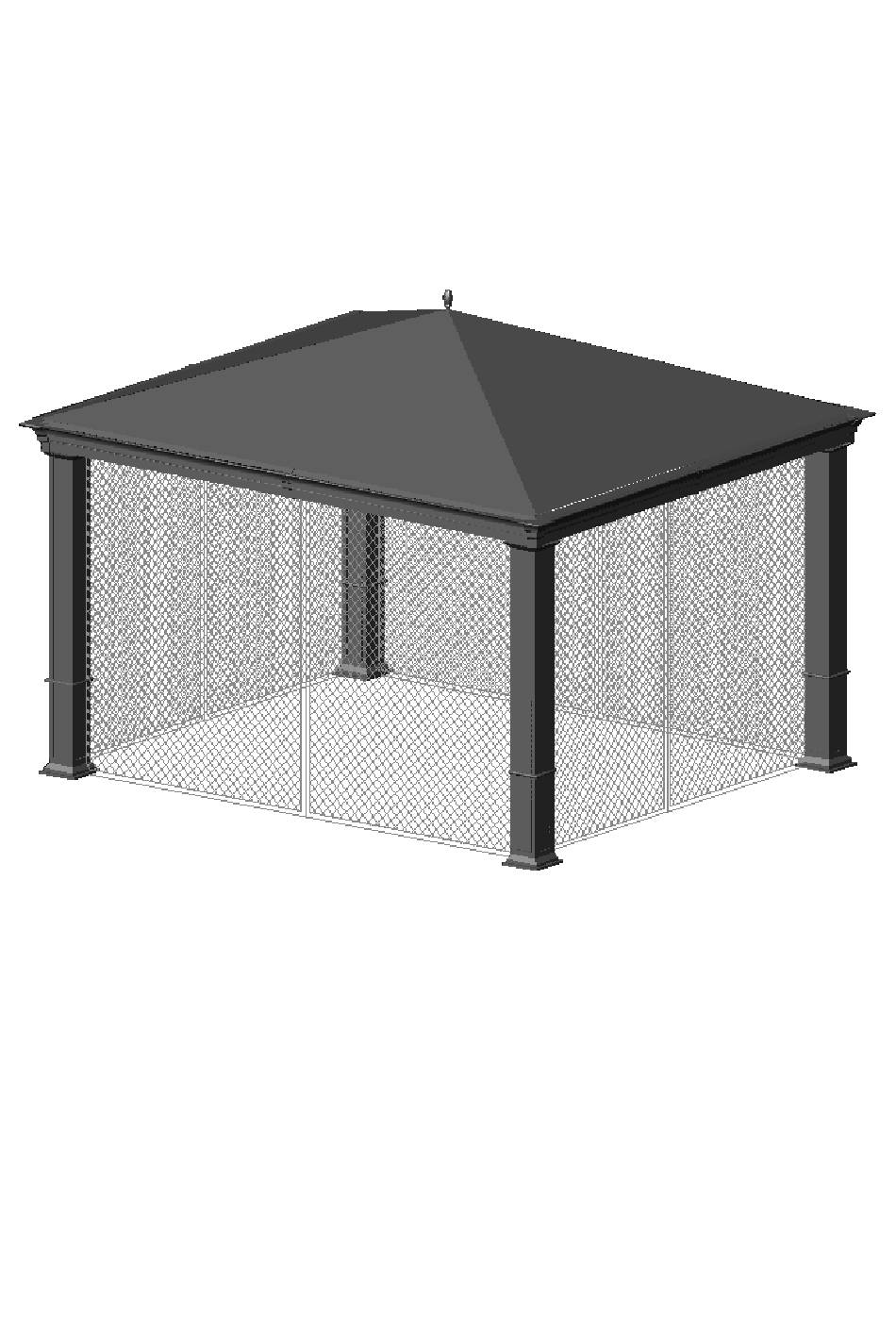

Tiverton Gazebo
Style # L-GZ025PST
DPCI # 009-05-0190

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tiverton L-GZ025PST and is the answer not in the manual?

Questions and answers

Summary of Contents for Targetti Tiverton L-GZ025PST

  • Page 1 Tiverton Gazebo Style # L-GZ025PST DPCI # 009-05-0190 CONGRATULATIONS – You’ve purchased a fine item from Target. Our clear, easy to follow, step by step instructions will guide you through the project from start to finish. Feel confident that this will be a fun and rewarding project. The final product will be a quality piece that will go together smoothly and give years of enjoyment.

  • Page 2: Item Identification

    Item Identification For ease of identification all parts are labeled to correspond to the Step number in which the part is used.

  • Page 3: Part List

    Part List Long gutter （ left ） (with 2 pieces pre-assembled hanging bar) Long gutter （ right ） (with 2 pieces pre-assembled hanging bar and middle connector) Short gutter （ left ） (with 2 pieces pre-assembled hanging bar and corner decoration) Short gutter （...

  • Page 4: Hardware Identification

    ease identification Hardware Identification hardware is organized into separate Hardware packs. Hardware Pack 1 (AA) M6×15 bolt 12 pieces (TBZ00106015HQ) (BB) M6 Big flat washer 36 pieces (TBZ10806HQ) (CC) M6×15 screw 16 pieces (TBZ00306015HQ) (DD) M6×25 screw 8 pieces (TBZ00306025HQ) 40 pieces (TT) Mosquito Net Hook 1 piece...
  • Page 5 STEP #1 Gutter (X12) AA (X36) BB (X16) CC (X8)DD (X1)WW ① Fit TT(mosquito net hook) into the pre-assembled gutter leader, Loosen the bolts in 1D a little to arrange the pre drilled holes, and secure 1C and the pre-assembled connector in 1D together with bolts AA and washers BB.，then secure all bolts as Fig.1 shows;...
  • Page 6 STEP #2 ① As shown in Fig.4, Fig.5, over insert those top bars into connectors (e.g. NO.2)（do not tie the spring to the holes of connectors）; ② Connect the other end of top bar with top connector (2B), as in Fig.6, then pull out the bars from it (2B) to make sure the spring attached to the holes in the connector, as positioned NO.3.
  • Page 7 STEP #3 Post and Top (X24) CC (X16) BB (X16) GG Arrange the 4 posts. (Pay attention to the position and direction of each post, make sure of consistency as the arrows indicate in above illustrations; Place the top (including canopy put on in above step) onto it. Align pre drilled holes and screw the frame, posts and top together.
  • Page 8 WARNING 1. When assembling and using this product, basic safety precautions should always be followed to reduce the risk of personal injury and damage to equipment. Please read all instructions before assembly and use. 2. Some parts may contain sharp edges, wear protective gloves if necessary. At least two or more people are recommended for safe assembly.
  • Page 9 Care & Maintenance Our steel components for garden accessories and furniture are treated with rust inhibiting paint that protects it from rusting. However, due to the nature of steel, surface oxidation (rusting) will occur once these protective coatings are scratched. This is a natural process and is not a defect! To minimize this condition, we recommend care when assembling &...
