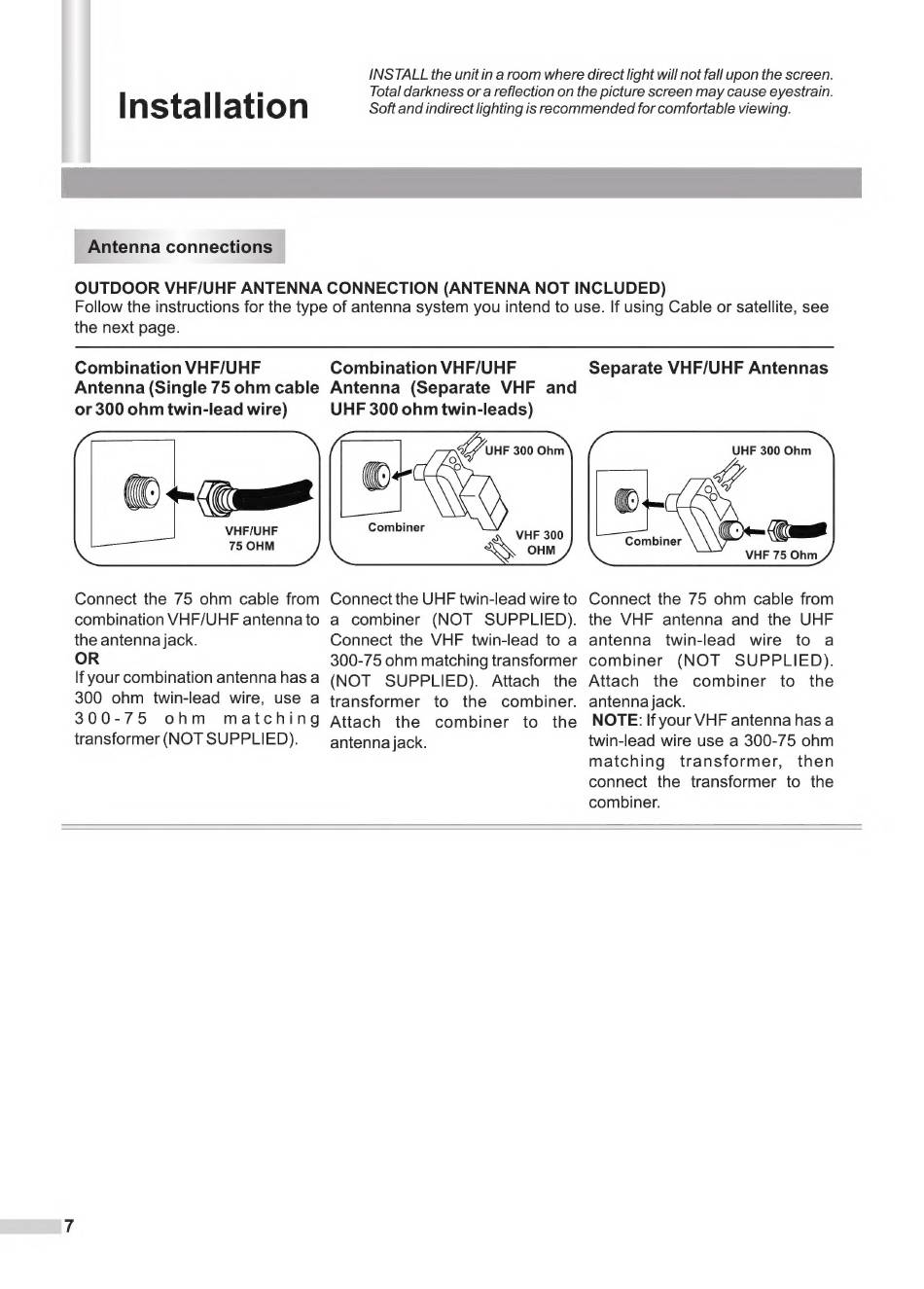

Installation
Antenna connections
INSTALL the unit in a room where direct light will not fall upon the screen.
Total darkness or a reflection on the picture screen may cause eyestrain.
Soft and indirect lighting is recommended for comfortable viewing.
OUTDOOR VHF/UHF ANTENNA CONNECTION (ANTENNA NOT INCLUDED)
Follow the instructions for the type of antenna system you intend to use. If using Cable or satellite, see
the next page.
Combination VHF/UHF Combination VHF/UHF
Antenna (Single 75 ohm cable Antenna (Separate VHF and
or 300 ohm twin-lead wire)
VHF/UHF
75 OHM
UHF 300 ohm twin-leads)
Connect the 75 ohm cable from Connect the UHF twin-lead wire to
combination VHF/UHF antennato a combiner (NOT SUPPLIED).
the antenna jack.
OR
Connect the VHF twin-lead to a
300-75 ohm matching transformer
If your combination antennahasa (NOT SUPPLIED). Attach the
300 ohm twin-lead wire, use a transformer to the combiner.
300-75 ohm matching Attach the combiner to the
transformer (NOT SUPPLIED).
antenna jack.
Separate VHF/UHF Antennas
UHF 300 Ohm
VHF 75 Ohm
Connect the 75 ohm cable from
the VHF antenna and the UHF
antenna twin-lead wire to a
combiner (NOT SUPPLIED).
Attach the combiner to the
antenna jack.
NOTE: If your VHF antenna has a
twin-lead wire use a 300-75 ohm
matching transformer, then
connect the transformer to the
combiner.
