PLACEMENT
Proper placement is essential for getting the ideal, intended response and
imaging from any studio monitor. Of course, not every room and setup is
the same, but these simple steps will ensure that your source material is
being heard as accurately as possible.
1. Left and right: Ensure that the left speaker is placed on the left side,
and the right speaker is placed on the right side. This is important for cor-
rect phase and imaging. The CLA-10 Passive can be used vertically but be
aware that the left speaker and right speaker should be swapped in this
case, retaining the tweeters on the outside orientation.

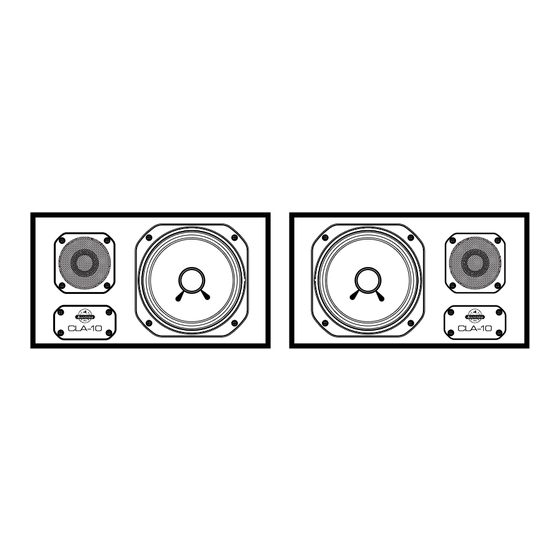

Horizontal Orientation
Vertical Orientation
2. Room considerations: Place your monitors away from walls and cor-
ners. Ideally, they should be centered in your room. Because this isn't al-
ways possible, a good rule of thumb is to keep at least 12 inches of space
between the monitors and the back wall, maintaining a symmetrical dis-
tance from the side walls.
3. Height: Posit your monitors at ear-height from your most comfortable
mixing/listening position to make sure you're in the proper sweet spot at
all times.

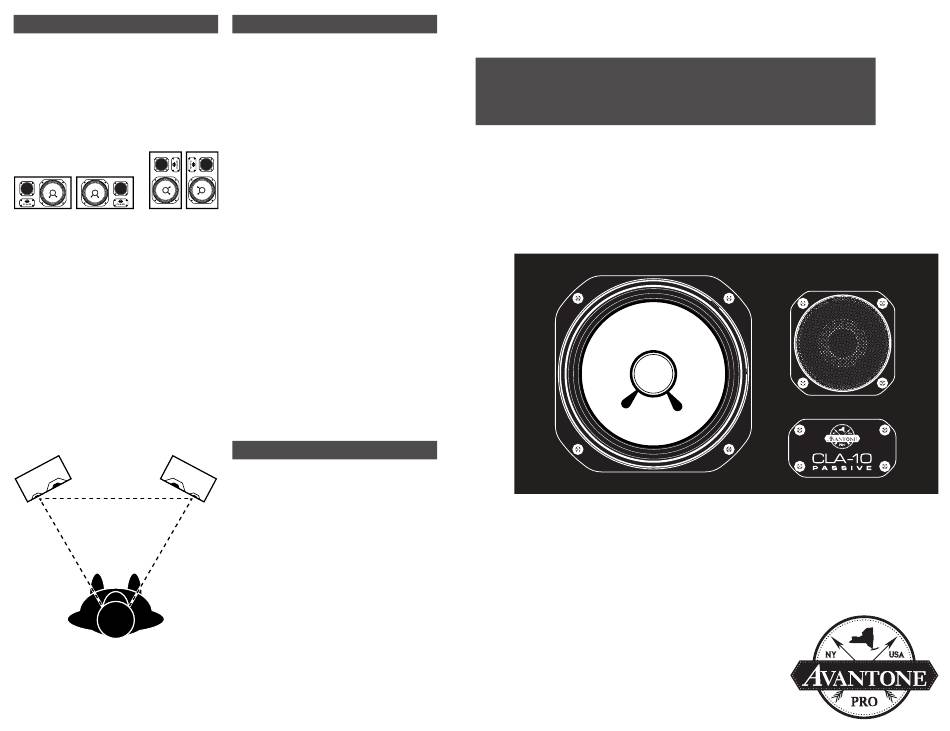

4. Distance and width: From your most comfortable listening position,
create an equilateral triangle from your ears to the monitors, and the
monitors to each other as shown below. Measure the distance between
the tweeter of each speaker, and ensure that your listening position is that
same distance — directly in the center. Finish by rotating each monitor
inward towards your listening position. It's best to ensure that each mon-
itor has been rotated by the same amount. This may be an old-school
method, but it's a method of proven science to help any listener hear the
intended stereo image.
©2024 Avantone Pro. All rights reserved.
www.avantonepro.com
Designed in USA. Made in China.
RAD Distribution | 180 Carpenter Ave. Middletown, NY 10940
ADVANCED ADJUSTMENT
Calibration: A decibel meter (or even a decibel meter app on your phone) is
very helpful while adjusting level. This is strongly recommended to ensure
that your stereo image between a pair of monitors is accurate. Note that
each monitor needs to be individually calibrated.
1. Set your meter to C-weighted monitoring with slow response.
2. Place the decibel meter at your listening position — right where
your ears go.
3. Power off your monitor amplifier and disconnect the right mon-
itor.
4. On your monitor amplifier, turn the monitor gain to 0 for both
channels and power the amp on.
5. Set your source hardware to unity (0 dB).
6. Set your pink noise generator to -20 dB.
7. Slowly bring up the left channel gain on the power amplifier until
the decibel meter reads 80 dB.
8. Power off your amplifier and disconnect the left monitor.
9. Connect the right monitor and power on the amplifier.
10. Slowly bring up the right channel gain on the power amplifier
until the decibel meter reads 80dB.
11. Power off your amplifier and reconnect the left monitor.
12. Power the amplifier back on. You're done!
NOTE: If you are calibrating multiple pairs, then repeat the same process for
each speaker.
SPECIFICATIONS
System Type:
Full-range two-way stereo pair
Ġ
Frequency Response:
60 Hz - 20,000 Hz (Accessible musical
Ġ
range)
Power Capacity
Program – 60 W, Maximum – 120 W
Ġ
Sensitivity:
90 dB SPL (1 W, 1 m on axis)
Ġ
LF Driver:
AV10-MLF 18 cm cone
Ġ
HF Driver:
AV10-MHF 3.5 cm soft dome
Ġ
Cabinet:
Sealed cabinet design, hybrid medi-
Ġ
um-density fiberboard with real wood
veneer
Cabinet Dimensions:
381.5 mm x 215 mm x197.5 mm (15" x
Ġ
8 ½" x 7- ¾ " )
Cabinet Weight:
6.3kg / 13.9 Lbs (each)
Ġ
CLA-10 PASSIVE
PASSIVE STUDIO MONITOR
Revised 03-26-24
