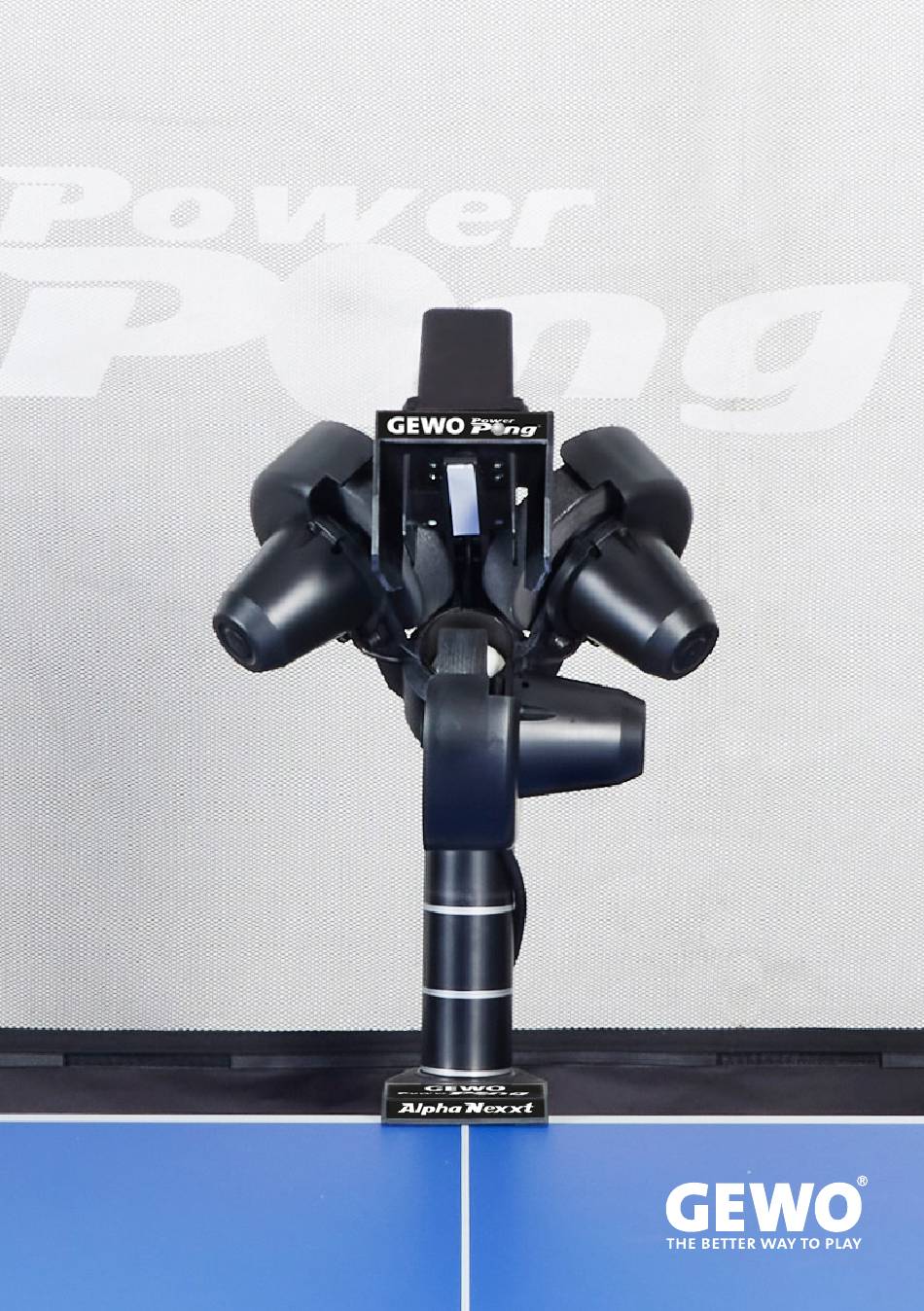

- Page 1 Operating instructions GEWO ALPHA NEXXT Table tennis robot...
- Page 2 • Please read this user manual carefully. • The robot may only be connected to 100 V - 230 V power supplies. • The wheels rotate at high speed. Do not touch them during operation! • Only use the GEWO Alpha Nexxt in dry rooms.
-
Page 3: Table Of Contents
Content 1. Delivery scope & assembly ....................4 2. Operating ..........................7 The Controlboard ........................... 7 Adjusting the head height....................... 8 Starting and centring the robot ....................... 8 Ball settings – Placement, trajectory, speed and spin ..............8 Memory mode – Saving, playing and editing exercises ..............9 Random functions –... -
Page 4: Delivery Scope & Assembly
Robot incl. power supply, power cable and power supply unit (Input: 100~240 V, Output: 24 V), remote control, GEWO Alpha Nexxt Controlboard Other parts included: Allen key (2 and 4 mm) for ejection discs, fitting piece for ejection wheels, replace-... - Page 5 ATTENTION: The GEWO Alpha Nexxt robots are preset for tables with a 25 mm surface. To ensure a good grip and a clean ball ejection even with thinner surfaces, the retaining hooks are equipped with a height adjustment at their upper end. If necessary, turn the adjustment heads upwards enough to com- pensate for the difference in surface compared to the 25 mm of the standard setting.
- Page 6 8. Connect the control box to your robot using the connection cable. Now you can clamp the table bra- cket to your table at a suitable place and hang the control box there. 9. ill at least 50 clean table tennis balls into the ball collection area (picture 10) before you start playing.
-
Page 7: Operating
2. Operating The Controlboard Ball LEDs: A flashing LED indicates which ball is currently selected. Permanently lit LEDs indicate that a corresponding ball is programmed at the court for the selected exercise. Ball placement control: For adjusting the balls placement to the left or right. Flight height button: Adjust the height of the ball ejection. -
Page 8: Adjusting The Head Height
As soon as the control board is connected to the power, the „Ball 1“ LED should start flashing. If you now turn the „Ball/min“ control (15) higher, the GEWO Alpha Nexxt robot will directly start to pull balls to the ejection head. The ball ejection speed can be set between 0 and 100 balls per minute and can be adjusted even during play. -
Page 9: Memory Mode - Saving, Playing And Editing Exercises
The „trajectory“ can be changed using the buttons on the left side (3). To increase or decrease the trajectory, press and hold the respective button. The further down the trajectory is displayed, the flatter the flight curve. Particularly low settings are suitable for impacts. The speed of the ball can be adjusted with the „Speed“... -
Page 10: Random Functions - Scatter Mode And Random Order
Random functions - scatter mode and random order The GEWO Alpha Nexxt provides you with two different random functions to choose from. 1. „rnd“: By tapping the „RND“ button (11) until only the „rnd“ LED is lit up (picture 12) the scatter mode is activated. -
Page 11: Remote Control - Pairing, Operation And Battery Replacement
Remote control - pairing, operation and battery replacement Your GEWO Alpha Nexxt robot also includes the small handy remote control in the shape of a car key. The remote control should be connected directly to your GEWO Alpha Nexxt robot when it is delivered. If you want to recalibrate your remote control, simultaneously tap the two selection buttons <- and ->... -
Page 12: Dismantling
TIP: If you are only taking the GEWO Alpha Nexxt off the table for a short time, you can leave the balls in the collection net and add accessories such as the cable and remote control after this step. -
Page 13: Exercises
4. Exercises 13) Topspin to BH 14) Topspin to FH 15) Topspin to FH/BH 16) Backspin to BH #Topspin #Topspin #Topspin #Backspin 16) Backspin to FH 17) Backspin to 18) Backspin to BH, 19) Backspin to FH, #Backspin BH/FH Topspin to BH Topspin to FH #Backspin #Topspin #Topspin #Backspin... -
Page 14: Maintenance And Repair
2. To guarantee the best possible ejection characteristics and long durability, only use clean balls for your GEWO Alpha Nexxt robot. If you add new balls that are still covered with manufacturing powder, please wash them with warm water and dry them before using them for the first time. -
Page 15: Checking And Adjusting The Wheels
Checking and adjusting the wheels The shooting wheels of the GEWO Alpha Nexxt are designed for a service life of about 1000 hours. As the wheels wear, the distance between the wheels gradually increases, causing the balls to be ejected more inaccurately and unevenly. -
Page 16: Replacing The Wheels
Replacing the wheels After long use, the wheels may be so worn that they can no longer be adjusted. If the wheels no longer provide a clean ball ejection, you should order replacement wheels and replace the wheels. To replace the wheels, proceed as follows. -
Page 17: Technical Data
2 replacement strips are included with your GEWO Alpha Nexxt robot. If you need more replacement strips, please contact a GEWO dealer. - Page 20 GEWO Table Tennis Heidekoppel 26 24558 Henstedt-Ulzburg · Germany Mail: info@gewo-tt.de www.gewo-tt.com /GEWOtabletennis...
