Danaher EAGLE SIGNAL CX300 Mounting Instructions

EAGLE SIGNAL
Electronic Timers
The CX300 is a microprocessor based timer/counter housed in a
standard 15 terminal CYCL-FLEX
removal for programming changes and replacement. Time or count
operation, time range, and the type of start input switch operation are
programmed with 7 miniature rocker switches located inside the unit
housing.
The front panel of the CX300 is a sealed membrane keypad which
provides excellent protection for most industrial environments. The time
or count setpoint is entered using the increment and decrement keys for
each digit position. The SET and ENT keys provide access to the
setpoint, as well as to the front panel programmable software functions.
These programmable functions control the pulse output length, setpoint
to zero/zero to setpoint cycle progress indication, and count input scale
factor. The software programming functions are indicated with
abbreviated English work prompts to help the user program these
functions without the need for written instructions.
Keypad lock function allows viewing of setpoint, but does not allow
unauthorized changes
4 1/2 digit (19999) liquid crystal display - .5 inch high digits
Annunciators (right of the display) flash to indicate timing or counting
Two form C instantaneous contacts and two form C programmed
contacts
Five time ranges from 19.999 sec. to 199 hr.: 59 min.
Three count rate input rate speeds are programmable with a max.
count display of 19999 - can be extended via count input scale
factor
24, 120, or 240 VAC operations
Count input available for 120 volt AC or low voltage AC/DC
operations
When programmed as timer, count input circuit serves as time inhibit
(without resetting the unit)
DANAHER CONTROLS
brand
®
plug-in case which allows easy

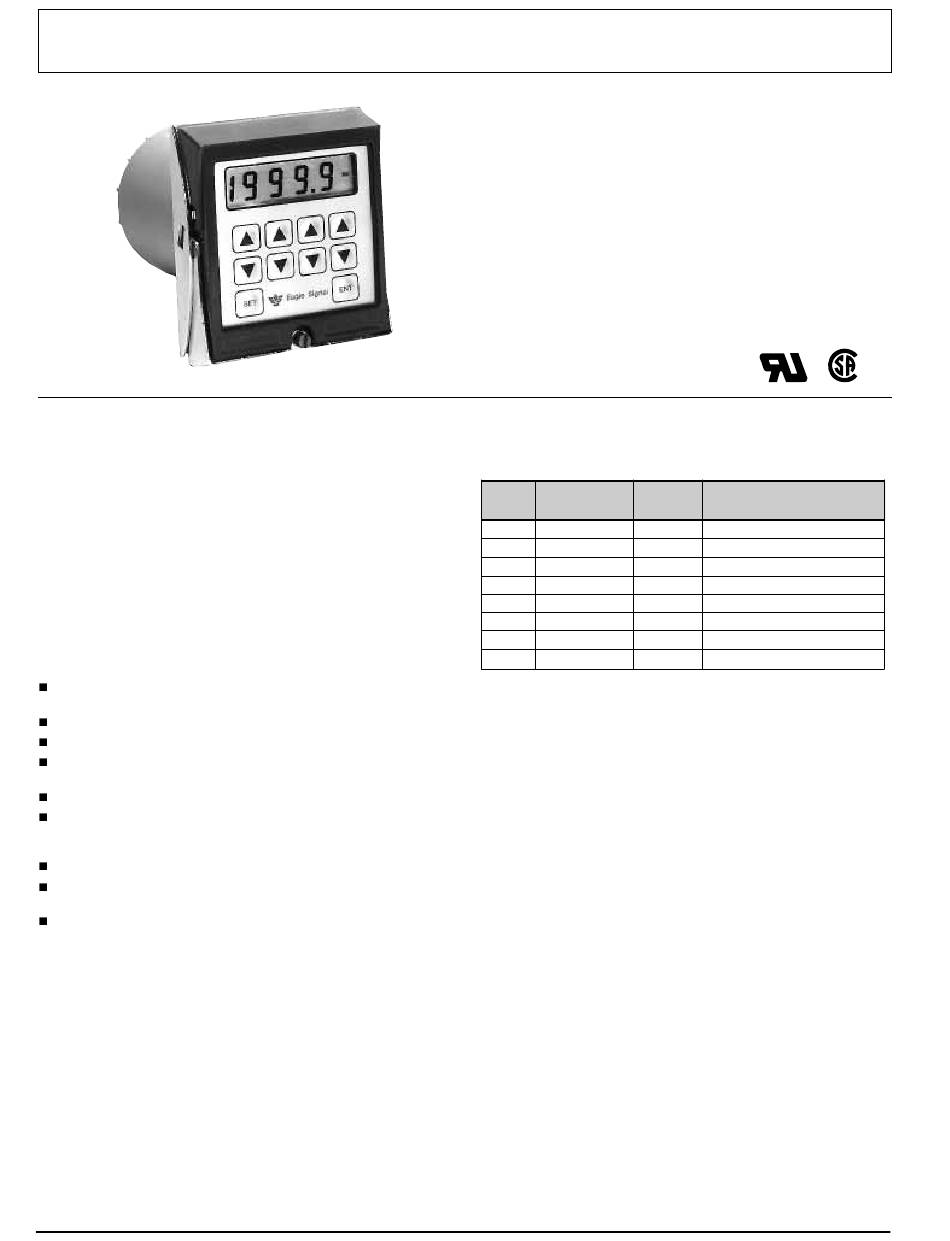

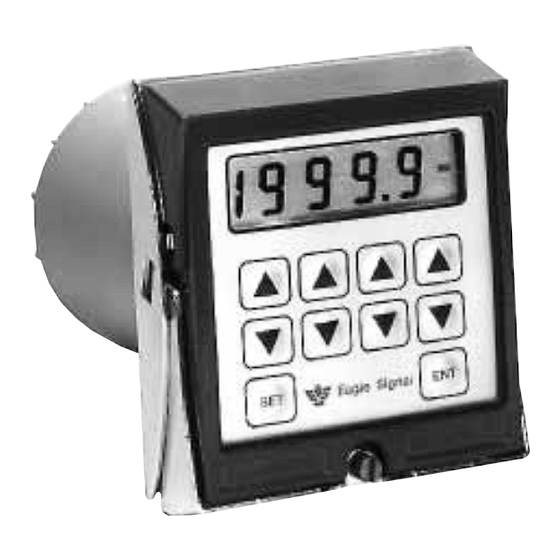

CX300 Microprocessor Timer/Counter
Microprocessor based
timer/counter housed
in the industrial
standard CYCL-FLEX
case
SPECIFICATIONS
Time/Count Ranges:
Sym. Maximum
Range
1 19999 Cts.
2 19999 Cts.
3 19999 Cts.
4 199.99 Sec.
5 1999.9 Sec.
6 19.999 Sec.
7 199 Min.: 59 Sec.
8 199 Hr.: 59 Min.
Operating Voltage/Frequency: A6 - 120 VAC, 50/60 Hz
B6 - 240 VAC, 50/60 Hz
Z6 - 24 VAC, 50/60 Hz
Time Inhibit/Count Line Terminals B & C:
CX311/CX341 - 12-50 VDC or 20-28 VAC, 50/60 Hz
CX312/CX342 - 120 VAC, 50/60 Hz or 120 VDC
Setting Accuracy: Time: ±0.1% or 50 ms, whichever is larger (0˚ to 60˚C)
Count: 100%
Repeat Accuracy:
Time: ±0.1% or 35 ms, whichever is larger (0˚ to 60˚C)
Count: 100%
Reset Time: 30 ms following voltage removal from simulated clutch input
(CR1)
Power on Response: 300 ms max. after voltage applied to terminal 11
Operating Temperature: +32˚ to +140˚F (0˚ to +60˚C)
Output Rating: Relay: 10 amp (resistive), 120 VAC
Mechanical Life: 20 million operations
Electrical Life: contingent upon controlled load
Solid State: 1 amp, 0-264 VAC, VDC
Vibration: Unit function is unaffected by 2.5
tude in both directions of the perpendicular mounting axes imposed from
10 to 100 Hz
Static Discharge: Unit function is unaffected by a constant 3600 volt peak,
60 Hz discharge applied to the grounded front plate at a relative humidity
of less than 25%
Battery Life: The CX uses a lithium battery with an expected life of 10
years
Agency Approvals: UL Recognition E96337
CSA Certification LR26861
®
®
RECOGNIZED
Minimum Count
Setting Rate
7500/Sec. 12-50 VDC Count Input
1 Ct.
500/Min. AC or DC
1 Ct.
1 Ct. 5000/Min. AC or DC
.01 Sec.
.1 Sec.
.001 Sec.
1 Sec.
1 Min.
sinusoidal vibration magni-
G
®
CERTIFIED
