Summary of Contents for AmbiSonic Systems S11BP-70V

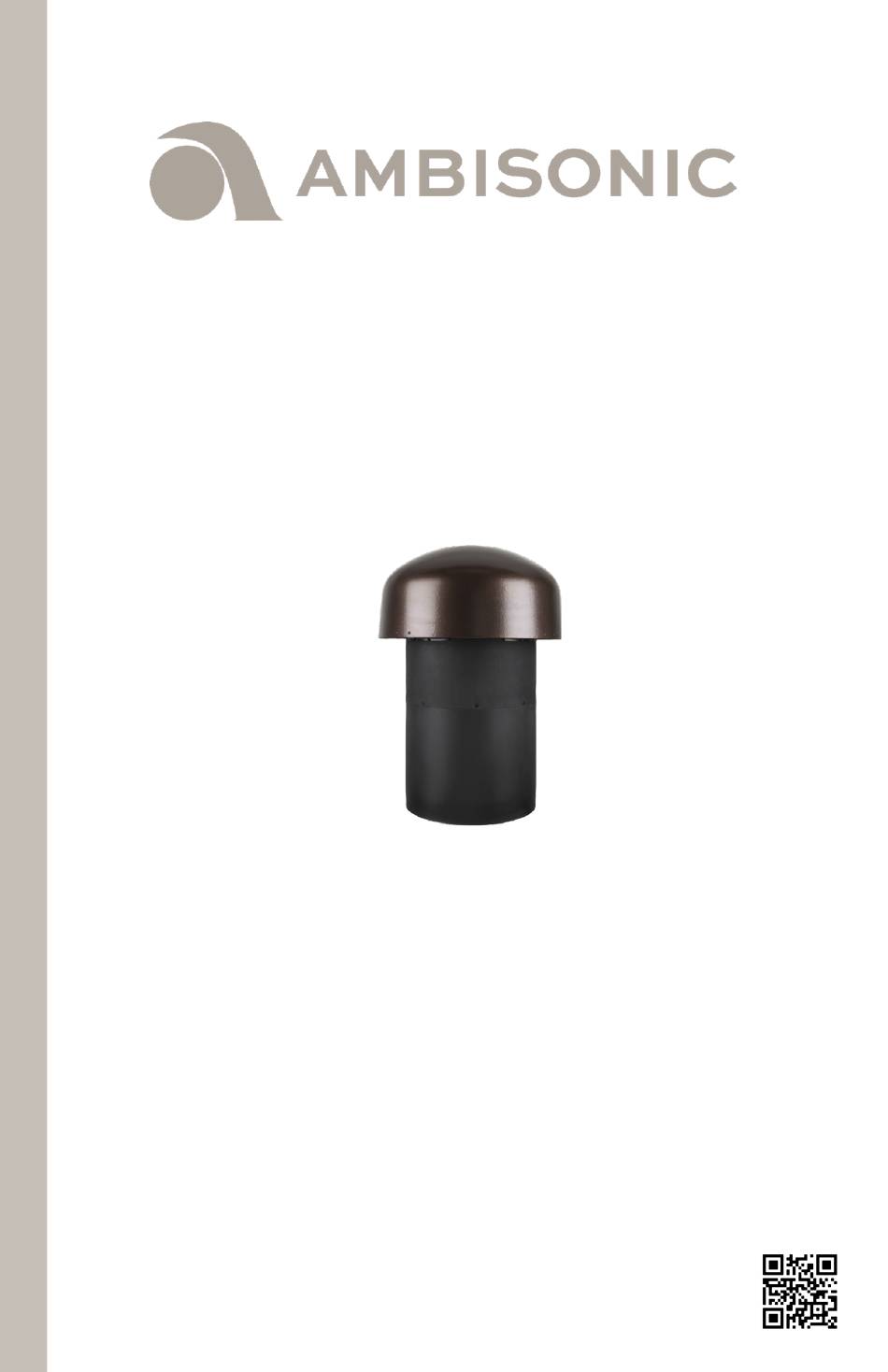

- Page 1 S11BP-70V | S11BP-8ohm OUTDOOR BURIAL SUBWOOFER INSTALLATION MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS ..1. Introduction ..2. Specifications ..3A. What’s Included ..3B. Recommended Tools ..4. Pigtail Wiring Closeup ..5. System Planning & Precautions ..5A. System Planning: Sound Quality ..5B. System Planning: Precautions ..5 6. -
Page 3: Introduction
1. INTRODUCTION Congratulations on selecting the Ambisonic S11BP Subwoofer, one of the finest outdoor speaker systems ever produced At Ambisonic, we take pride in providing you with a high quality product, all speakers are designed to have excellent sound quality, longevity, and a simple installation process. -
Page 4: Specifications
2. SPECIFICATIONS SPECIFICATIONS S11BP-70V / S11BP-8OHM SUBWOOFER System Type Vertical Pass Subwoofer 11” All Weather Dual Voice Coil Driver Components Polypropylene Woofer Frequency Response 41Hz – 150Hz (+/– 3dB) Max SPL @ 1m 113dB Continuous, 119dB Peak Sensitivity, 1m/2.83V 90dB... -
Page 5: What's Included
3A. WHAT’S INCLUDED Wire Nuts (2) Subwoofer Start Guide 3B. RECOMMENDED TOOLS • Direct Burial Wire • Shovel • Wire Stripper • Speaker Wire • Screwdrivers • Measuring Tape 4. PIGTAIL WIRING CLOSEUP Includes a pair of silicone filled Subwoofer Voice Coil #1 wire nuts for the connection RED wire is positive (+) BLACK wire is negative (--) -
Page 6: System Planning & Precautions
5. SYSTEM PLANNING & PRECAUTIONS 5A. SYSTEM PLANNING: SOUND QUALITY Read these instructions before you start, to get a better understanding of the procedures. If possible, temporarily layout your speaker wires where you think you want to place the S11BP Subwoofer and test the system first. Moving the subwoofer around the environment may yeild a better overall sound. -
Page 7: Recommended Burial Depth
6. RECOMMENDED BURIAL DEPTH For in-ground burial of the S11 BP-IG Subwoofer, dig a hole approximately 14” diameter x 12” deep. Prepare a 1-2” deep “bed” for the Subwoofer that is reasonably free of voids and rarge rocks. Place the Subwoofer Into the prepared hole making sure it is “Level” and “Plumb”. -
Page 8: Recommended Wiring Instructions
8. RECOMMENDED WIRING INSTRUCTIONS 1) Determine the appropriate gage direct burial cables. Note: Polarity does matter. Use “Ribbed” Hot for all (+} Positive connections Use “Smooth” Common for all (- ) Negitive connections 2A) Wire amplifier to Subwoofer using two (2) parallel 1-4 or appropiate gage for direct burial cables for “Left &... -
Page 9: Optional Satellite Wiring: (Daisy Chained)
8B. OPTIONAL SATELLITE WIRING: (Daisy Chained) 2B) Wire “Left” speakers to Subwoofer In parallel. 2C) Wire “Right” speakers to Subwoofer in parallel. 8C. 70V WIRING (Using JB2100 Transformer) R CH. SUB R CH. BLACK BLACK L CH. SUB L CH. VC WHITE WHITE GREEN... -
Page 10: Troubleshooting
9. TROUBLESHOOTING If you have a problem, try isolating it first. For example, if you’re playing a DVD and there is no sound, try replacing the DVD with an MP3 player to see if you get sound. If it does work, then the problem is with the television, DVD player, or the cables connecting them. -
Page 11: Technical Assistance
10. TECHNICAL ASSISTANCE If you have any questions or concerns about installing or using this product, you can reach us through one of the following methods: Phone: (844) 674 - 4461 Hours of operation: 8:00am - 5:00pm (Pacific Time), Mon - Fri Email: sales@originacoustics.com If you are having technical trouble, please include the model number and briefly explain what steps you took to resolve the problem in your email, or be prepared... -
Page 12: Limited 5 Year Warranty
11. LIMITED 5 YEAR WARRANTY Ambisonic warrants to the original retail purchaser only that this Ambisonic product will be free from defects in materials and workmanship, provided the speaker was purchased from an Ambisonic authorized dealer. If the product is determined to be defective, it will be repaired or replaced at Ambisonic’s discretion. -
Page 13: Return Process
12B. NOT COVERED BY WARRANTY • Accidental damage • Damage caused by abuse or misuse • Damage caused by attempted repairs/modifications by anyone other than Ambisonic or an authorized dealer • Damage caused by improper installation • Normal wear, maintenance, and environmental issues •... - Page 14 06-19-24 6975 S Decatur Blvd, Las Vegas, NV 89118 • www.ambisonicsystems.com • 844-674-4461 ©2024 Ambisonic. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Ambisonic Systems.
