Summary of Contents for A-Neuvideo ANI-41STREAM-R

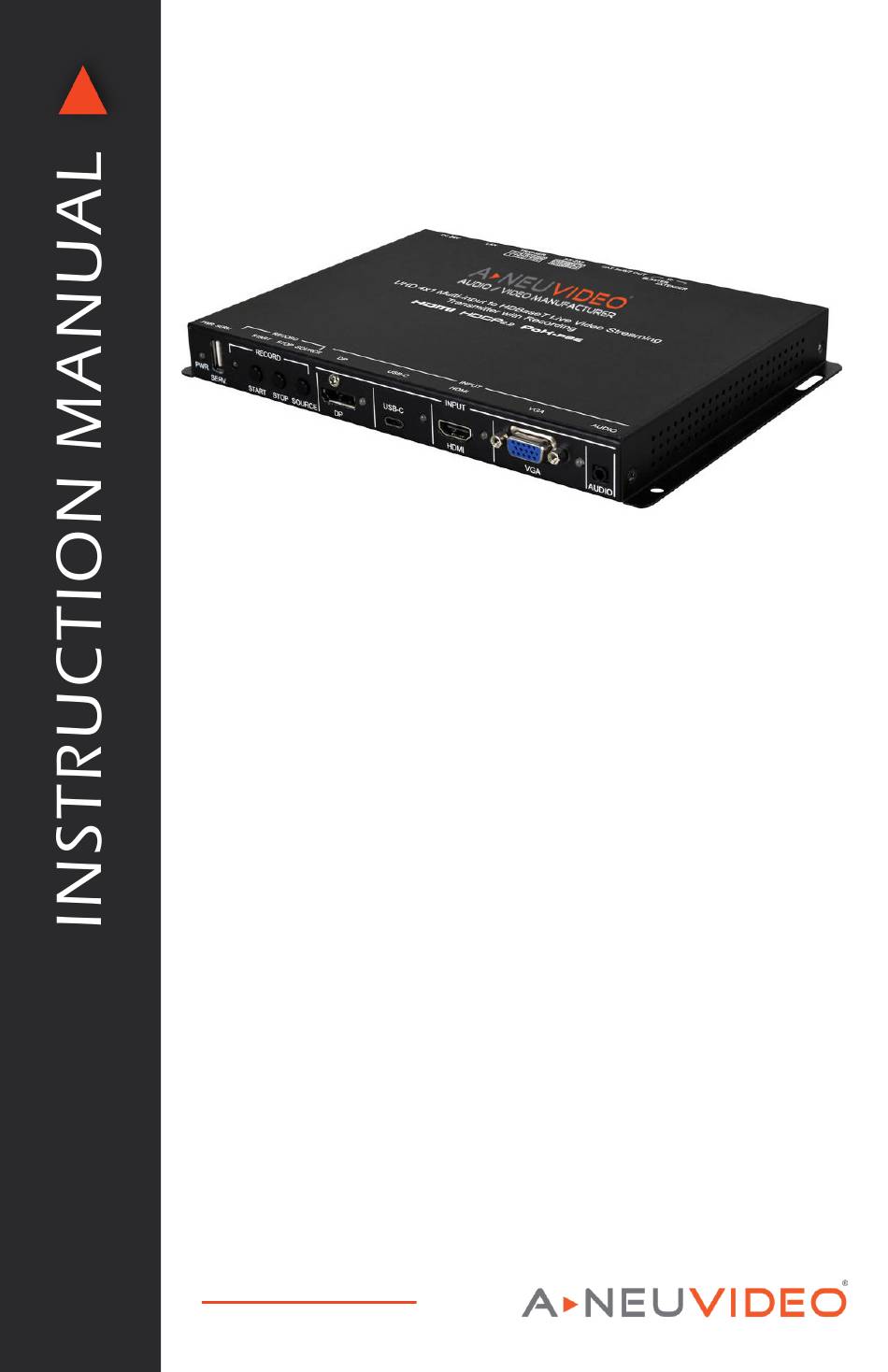

Page 1
HDMI/VGA Video Streamer w/ Recording PACKAGE CONTENTS Before attempting to use this unit, please check the packaging and make sure the following items are contained included: • ANI-41STREAM-R HDMI/VGA Video Streamer with Recording • 5V/2.6A DC Power Adapter • Remote Control A-NeuVideo.com...
Page 2
SAFETY INFORMATION 1. To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. 2. Follow all instructions printed on unit chassis for proper operation. 3.
Page 3
NEUVIDEO SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. •...
CABLE SPECIFICATIONS......................36 INTRODUCTION The ANI-41STREAM-R Video Streaming Recorder makes online broadcasting of live video, with a locally stored archive, an easy and simple process. Video sources from cameras, PCs, video game consoles, etc. are a breeze to connect for immediate broadcast and recording. Video content up to 4K UHD+ is supported and is automatically scaled to a resolution that is more appropriate for efficient streaming.
APPLICATIONS / SYSTEM REQUIREMENTS APPLICATIONS • Webcasting • Social Media Broadcasting • Live Event Streaming • Video on Demand Streaming • Live recording and storage SYSTEM REQUIREMENTS • HDMI or VGA source equipment such as a media player, video game console, PC, or video camera.
FEATURES • (1) HDMI Input and (1) VGA Input • (1) HDMI Output (for local source monitoring) • HDCP 1.x and HDCP 2.2 compliant Note: HDCP encrypted sources cannot be streamed over the Internet or recorded and will be blacked out •...
OPERATION CONTROLS & FUNCTIONS Front Panel q POWER BUTTON & LED: This LED will illuminate green to indicate the unit is on and receiving power. When the unit is in stand-by mode the LED will illuminate red. w IR WINDOW: Accepts IR signals from the included IR remote for control of this unit only.
Page 9
OPERATION CONTROLS & FUNCTIONS Rear PaneL q HDMI OUT PORT: Connect to an HDMI TV, monitor or amplifi er for digital video and audio output. w HDMI IN PORT: Connect to HDMI source equipment such as a media player, game console or set-top box.
Page 10
OPERATION CONTROLS & FUNCTIONS Remote Control q POWER BUTTON: Press to power the unit on or place it into stand-by mode. w COUNTDOWN BUTTON: Press to enable/ disable the Countdown Timer display on the HDMI and streaming output. e PLAY/STOP BUTTONS: Press to start/stop streaming to the confi gured target server.
WebGUI Control Device Discovery Please obtain the “Device Discovery” software from your authorized dealer and save it in a directory where you can easily find it. Connect the unit and your PC/Laptop to the same active network and execute the “Device Discovery”...
Page 13
WebGUI Control On the left side of the browser you will see the following menu tabs where all primary functions of the unit are controllable via the built in WebGUI. The individual functions will be introduced in the following sections. Clicking the red “Logout”...
Page 14
WebGUI Control 4. Maximum Framerate: Displays the current maximum framerate for streaming channel 1. 5. Maximum Quality: Displays the current maximum bitrate for streaming channel 1. 6. Video Window: This video window displays the content of streaming channel 1 and provides the details of a direct connection address that can be used to connect to this stream using 3rd party video player software such as VLC or PotPlayer.
Page 15
WebGUI Control 1. Source Select: Select the video input (HDMI or VGA) to stream. Note: Changing the input here will change it globally across the unit. 2. Live Stream Source: Use the dropdown to select which stream to broadcast when “Play” is pressed.
Page 16
WebGUI Control Audio Mixer Tab This tab allows for control over the Audio Mixer function of this unit. The Audio Mixer feature, when enabled, mixes the analog audio and HDMI audio inputs together with independently controllable volume levels. Note: Only LPCM 2.0 audio from the HDMI source is supported by the mixer. 1.
Page 17
WebGUI Control 3. Video Switch: To assign a new video route, please click the Output button and then click on the button of the preferred Input port to route. As you select each button they will change their color to orange.
Page 18
WebGUI Control 1. Customer EDID Settings: • Save Name: To change the name of a custom EDID, type the new name in the space provided, then click on the “Save Name” button. • Download: To save an existing custom EDID to your local PC please press the “Download” button next to the EDID you would like to save.
Page 19
WebGUI Control UHD / 2CH 3840x2160p@30Hz (10.2Gbps) & Deep Color (8/10/12-bit), LPCM 2.0 UHD / MCH 3840x2160p@30Hz (10.2Gbps) & Deep Color (8/10/12-bit), LPCM 7.1 & Bitstream UHD+ / 2CH 3840x2160p@60Hz (18Gbps) & Deep Color (8/10/12-bit), LPCM 2.0 UHD+ / MCH 3840x2160p@60Hz (18Gbps) &...
Page 20
WebGUI Control 2. Record State: Displays the current recording state of the unit. 3. Storage: Use the drop-down to select the storage target to use when recording. Available choices are: Auto, USB (USB storage), SDCard (Micro-SD Card), NFS (NFS based network storage), and CIFS (CIFS 21 based network storage).
Page 21
WebGUI Control 10. Schedule Record Timer: Enable or disable the scheduled time recording function. Each hour of each day is divided into two half-hour blocks. Currently selected recording times are indicated by orange blocks. Gray blocks indicate that no recording is currently scheduled. Blocks may be activated or deactivated by clicking on them.
Page 22
WebGUI Control 3. Daylight Saving Time Configuration: Enable or disable the use of DST adjustments for the unit’s time. Note: Enabling Daylight Saving Time while outside the configured DST range will result in no change to the current time. • Start Time: Set the month, week, day and time for the start of DST in the current time zone.
Page 23
WebGUI Control 1. Power: Press this switch to toggle the unit’s power between ON and OFF (stand-by mode). Note: While in standby mode the unit’s WebGUI, Telnet and RS-232 controls are still active. 2. Web Timeout (Minute): IP mode may be switched between Static IP or DHCP. In Static IP mode the IP, netmask and gateway addresses may be manually set.
Telnet Control Before attempting to use Telnet control, please ensure that both the unit and the PC/laptop are connected to the same active network. To Access Telnet Windows 7 Click START, type “cmd” in the search field and press ENTER. Windows 10 1.
Page 25
Serial & Telnet Commands COMMAND DESCRIPTION AND PARAMETERS HELP Show all available commands. ? Show all available commands. GET FW VER Show the unit’s current fi rmware version. GET MODEL NAME Show the unit’s model name. GET MODEL TYPE ...
Page 26
Serial & Telnet Commands COMMAND DESCRIPTION AND PARAMETERS GET OUT AUTO MODE Show the current auto switching mode of the unit. GET OUT AUTO MODE List all available auto mode options. LIST Show the horizontal active pixel value of the specified input’s GET IN N1 HACTIVE ...
Page 27
Serial & Telnet Commands COMMAND DESCRIPTION AND PARAMETERS GET IN PORT NUMBER Show the total number of inputs on the unit. GET OUT PORT NUMBER Show the total number of outputs on the unit. GET OUT A SYNC STATUS Show the current sync state of the HDMI output.
Page 28
Serial & Telnet Commands COMMAND DESCRIPTION Set the EDID to use on the HDMI input. SET IN 1 EDID N1 Available values for N1: [FHD 2CH] [Sink A] [FHD MCH] [User 1] [4K UHD 2CH] [User 2] [4K UHD MCH] 10 [User 3] [4K UHD+ 2CH] 11 [User 4]...
Page 29
Serial & Telnet Commands COMMAND DESCRIPTION GET OUT A OSD Show the current state of the OSD Countdown Timer banner. SET OUT N1 BANNER TEXT Set the OSD banner text to use on the specified output. N2 Available values for N1: [HDMI output] [Streaming output] N2 = {Banner text}...
Page 30
Serial & Telnet Commands COMMAND DESCRIPTION SET OUT A OSD Set the color of the background of the OSD Countdown Timer BACKGROUND COLOR banner. N1 Available values for N1: BLACK [Background color] WHITE [Background color] [Background color] GREEN [Background color] BLUE [Background color] MAGENTA...
Page 31
Serial & Telnet Commands COMMAND DESCRIPTION Set the unit’s static IP address. SET IPADDR N1 N1 = X.X.X.X [X = 0 ~ 255] GET IPADDR Show the unit’s current IP address. Set the unit’s static netmask. SET NETMASK N1 N1 = X.X.X.X [X = 0 ~ 255] GET NETMASK ...
Page 32
Serial & Telnet Commands COMMAND DESCRIPTION SET LIVE STREAM URL Set the URL used to access the current live streaming target N1 service. N1 = {text string} [Target service Stream URL] GET LIVE STREAM URL Show the URL used to access the current live streaming target service.
Page 33
Serial & Telnet Commands COMMAND DESCRIPTION GET RECORD OVERWRITE Show the current state of record overwrite support. SET RECORD MEDIA PATH Set the target media for recording. N1 Available values for N1: AUTO [Automatic selection] [Local recording to USB port] SDCARD [Local recording to SD Card slot] [Network recording via NFS]...
Page 40
THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
