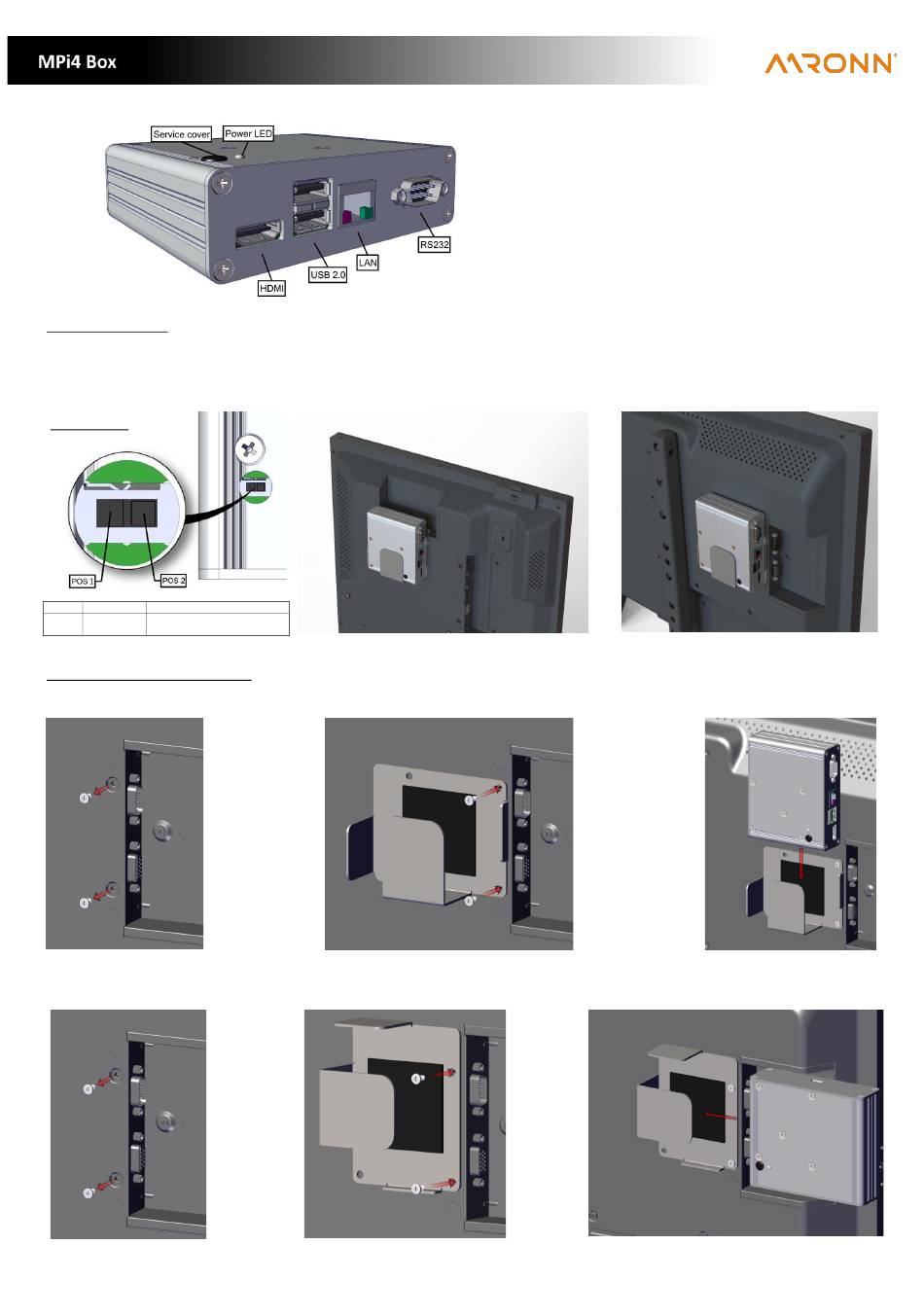

Aaronn Mpi4 Box Manual

Installation instructions
1. The MPi4 Box and its components are sensitive to static electricity (ESD) and other damage. Therefore, be careful when handling and inspecting this product
to ensure the integrity of the product at all times.
2. Switch off the Public Display or the projector completely using the toggle switch, or disconnect the device completely from the mains before installing and wiring the MPi4 Box.
3. The MPi4 Box starts automatically after switching on the Public Display
Boot Selection:
POS 1 USB boot Boots from USB-C
POS 2 eMMC Boot Boots from the internal eMMC
(default) Flash
Installation steps for Sharp NEC displays
Horizontal mounting:
Step 1: Remove existing screws
Vertical mounting
:
Step 1: Existing screws
Remove
Aaronn Electronic GmbH, Lilienthalstrasse 1, 82178 Puchheim, Germany. All rights reserved. All specifications are subject to change without notice.
.
Figure 1: Vertical mounting
Step 2: Fasten the mounting plate with the previously
removed screws
Step 2: Mounting plate with previously removed
Fastening the screws
Technical specifications:
Connections: 1x USB Type C (5V DC input)
1x HDMI 2.0
2x USB 2.0
1x RJ45 10/100/1000 Mbps Ethernet
1x RS232
Features: Broadcom BCM2711
quad-core Cortex-A72 (ARM v8) 64-bit @ 1.5GHz
- 4GB RAM
- 32GB EMMC
Power: 5V DC @ typ. 1.5 A (full load)
Operating temperature [°C] 0-50
Dimensions (mm) 89 x 105 x 30
Net weight (g) 248 g
Figure 2: Horizontal mounting
Step 3: Insert the MPI4 box
Step 3: Insert the MPI4 box
