Summary of Contents for Eureka Esta OFC390B

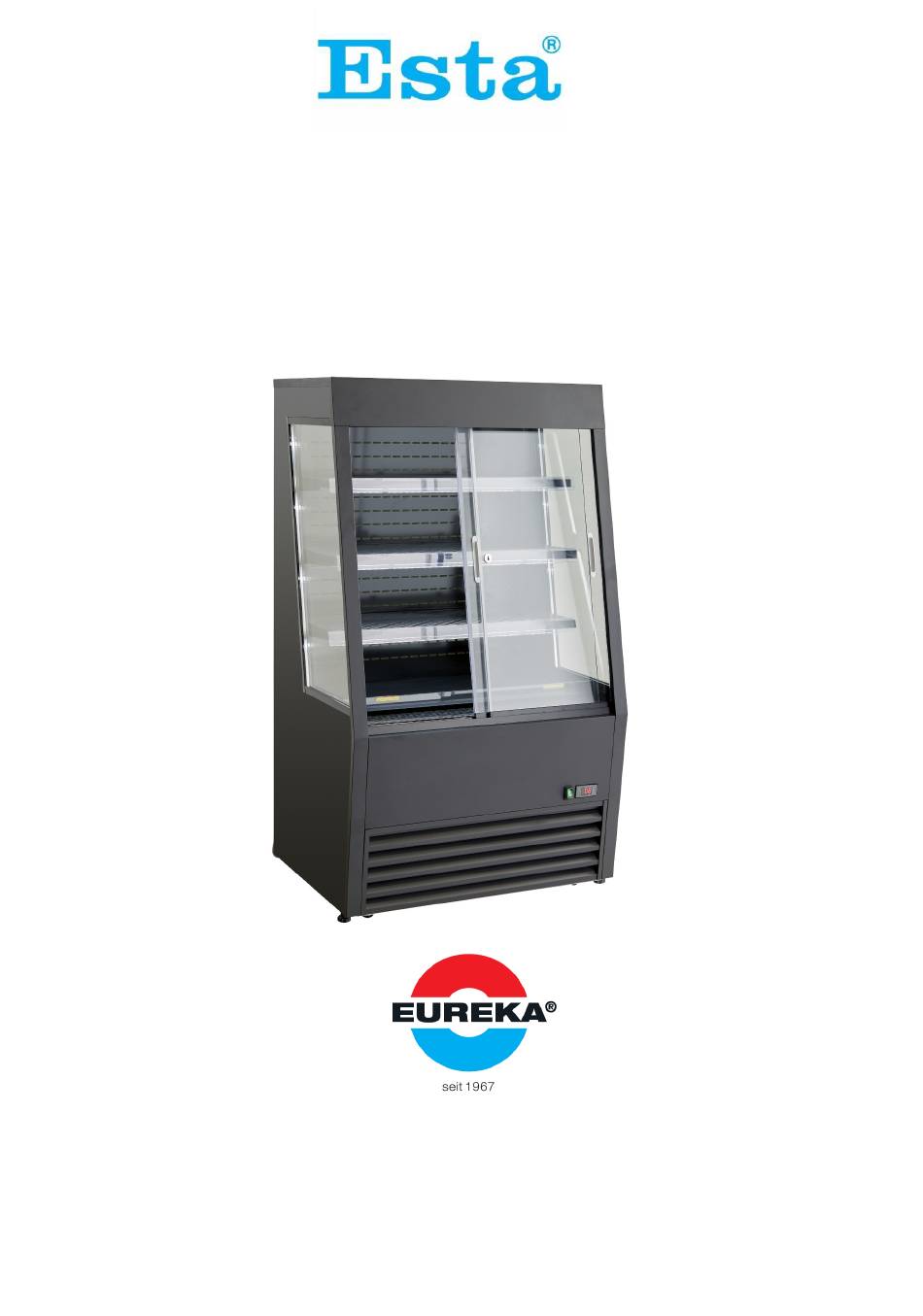

- Page 1 Bedienungsanleitung ESTA-Wandkühlregal OFC390B EUREKA Wärmerückgewinnung und Kühltechnik GmbH & Co. KG Nickelweg 48282 Emsdetten (0) 2572 9554 0 (0) 2572 7058 info@eureka-emsdetten.de www.eureka-emsdetten.de...
-
Page 2: Structure And Parts
Operation instructions Thank you for choosing and purchasing our product. Please carefully read the operation instructions before use for a correct application and satisfactory effect. This appliance compliance with the requirement of directive 2006/42/EC. General This product is a type of chilling cabinet, which is our new development of refrigeration combining the advanced technologies from both and abroad on the basis of food cabinet standards and corporate criteria. - Page 3 Handle and placement Handle with care Unplug the wall socket first. Never tilt it over 45 degree during handling Dry place Always locate the refrigerator at a dry place. Sufficient space The distance from both sides and back of refrigerator to wall or other substance must not less than 10cm.
- Page 4 No share on socket Never let the refrigerator share the common socket with other appliance, otherwise the cable becomes hot and fire might be resulted. Protect cables Never break or damage the cables otherwise current leakage and fire might be resulted.
-
Page 5: Digital Temperature Controller
This operation manual is not suitable for the persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge. Digital temperature controller Control It is a mini-sized and integrated intelligent controller and applicable to the compressor of one Hp. - Page 6 Manual start/stop defrost: press the “LIGHT” button and hold for 6 seconds to defrost or stop defrost. Refrigerant LED: During refrigeration, the LED is on; When the cold room temp. is constant, the LED is off; During the delay start, the LED flashes. Defrost LED: during defrosting, the LED is on;...
-
Page 7: Maintenance
Maintenance Cabinet cleaning. The product should be cleaned once a week with power supply disconnected. When cleaning, please use mild rinsing water or non-corrosive essence. Do not wash it directly with a water hose. Cleaning for filter To keep the device in good working condition, the condenser should be cleaned every 1 months. -
Page 8: Troubleshooting
Trouble Shooting Troubles Causes Solutions Fan blade broken Power off and fix the blade Strange noise under the bottom shelf Unit off. Power on Non-refrigerating in spite of normal Melting process Stop melting operation Refrigerant leaking Patch the leak and refill refrigerant Unit failure Call for professionals... - Page 9 Note Following phenomena are not troubles The murmur of water is heard when the refrigerator is working. It is a normal phenomenon as the coolant is circulating in the system. In wet season, condensation might be found on the outside of the refrigerator. It is not a trouble, which is caused by high humidity.
-
Page 10: Circuit Diagram
Circuit Diagram Major Parameters Coolant and injection quantity (g) R290 (148) General Rated input power (W) 1300 Power running of electrical heating element (W) Max. ambient temp. /RH <27°C / 70% Refrigeration Temperature (°C) 2-10 Rated voltage (V) 220-240 Rated frequency (Hz) Rated current (A) Type of Climate Foaming agent... - Page 11 Geben Sie das Gerät nicht in den Hausmüll. Achten Sie darauf, dass Sie den Kältekreislauf nicht beschädigen! Machen Sie das Gerät unbrauchbar, Netzstecker ziehen und Netzkabel durchtrennen. Eureka Technischer Kundendienst Sie erreichen den Eureka Technischen Kundendienst per Telefon: 49 (0) 2572-9554-0 per Fax:...
