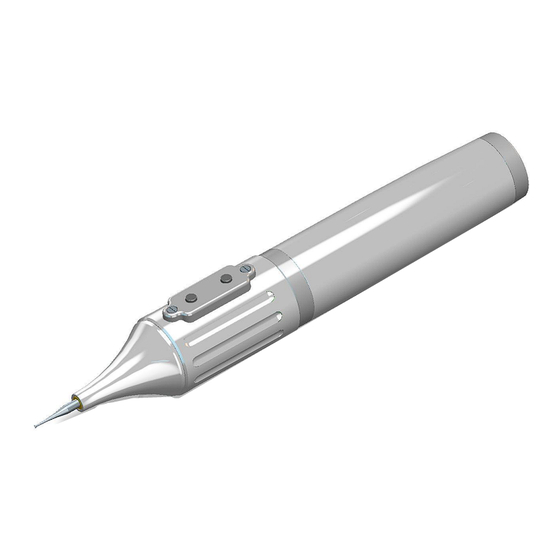

Summary of Contents for Wagner & Guder CR-140

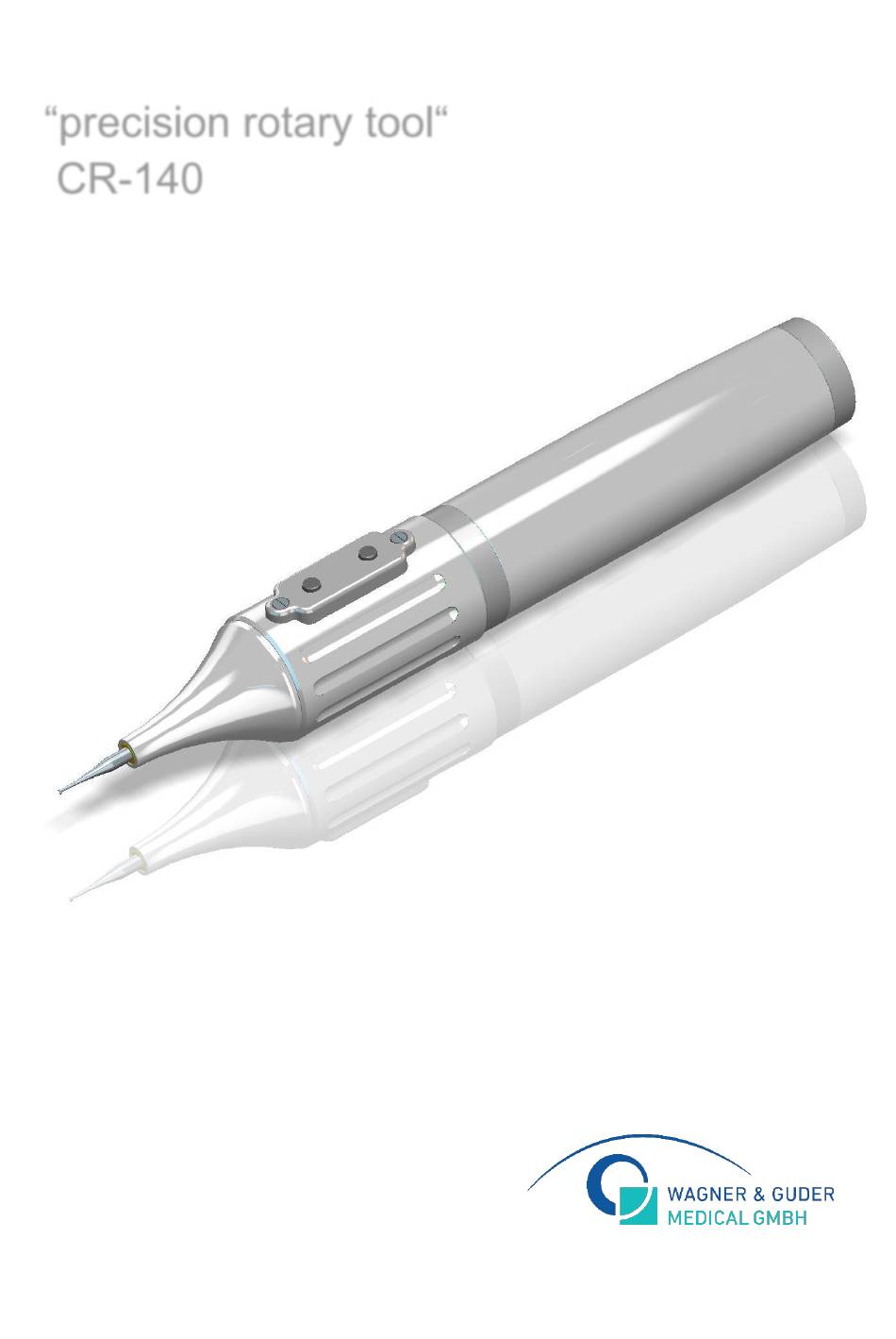

- Page 1 “precision rotary tool“ CR-140 Direction for use issue 05-2024, version 1.6...
-
Page 2: Table Of Contents
Technical data ......................6 Disposal ........................7 EC- DECLARATION OF CONFORMITY ..............8 Scope of delivery 1. Precision rotary tool CR-140 2. Rechargeable battery: Type 14500/AA – 800mAh - PCB 3. USB- charger MC1 4. USB- Type C cable Please Note: Please familiarise yourself with the operating instructions before using the appliance. -
Page 3: Safety Regulations
Precision rotary tool CR-140 Safety regulations Intended use The "Miniature Cutter CR" is an ergonomic precision tool for holding rotary cutters with dimensions d2.35x 25mm. Due to its design, the CR miniature milling machine may be used in accordance with the EU Medical Devices Regulation 2017/ 745 MDR - Article 22 in combination with sterile disposable tools from Komet Medical. -
Page 4: Structure
Precision rotary tool CR-140 Structure Cover battery housing Open only here! 3.7V Li-ion rechargeable battery, Type 14500- 800mAh Battery housing Push button counterclockwise rotation Push button clockwise rotation Drill holder D2,35mm Tool recommendation: Cutter type D2,35x 25mm e.g. Komet Medical - CE... -
Page 5: Operation
Precision rotary tool CR-140 Operation Remove the device from the packaging, charge the battery supplied with the charger included in the scope of delivery on a USB port. Insert a suitable cutter (note the 2.35mm diameter) and guide the miniature cutter CR to the lesion site. If possible, select the head diameter so that the circumference of the head covers the "rust ring"... -
Page 6: Maintenance And Care
Precision rotary tool CR-140 Maintenance and care The miniature router CR is maintenance-free and designed for a service life of 5 years. To ensure safe and proper operation, regular maintenance should be carried out. The following safety-relevant checks should be carried out and documented: •... -
Page 7: Disposal
Precision rotary tool CR-140 Disposal This symbol only applies to EU member states. To avoid possible negative effects on the environment and possibly on human health, this appliance must be disposed of (i) in EU member states in accordance with the EU... -
Page 8: Ec- Declaration Of Conformity
Konzeption und Bauart sowie in der von uns in Verkehr gebrachten Ausführung den Anforderungen der Maschinenrichtlinie 2006/ 42/ EG entspricht. We declare by ourself, that rotary instrument CR-140 is on the basis of design in all type of construction in correlation with directive 2006/ 42/ EG.
