INSTALLATION AND CARE & MAINTENANCE GUIDE
Installation guide

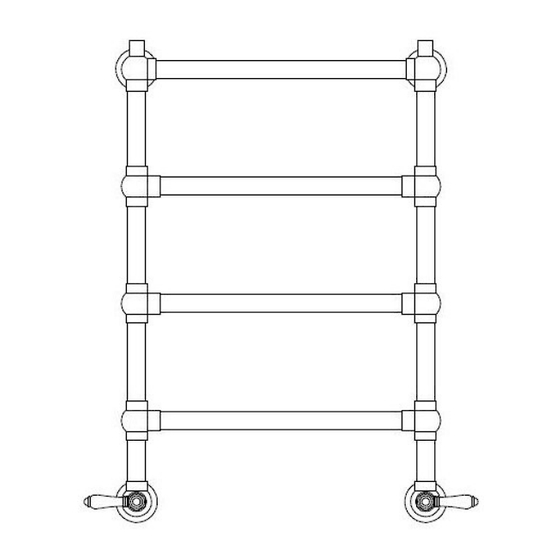

TOWEL HEATER (WATER)
5528
Art.
(all models and all handles)
ATTENTION
ITEM TO BE INSTALLED RESPECTING RECOMMENDED
OPERATING PRESSURE, WITH USE OF WATER WITH NO
AGGRESSIVE OR CORROSIVE SUBSTANCES
a – Preparation

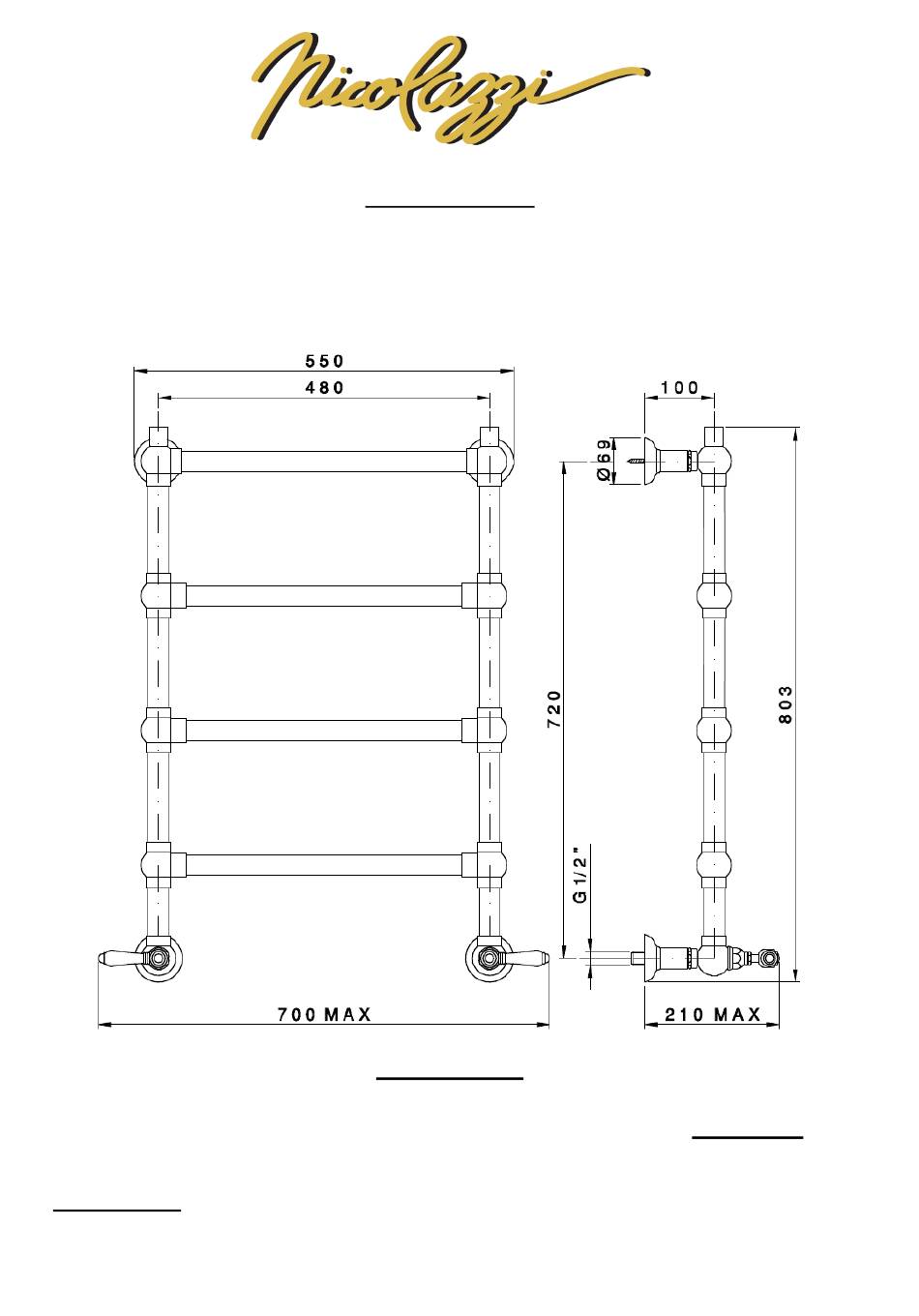

Predispose two G1/2" female connections supply from the wall at the distance 480 mm. between hole centers.
Flush out the pipework to remove any dirt.
1
3
Page
of
Towels heater item. 5528 rev.1 Set. 2016
Advertisement
Summary of Contents for NICOLAZZI 5528
- Page 1 AGGRESSIVE OR CORROSIVE SUBSTANCES a – Preparation Predispose two G1/2” female connections supply from the wall at the distance 480 mm. between hole centers. Flush out the pipework to remove any dirt. Page Towels heater item. 5528 rev.1 Set. 2016...
- Page 2 - Assemble the towel heater (F) to the extensions (D and L), placing the washers (E) between the two lower parts (D and G). - Screw the nuts (G and M). - Ensure all connections are firmly tightened. - Assembling the handles (N) and turn it in the ON position. Page Towels heater item. 5528 rev.1 Set. 2016...
- Page 3 Maximum working pressure : 6 bar Maximum working temperature : 80 ° C Maximum loaded weight : 3 Kg. Finishings available : all Nicolazzi finishings Handles available : all Nicolazzi handles (on demand) Page Towels heater item. 5528 rev.1 Set. 2016...
