Summary of Contents for Spectra RAIO 1

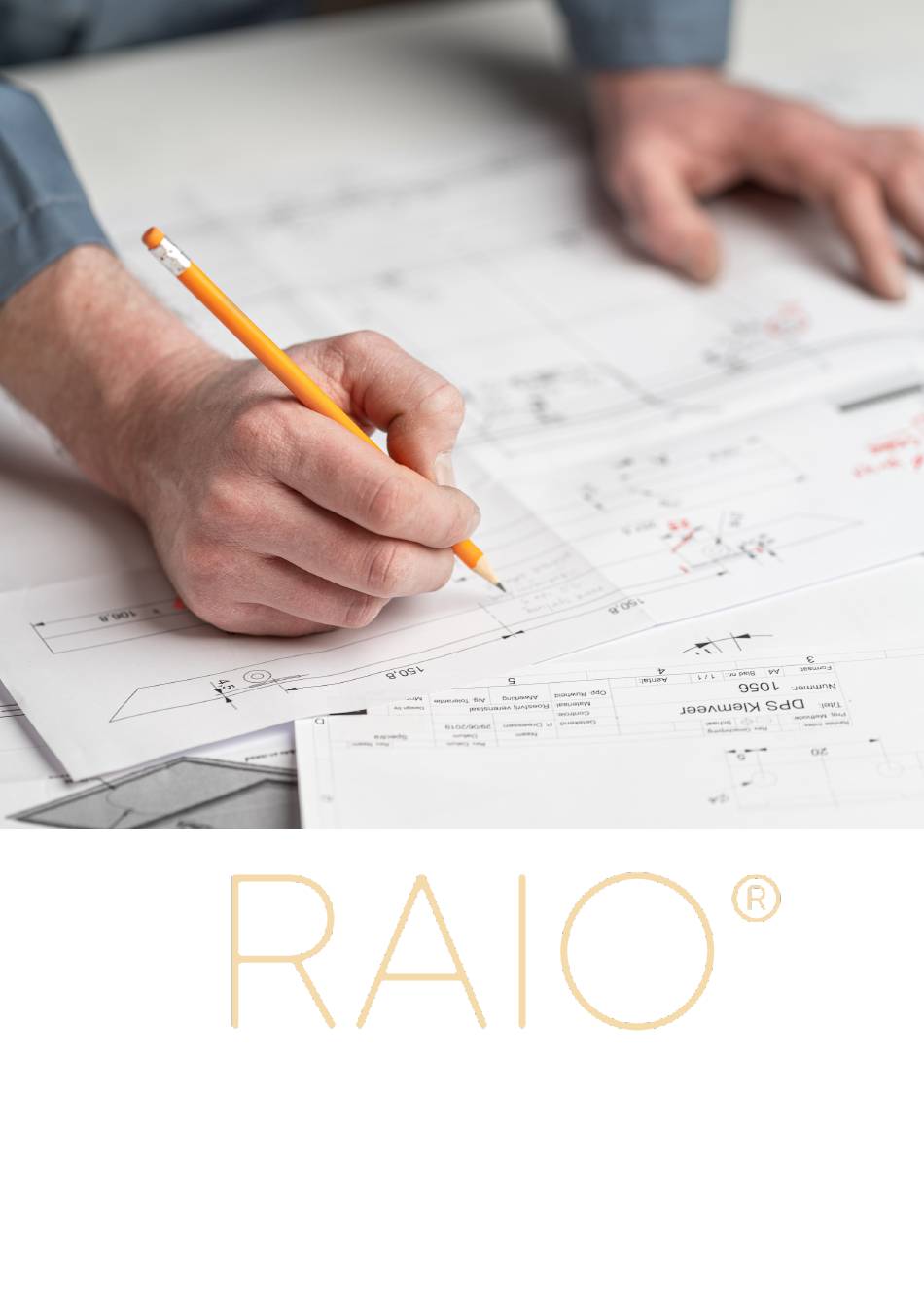

- Page 1 USER INSTRUCTIONS RAIO BY SPECTRA contact@raio.be +32 11 39 75 85...
-
Page 2: Installation Instructions
Make sure that they cannot operate the device. Installation instructions: Spectra always stipulates that RAIO should be installed by a licensed or qualified professional technician, knowledgeable in the laws and requirements for this type of work. - Page 3 Best results are achieved when RAIO is mounted against the ceiling centered in the room you wish to heat. • Never use RAIO if damage is found, always check for visible defects or damage before use. If damage is found, RAIO should always be returned to Spectra. • Use RAIO only for heating rooms.
- Page 4 • The screws and dowels used should be predestined to bear the weight, ensure durable fastening! Minimum diameter thickness of 5 mm screws ( weight RAIO is listed in the specifications). RAIO 1 RAIO 2 • The provided connector can now be mounted to the room power cable. Make sure there is no electrical voltage on the power cable, do not connect this connector with RAIO yet.
- Page 5 5/12 • Once the mounting frame is attached and the connector is mounted on the power cable with or without a relay thermostat receiver, the steel cables of the mounting frame can be clipped to RAIO in the pre-designated plates with the round holes on the back of RAIO, at the level of the connector (see example drawing below where the cables are to be attached) •...
-
Page 6: Emc Directive2014/30/Eu
6/12 Specifications RAIO. RAIO 1 : 900 W / 4 A / 230 V / 120 cm x 60 cm x 2.7 cm (LxWxD ) incl. mounting frame 5.2 cm thickness - 13.3 kg total weight. RAIO 2 : 450 W / 1.95 A / 230 V / 60 cm x 60 cm x 2.7 cm (LxWxD) incl. mounting frame 5.2 cm thickness - 6.5 kg total weight. - Page 7 Disposal and recycling RAIO. If one wishes to discard RAIO after use, one may return all RAIO panels to Spectra bv free of charge. The shipping costs of these discarded RAIO panels are for the sender. RAIO is 100% recyclable and will be fully recycled by Spectra after dismantling.
- Page 8 RAIO 1 : 900 W / 4 A / 230 V / 120 cm x 60 cm x 2.7 cm (LxWxD ) incl. mounting frame 5.2 cm thickness - 13.3 kg total weight. Space to be heated up to 20 m2.
- Page 9 What should I do if I no longer wish to use RAIO or if I want to recycle the RAIO panel? You may return RAIO to Spectra bv free of charge. Shipping costs are for the sender. Spectra will take care of •...
- Page 10 10/12 Dealers in Belgium: BE-Sanitair GM-projects bvba Zavelheide 7B- 2200 Herentals Diestersteenweg 287A - 3680 Maaseik www.be-sanitair.be www.gm-projects.be +32 14553582 +32493455258 Bollen Energy IZI COOL Waterrijstraat 5C- 3900 Pelt Doenaertstraat 6 - 8500 Kortrijk www.bollen-energy.be izicool.be +32 11369369 +32 56 92 10 80 RS badkamers D&D Electro Schaapschuur 1 bus 2 - 1790 Affligem +32 53 89 56 50...
- Page 11 11/12 Dealers in The Netherlands: Energie Neutraal Baileystraat 2E - 8013 RV Zwolle www.nrgneutraal.nl +31 854018435 Get Smart Horsterweg 34 - 5975 NB Sevenum www.getsmarthome.exoape.eu +31 619419383 JaRo Elektro Service Maria Stuartlaan 35 - 5361LA Grave www.jaro-elektro.nl +31 651129270 Michiels alles onder een dak Hollandseweg 21A - 5712 RM Someren www.michiels-someren.nl +31 493492320...
- Page 12 12/12 Manufacturer data: RAIO by Spectra Greenville Centrum-Zuid 1111 3530 Houthalen-Helchteren Belgium Tel: +32 11 397 585 Mail: contact@raio.be Web: RAIO.BE Find wiring diagrams, technical charts and installation video via the following QR-code on our website: raio.be/installatie...
