Light SCMI0402-G2 Installation Manual

Installation Guide
SCMI0402-G2
4 channel - 2A Leading edge
phase cut dimmer
Mounting & Installation
SCMI0402-G2 must be mounted in a suitable enclosure to provide
regulatory protection from electric shock hazard as well as protecting the
iCANnet data network from tampering that could lead to reduced network
security.
Ensure selected enclosure provides adequate cooling ventilation.

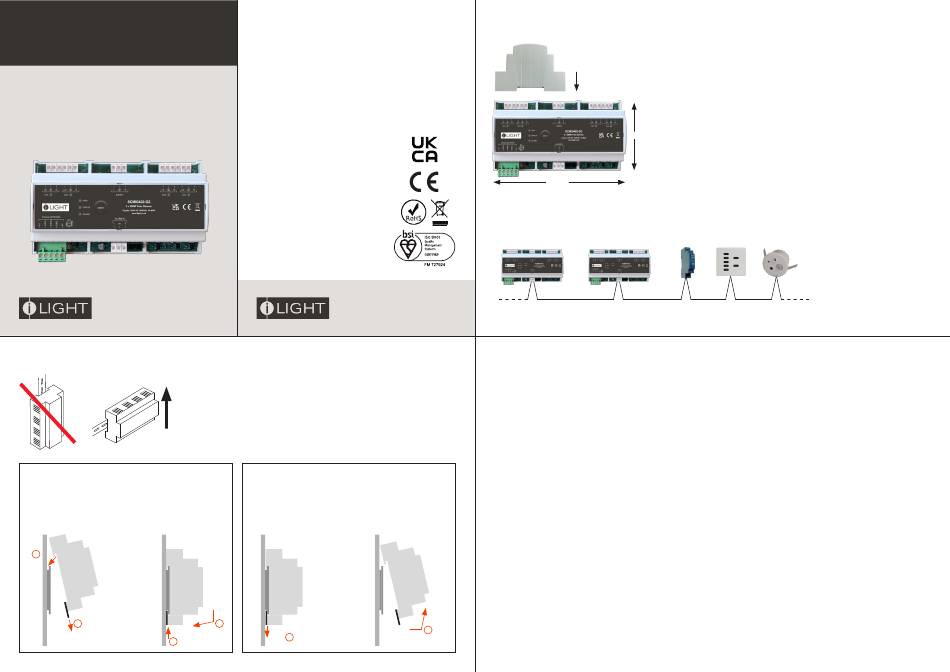

Fixing to DIN rail
1. Fix top clips over DIN rail.
2. Pull down bottom clip using screwdriver.
3. Close module towards DIN rail.
4. Push up bottom clip to fix securely to DIN rail.
1
2
4
iLight
Usk House, Lakeside
Llantarnam Park,
Cwmbran,
NP44 3HD, UK
t: +44 (0)1923 495495
e: enquiries@iLight.co.uk
www.iLight.co.uk
EU Authorised Representative
Cooper Lighting Netherlands B.V.
High Tech Campus
HTC 48
Eindhoven
5656 AE
E&OE. iLight reserve the right to make
changes to the equipment without
prior notice.
© Signify Holding
Doc No: 9850-001031-00
Removing from DIN rail
1. Pull down bottom clip with screwdriver.
2. Lift module away from DIN rail.
3
1
Dimensions
60mm
159mm
Typical Schematic
SCMI0402 SCMI0402
Technical Data
Electrical & Mechanical
Supply: 230 volts -/+ 10%, 50/60 Hz 5A Max
Maximum Device Load: 5Amp @ 50ºc
Maximum channel current: 2A - See channel loading table on page 2 for more information
Channel 1 & 2 (Pair of channels): 2.5A MAX
Channel 3 & 4 (Pair of channels): 2.5A MAX
Load Protection: Provided by installer
Control Supply: 75mA from iCANnet (Device does not supply current to iCANnet)
Terminal Sizes (Capacity per terminal)
Supply/Output screw terminals: 2x1mm
Input screw terminals: 0.2mm 2 to 1mm
Terminal Torque Setting: 0.5Nm
iCANnet™ input/output screw terminals: 5 x 1mm
Input cable length: 30m MAX
Installation: Installation must be carried out by a suitably qualified electrician
Load Data
Load types: Providing control of continuous inductive lighting loads. Suitable for resistive, inductive, LED and low voltage
electronic transformer loads (leading edge dimmable). Please consult with the iLight help desk for additional guidance.
Control Data
Control: Via iLight network connection
Recommended Network Cable: iCANnet
Programming: Via Device Editor software.
Mechanical Data
Weight: 0.4 kg
2
Operating temperature: +2ºC to +50ºC
Relative humidity: 5% - 95% max, non-condensing
IP rating: IP2X
89mm
12 - 15V PSU Control Plate Network Sensor
iCANnet
or 1x 2.5mm or 1x 4mm
2 2 2
2
2
Network Cable
TM
