COMPONENTS INCLUDED
(2) 154604RC 24 TACOMA 2.5 0-1" REAR VS
CDCV RR UNPKG
HARDWARE INCLUDED
(2) 150145 24 TACOMA REAR RESI MOUNT
(2) 605144 3/8-12 X .750 FLANGED SELF TAP
BOLT CZINC
TOOLS REQUIRED
JACK
JACK STANDS
TORQUE WRENCH
RATCHETS
EXTENSION
DRILL
11/32 DRILL BIT
TECH NOTES
1. YOUR ICON SHOCK ASSEMBLIES COME FACTORY CHARGED TO 250 PSI. RELEASING NITROGEN
PRESSURE MAY LEAD TO SHOCK MALFUNCTION AND REDUCED RIDE QUALITY. FAILURE CAUSED BY
LOW NITROGEN PRESSURE IS NOT COVERED UNDER ICON'S WARRANTY POLICY.
2. BE CAUTIOUS WHEN LOWERING THE AXLE WITHOUT THE SHOCKS ATTACHED, THE BRAKE LINES
CAN BECOME STRETCHED AND CAUSE DAMAGE.
3. ESTIMATED INSTALL TIME: 1.5 HOURS
INSTALLATION
1.
Lift vehicle and securely place heavy duty jack stands under the
manufacturer recommended lifting locations for the rear of the vehicle. Take
care when lifting the vehicle and allow 3-4" of ground clearance from the
tire. Remove front tires. NEVER WORK UNDER AN UNSUPPORTED VEHICLE.
Remove the wheels.
2.
Support the rear axle.
3.
Remove the upper nut using an 8mm to hold the stud and 19mm to
remove the nut. [FIGURE 1]
PART #
57808CP
(2) 611008 9/16 RXT HEAVY DUTY STEM
BUSHING KIT
(2) 611051 #36 1.188-2.750 STAINLESS HOSE
CLAMP KIT (4)
SHARPIE
8MM
17MM
19MM
9/16"
5/16" NUT DRIVER OR FLAT BLADE SCREW DRIVER
FIG.1

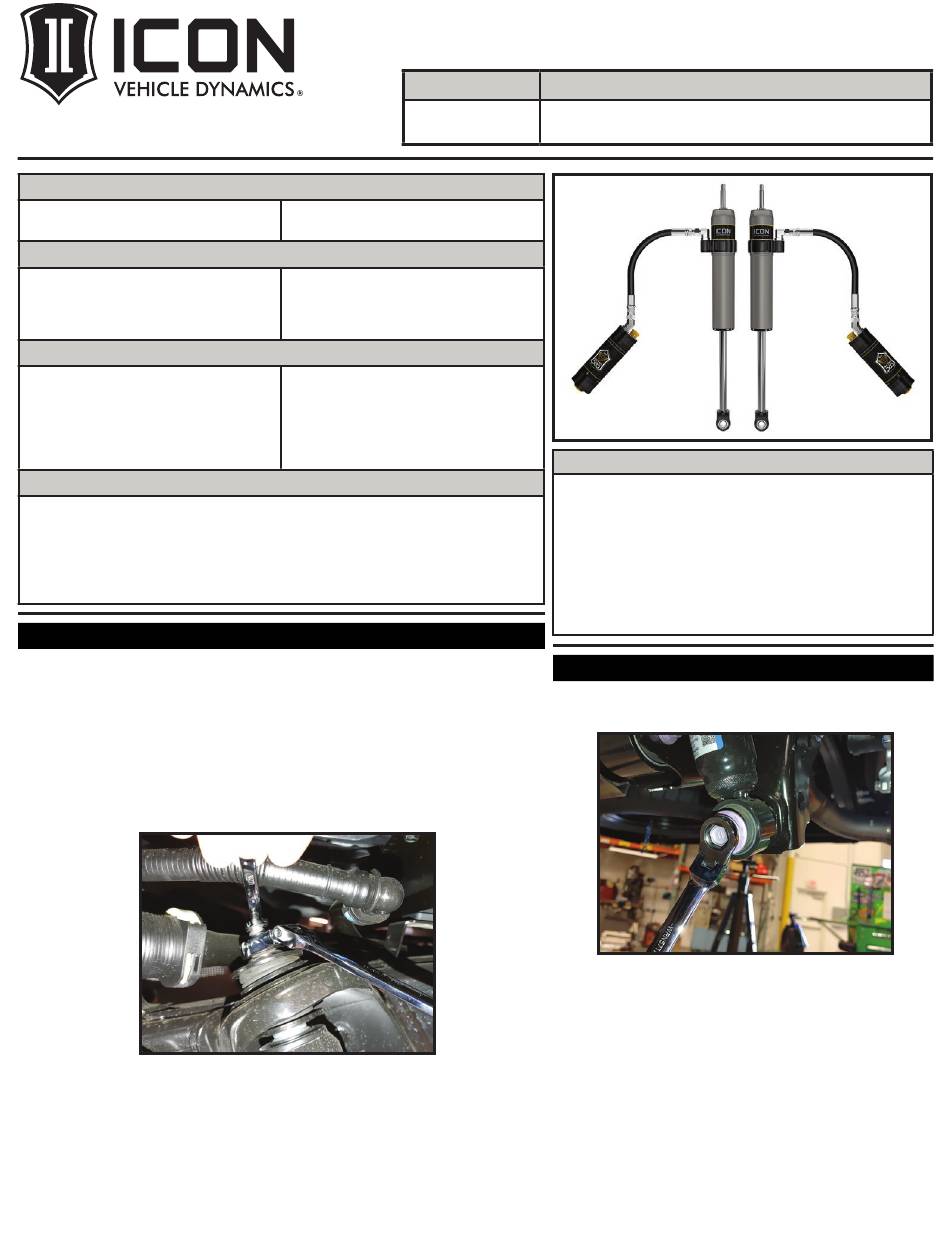

57808CP INSTALLATION INSTRUCTIONS
DESCRIPTION
24 TACOMA 0-1" REAR 2.5 VS
CDCV RR PAIR
WARNING!
** READ ALL INSTRUCTIONS THOROUGHLY FROM START TO FINISH
BEFORE BEGINNING INSTALLATION! IF THESE INSTRUCTIONS ARE
NOT PROPERLY FOLLOWED SEVERE FRAME, SUSPENSION AND TIRE
DAMAGE MAY RESULT TO THE VEHICLE!
** ICON VEHICLE DYNAMICS RECOMMENDS THAT YOU EXERCISE
EXTREME CAUTION WHEN WORKING UNDER A VEHICLE THAT IS
SUPPORTED WITH JACK STANDS.
** ICON VEHICLE DYNAMICS RECOMMENDS ALL INSTALLATION TO
BE PERFORMED BY A PROFESSIONAL SHOP/SERVICE TECHNICIAN.
PRODUCT FAILURE CAUSED BY IMPROPER INSTALLATION WILL NOT BE
COVERED UNDER ICON'S WARRANTY POLICY.
4.
Remove the lower bolt using a 17mm. [FIGURE 2]
4-16-2024 REV.A
FIG.2
1
