DATREND Systems vPad-CO2 Quick Start Manual

Ÿ vPad-CO2 Base Unit
Package Contents:
Ÿ DC Power Supply (3000-096)
Ÿ Multi-blade PS Adapter Set (7500-490)
Ÿ Accessory Bag (7006-067)
Ÿ vPad-A1 Multi-Parameter Simulator System Base and Tablet GUI
Prerequisite:
1

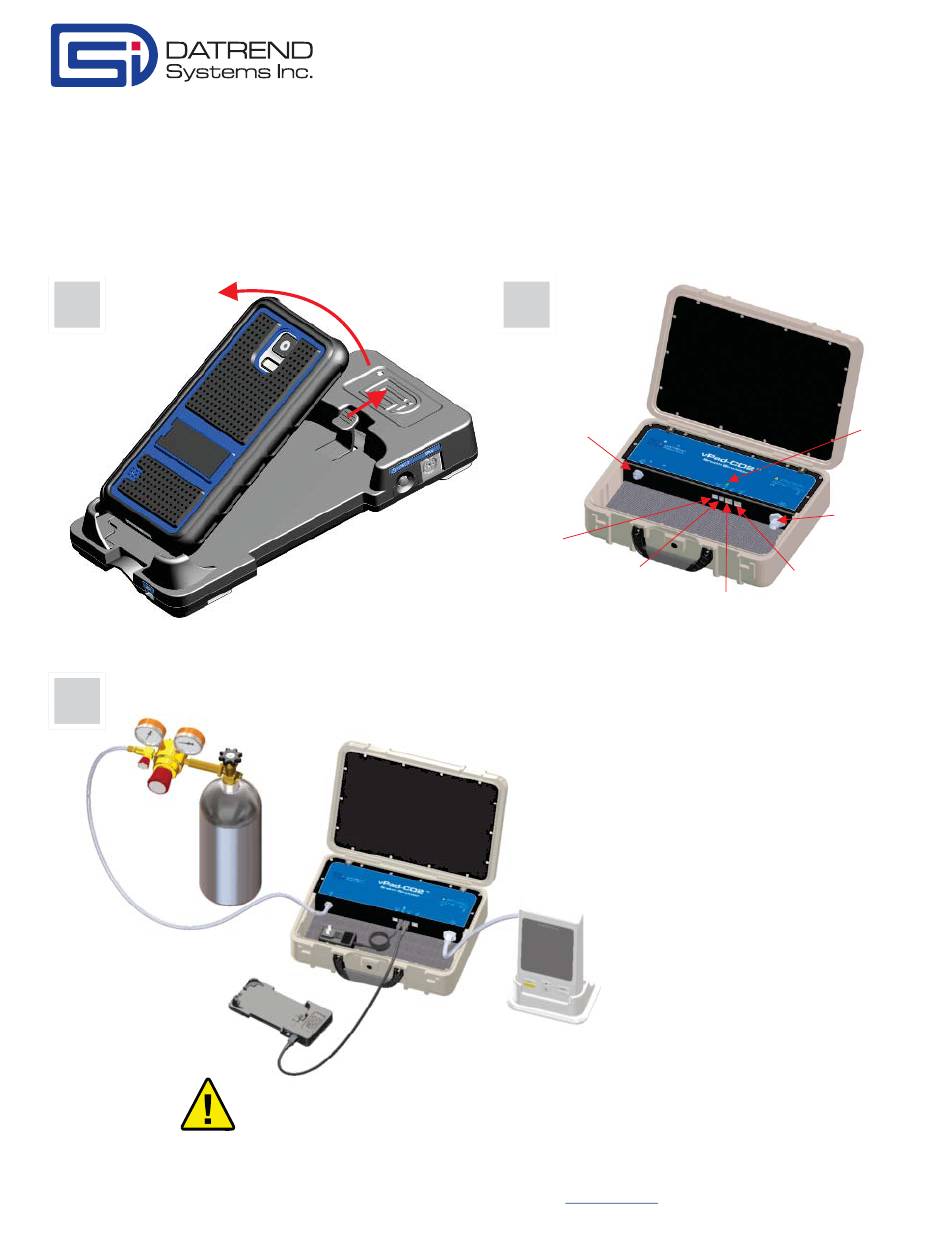

Remove the tablet from the vPad-A1 Base
3
Warning: Compressed gas cylinder must be handled and stored according
to safety regulation.
Datrend Systems Inc.
Unit 130 - 4020 Viking Way, Richmond, BC, Canada V6V 2L4
Phone: 604-291-7747 Fax: 604-294-2355
E-mail: customerservice@datrend.com
MN-1 43b 6100-
vPad-CO2
vPad-A1 ™
Quick
Ÿ 6 Pin MiniDIN M to M (3140-027)
Ÿ Inlet Tubing, 48'' (5020-062)
Ÿ Gas Sampling Elbow (5020-054)
2
CO2 Inlet Port
USB Type B
Remote Control by PC
Get familiar with the vPad-CO2 connections Get familiar with the vPad-CO2 connections
Toll Free: 1-800-667-6557
Web: www.datrend.com
147 vPad -CO2 Quick Start Guide
™ Module for
All-in-One-Simulator
S tart Guide
12V DC
Power Supply
MiniDIN Connector
to vPad-A1 Base
Connect CO2 gas supply to the
inlet port (Max 25 PSI)
Connect vPad-CO2 to the vPad-
Base via MiniDIN Cable
Connect EtCO2 monitor to the
outlet port gas flow
Connect vPad-CO2 to the Power
Outlet via DC Power Supply
(3000-096)
LED Power
Indicator
Test Gas Outlet
MiniDIN Connector
to SpO2 Probe
