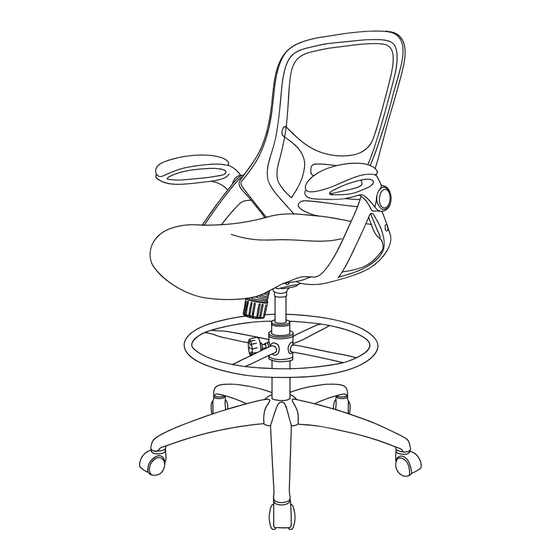

- Page 1 HYLONE Hylone High Back Drafting Chair www.hyloneoffice.com support@hyloneoffice.com youtube.com/watch?v=mbHQOSPXiNQ...
- Page 2 Instruction Manual Contents Make sure that the package contains the following parts: Back Cushion(1) Seat Cushion(1) Arms(2) Lever Seat Plate(1) Foot Ring(1) Gas Lift(1) Star Base(1) Casters(5) Bolts M6*40mm(4) Bolts M6*20mm(6) Cap Covers(4) Wrench(1) Washer M6*18mm(8) Washer M6*15mm(4) Bolts M6*30mm(2) Centimetre...
- Page 3 Assembly Instructions Step 4: Turn the star base upside down, then Step 1: Attach the arms to the seat cushion press the casters into the holes at the end of using four (B) bolts, and four (F) washers using each base leg; the wrench (E) Note: DON’T fully tighten the Insert the gas lift into the center hole of the bolts first,...
- Page 4 Adjustment Adjusting the seat height Adjusting the foot ring To raise your seat, lean forward to lift your Turn the knob on the foot ring counter-clockwise, then the foot ring can body weight from the seat, then pull up the lever.
-
Page 5: Safety And Compliance
Safety and Compliance • Use care when handling • Please read the instructions completely before assembly • Remove all parts from the carton and ensure all parts are included prior to assembly • Assemble the chair on the carton or carpet to prevent scratching the chair •... - Page 6 HYLONE Since1998 For any problem,email us:support@hyloneoffice.com 1-Year Limited Warranty & Lifetime Technical Support Guaranteed If you are happy for this product, we appreciate your share on Amazon www.hyloneoffice . com su ppor t @ hylon e offic e .c om...
