Summary of Contents for CropScan 3300H

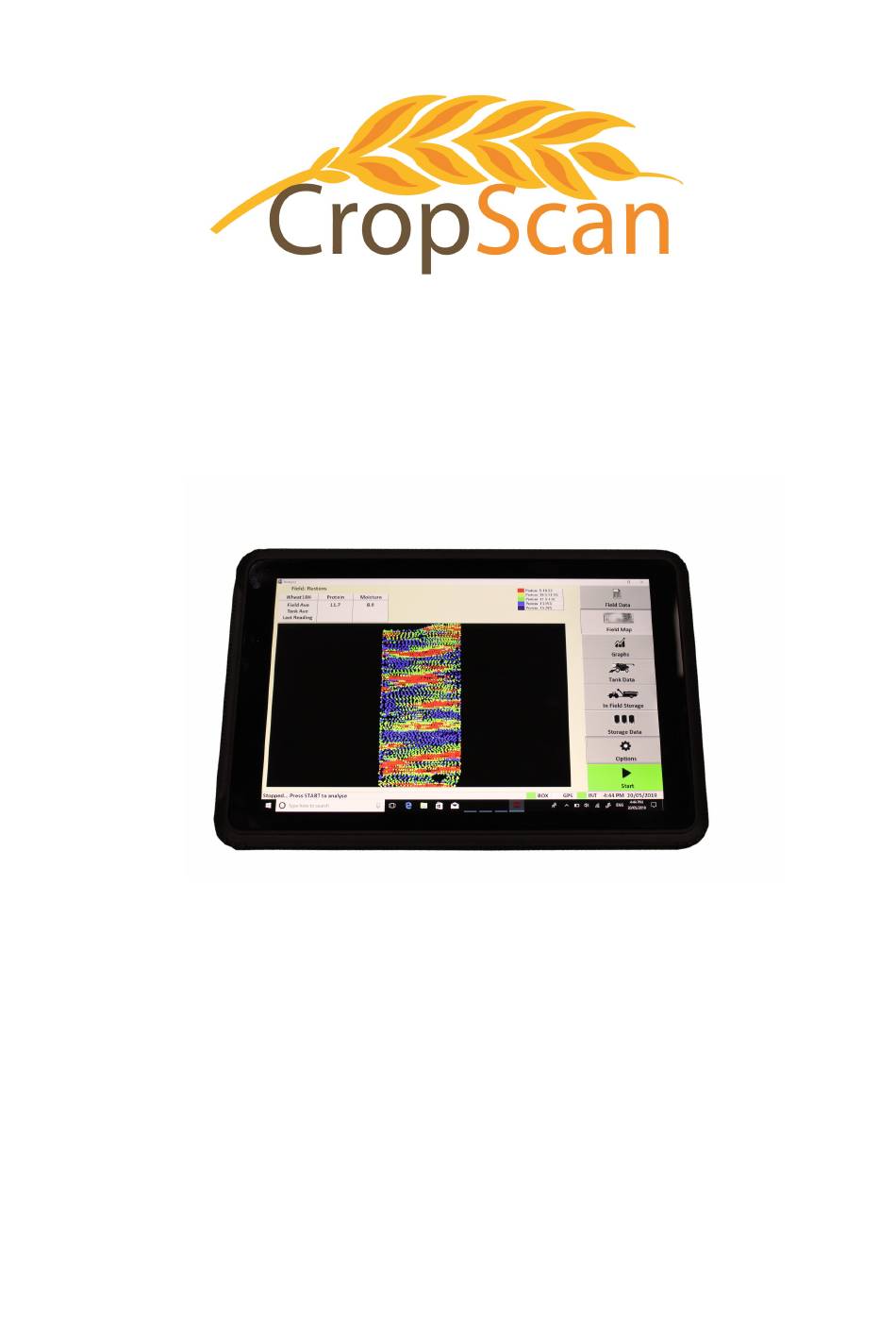

Page 1
CropScan 3300H On Combine Grain Analyser User Guide User’s Guide CropScan 3300H On Combine Grain Analyser REVISION HISTORY Initial Prototype November 2012 Rev. I March 2014 Rev. II August 2015 Rev. III March 2016 Rev IV August 2016 Rev V...
CropScan 3300H On Combine Grain Analyser User Guide Table of Contents Product Description Overview Description Technology Analysis Software Components Operation Overview Daily Checks Power On Start Analysis Grain Logistics Operation Stop Analysis Shut Down Run Screen Descriptions Overview Field Data...
Page 3
CropScan 3300H On Combine Grain Analyser User Guide Data Transfer Menu Import Calibration Export Data Import Yield Data Downloading Software Diagnostics Menu Overview 100% Lamp Signal Test Noise Hardware Test Temperature Test Sample Sensor Test Outlet Motor Test Auger Sensor Test...
Protein, Oil, Moisture, Starch and Fiber in grain as it travels up the clean grain elevator on a combine harvester. The CropScan 3300H comprises of a Sampling Head, a Fibre Optic cable, a NIR Spectrometer and a in cabin Display. The Sample Head is mounted onto the clean grain elevator.
CropScan 3300H On Combine Grain Analyser User Guide Technology The CropScan 3300H is a full spectrum NIR Spectrophotometer. The CropScan 3300H uses a linear diode array detector and a spectrograph to provide the NIR transmittance spectrum from 720-1100 nm. Within...
This operator guide explains in detail each run screen operation and function. Daily Checks Prior to using the CropScan 3300H Grain Analyser the following daily checks are recommended to achieve optimal results. Figure 2-1. Sample Head Lamp and FOP Lens •...
3. Beans = 23mm and Motor Sensor Down 4. Corn = 30mm and Motor Sensor Down Once the START button is pressed, the 3300H lamp will turn on and cycle the outlet flap to the closed position. Once the chamber is filled with grain and the...
CropScan 3300H On Combine Grain Analyser User Guide Grain Logistics • When the grain tank is full and the out loading auger extends, a proximity sensor is activated. The Grain Logistics window will appear as shown in Figure 2.9 which allows the operator to select a storage location from a pull down list, enter the volume in tonnes, Kg’s or bushels and the number...
CropScan 3300H On Combine Grain Analyser User Guide Blending Estimator The Blending Estimator is available if two or more storage locations have been selected to transfer. By pressing the add weight button for each storage location the transferred grain will simulate and display the blend and transferred volume in the truck location.
CropScan 3300H On Combine Grain Analyser User Guide Run Screen’s Overview The data can be viewed in five different views. Display Data, Field Map, Graphs, In-field Storage and Storage Data. Click on the Tab to display each display format. The averaged data is formatted consistently across the five views to make data interpretation quick and easy.
CropScan 3300H On Combine Grain Analyser User Guide Truck Data This function can be used by farmers who do not have On Farm Storage and all the Grain from the field are loaded into trucks and delivered to the Elevator. Select the option “Truck Data Logistics View”...
CropScan 3300H On Combine Grain Analyser User Guide Option Menu’s Overview The Setup Menu allows operators to setup the CropScan Display to suit the operators farming operation. The operator can import Field ID’s, create Storage ID’s and storage icons, adjust display time, manage data calendar folders, setup and test GPS messages, add a Wi-Fi Hotspot sign in to the CropScanAg Cloud account.
CropScan 3300H On Combine Grain Analyser User Guide 4.6 Field ID’s The CropScan Display can import three Client Farm Field formats to make setting up the Field ID’s easy: 1. CN1 Folder –CNHi Format 2. AgGPS—Trimble Format 3. JD Boundary Shape Files—JD Format Client Farm Field Import •...
• Press the Storage IDs button and setup the names for the different grain storages locations. This is only needed if the CropScan is used for In Field Storage or when outloading grain to a silo/bin. • To add a new storage, select the desired type and the press Add Storage.
CropScan 3300H On Combine Grain Analyser User Guide 4.9 GPS Settings The CropScan 3300H interfaces to the combine’s GPS receiver. The CropScan Spectrometer Cable provides a serial cable connection between the combine’s GPS receiver and the CropScan 3300H Spectrometer. The GPS receivers NMEA message and baud rate must be set up to output a message and rate.
Select Crop Weight units ( Tonnes, Kg’s or Bushels) Figure 4-17. Setup - Cart Weight Grain Logistics Activation The CropScan 3300H On Combine Analyser has a unique software option called Grain Logistics. As grain is harvested, the Logistics Software provides a means of managing the quantity and quality of grain directly from the combine.
CropScan 3300H On Combine Grain Analyser User Guide 4.11 Options—Cart Weight Note: The Cart Weight feature requires a license key for operation. Contact your local dealer for information and pricing. The Weight Cart Option is design to interface with the Cart’s Display weight output via Bluetooth or Serial protocols.
Page 18
CropScan 3300H On Combine Grain Analyser User Guide 3300H Reference Difference Calibration Sample ID Protein Protein Protein 10.5 -0.5 Overview 11.8 11.6 -0.2 12.6 12.6 The CropScan 3300H CropScan Display stores the 13.2 calibration models for each grain type. The models 13.8...
Page 19
Precision is defined as the ability of an analyser to Figure 5-5. CropScan VS Reference X Y Plot measure the same sample twice. Typically 10 samples of grain are analyzed in duplicate on the CropScan. The Standard Deviation of Differences between the Differ-...
Calibration Mode or Auto-Calibration routines. Calibration Mode Calibration Mode is an advanced function which allows the CropScan to operate like a bench top NIR. The scanned samples allow a sample ID to be entered to the pop up keyboard and results recorded.
CropScan 3300H On Combine Grain Analyser User Guide Calibration Adjustment Calibration Adjustment enables operators to increase or decrease Calibration Models Slope ad Bias settings to align with local elevator sites. Operators can toggle the protein bias settings up or down to align or carry out a 5 sample Slope and Bias Adjustment.
Fibre optic cable which is a major optical component a Crop Type validation is required. A pre-harvest Crop Type validation is suggested to check and fine tune the CropScan 3300H to a set of 5 grain samples, much the same way as any NIR Bench Figure 5-18. Options Window Top Analyser is check at installation or annually.
Page 23
If the SEP box is Green and the results are greater than 0.3% press SAVE and this will apply the New Bias setting. • If the SEP box is Red the CropScan requires a Slope and Bias Adjustment, contact CropScan support for assistance. support@nextinstruments.net •...
CropScan 3300H On Combine Grain Analyser User Guide Slope and Bias Calculator Overview The S and B calculator has been designed to simplify the calibration calculation process. The simple to use software quickly plots out CropScan results vs. reference results giving the following statistical...
CropScan 3300H On Combine Grain Analyser User Guide S and B Calculator Reports The Slope and Bias Calculator has the ability to develop quick reports. Once all the values have been entered into the S and B Calculator, the Reports button can create a customized report, with company logo, address, phone and email details.
CropScanAg Cloud account is setup and signed in the CropScan The Data Transfer menu is designed to allow operators to Export and Import data or files to the CropScan Display or CropScanAg Cloud. The following data can be imported to the display: Options Window.
CropScan 3300H On Combine Grain Analyser User Guide Export Data (Note: Create a Folder named Data on the root drive of the USB) • Insert USB Stick into CropScan Display USB port • Press the Options Menu • Press the Data Transfer button •...
CropScan 3300H On Combine Grain Analyser User Guide Diagnostics Overview Diagnostics is a troubleshooting tool used to test the operation of the CropScan 3300H sensors and motors. These tools provide a service person with a means of diagnosing problems with in the system. Unless instructed by your Technical Support agent, these tools should not be used by the operator.
Figure 8-1. Options Window Screen Dimming Dimming refers to the brightness of the screen. Click the Dimming Options Tab to set up the CropScan Display Screen Dimming Times. Factory default is 6:00am for Sunrise and 8:00pm for Sunset. Enter the time to activate the screen dimming by setting Night Starts time.
CropScan 3300H On Combine Grain Analyser User Guide File Explorer Menu Overview The File Explorer is design to allow operators in the Window’s part of the CropScan Display. Opening File Explorer Window Figure 9-1. Options Window The File Explorer button will navigate to the Windows File Explorer.
CropScan 3300H On Combine Grain Analyser User Guide 10.0 TeamViewer 10.1 Overview A copy of TeamViewer is installed on the CropScan Display. This software allows the Technical Support agent to connect to the CropScan Display through the internet and to be able to assist in setup and problem solving.
User Guide and view the loaded tutorial videos. 11.2 Viewing the CropScan User Guide Figure 11-1. Options Window Click on the Open Manual button to view the CropScan 3300H On Combine Grain Analyser's User Guide. 11.3 Viewing CropScan Tutorials Several video tutorials are loaded into the CropScan Display.
CropScan 3300H On Combine Grain Analyser User Guide 12.0 Maintenance The CropScan 3300H On Combine Analyser has been designed to make maintenance as easy as possible. Before attempting any maintenance, disconnect any external power supplies and ensure the instrument is turned OFF.
CropScan 3300H On Combine Grain Analyser User Guide Press the Options Tab Press the Diagnostics Button Press the 100% Button and check that the lamp is- turned ON Press the Scan Spectra Button Press the Sequential Button Check that the spectra is clean and the maximum value is between 2000 and 3500 units as shown in Figure 10.6.
CropScan 3300H On Combine Grain Analyser User Guide 12.5 Motor Replacement • Remove the Sample Head front cover by releasing the 2 x latches and un screwing the 4 x M4 Countersunk hex hinge screws and remove the Sample Head Cover.
CropScan 3300H On Combine Grain Analyser User Guide 12.6 Motor Sensor • Remove the Sample Head front cover by releasing the 2 x latches and un screwing the 4 x M4 Countersunk hex hinge screws and remove the Sample Head Cover.
CropScan 3300H On Combine Grain Analyser User Guide 12.7 Sample Sensor • Remove the Sample Head front cover by releasing the 2 x latches and un screwing the 4 x M4 Countersunk hex hinge screws and remove the Sample Head Cover.
CropScan 3300H On Combine Grain Analyser User Guide 12.9 100% Lamp Signal • Make sure the sampling head is clean • Press the Options Menu • Press the Diagnostics button • Press the 100% Lamp Signal button and check that the lamp is turned ON •...
CropScan 3300H On Combine Grain Analyser User Guide 12.14 Master Reference Scan After installation, run the master reference scan routine to calibrate the lamp from cold to hot as the spectrometer box heats up. Ideally the system is calibrated plus or minus 10 degrees of the set operating temperature of the spectrometry box.
CropScan 3300H On Combine Grain Analyser User Guide 12.15 Foreign Matter Foreign matter, such as chaff, dirt and straw, will affect the results. If the thrashed grain flowing through the Remote Sample Head contains excessive Foreign Matter then adjust the settings for the harvester to reduce the trash.
Warranty 13.0 The CropScan 3300H On Combine Analyser is warranted for 12 months. The warranty includes all parts and labour for the repair of any component that has failed within the recommended operating conditions. If there is damage to the instrument due to inappropriate handling, then the warranty will be voided.
