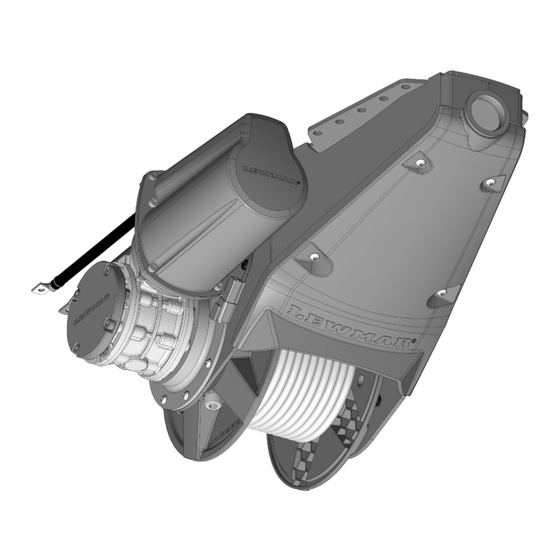

    Pontoon Anchor Winch Installation and Owner’s Manual (For Aftermarket Applications) Introduction The Venta Pontoon Anchor Winch is used to raise and ™ lower the anchor with ease at the touch of a button. NEVER DROP THE ANCHOR WHEN SWIMMERS OR In this manual the term “rode”...
  • Page 3: Parts List

    Venta Pontoon Anchor Winch Installation and Owner’s Manual (For Aftermarket Applications) Parts List Additional Components Required for Installation and Operation A bow-roller and anchor are required for operation of the Venta winch and must be purchased separately. The ™ following tables suggest a compatible bow roller and compatible anchors.
  • Page 4: Operational Specifications

    A pontoon bow roller and anchor are recommended stresses involved in recovering the anchor. for use with the Venta winch. For best results, bow ™ roller part number 2022375783 or extendable bow roller...
  • Page 5 Venta Pontoon Anchor Winch Installation and Owner’s Manual (For Aftermarket Applications) 1. Switch off the boat’s battery power supply. 4. The lead from the bow roller should be fed horizontally back to the winch rope feeder, and not at an angle (Fig. 2).
  • Page 6: Installing The Winch And Bow Roller To The Aluminum Beams

    Venta Pontoon Anchor Winch Installation and Owner’s Manual (For Aftermarket Applications) Installing the Winch and Bow Roller to the 4. Dry fit the bow roller to the beams noting the marked Aluminum Beams location of the winch. The bow roller should be installed 1.
  • Page 7: Installing The Controller

    Venta Pontoon Anchor Winch Installation and Owner’s Manual (For Aftermarket Applications) 5. The lead from the bow roller should be fed 8. Fasten the bow roller to the aluminum beams the six horizontally back to the winch rope feeder, and not at an button head fasteners included with the winch.
  • Page 8: Installing The Switch

    Venta Pontoon Anchor Winch Installation and Owner’s Manual (For Aftermarket Applications) NOTE: Printer settings may vary. To ensure the printed to the chain using a suitable shackle or swivel. template is accurate, measure the diameter of the holes 4. Installation is complete.
  • Page 9: Wiring

    Venta Pontoon Anchor Winch Installation and Owner’s Manual (For Aftermarket Applications) Wiring Appropriate Cable Gauge/Size by Cable Length Up to 14 m Up to 40 ft 15-24 m 41-66 ft 16mm^2 4 AWG 25mm^2 2 AWG COMPLY WITH ALL LOCAL WIRING AND ELECTRICAL SAFETY REGULATIONS.
  • Page 10: Wiring Diagram

    Venta Pontoon Anchor Winch Installation and Owner’s Manual (For Aftermarket Applications) Wiring Diagram Winch Switch Slack line sensor cable Chain sensor cable Circuit breaker Control Box Disconnect isolator 12V DC battery Fig.10 lippert.com 432-LIPPERT (432-547-7378) Rev: 10.20.23 CCD-0007416...
  • Page 11: Operation

    Venta Pontoon Anchor Winch Installation and Owner’s Manual (For Aftermarket Applications) Operation Prior to Operation The winch includes a slack line sensor that prevents the KEEP LIMBS, DIGITS, CLOTHING, AND HAIR rope jamming or entangling during deployment. The CLEAR OF WINDLESS, RODE, AND ANCHOR winch will stop paying out if it senses slack in the line.
  • Page 12: Raising The Anchor

    Venta Pontoon Anchor Winch Installation and Owner’s Manual (For Aftermarket Applications) Raising the Anchor 3. To aid recovery, slowly and safely power the vessel at idle speed towards the anchor but not over and beyond as this can risk entanglement and damage to topsides.
  • Page 13: Troubleshooting

    Remove any debris and free any snags. Improper rope used in unit Only use approved Lewmar rope. Rode is backwound Switch/button pressed for too long Press the “Up” button for 5 seconds to unspool...
  • Page 14: Limited Warranty And Key Terms Of Supply By Lewmar

    Limited Warranty and Key Terms of Supply by Lewmar Lewmar warrants that in normal private Lewmar’s products are intended for D PROCEDURE pleasure boat usage and with proper use only in the marine environment. Notice of a claim for service under this...
  • Page 15: Switch Mounting Template

    Venta Pontoon Anchor Winch Installation and Owner’s Manual (For Aftermarket Applications) Switch Mounting Template NOTE: Printer settings may vary. To ensure the printed template is accurate, measure the diameter of the holes when printed. The diameter should be 70mm ”). It is recommeded...
  • Page 16 Venta Pontoon Anchor Winch Installation and Owner’s Manual (For Aftermarket Applications) For Product Support contact: Lewmar Havant Plant No. 404 Southmoor Lane Havant P09 1JJ United Kingdom T: +44 (0) 23 9247 1841 Email: techsupport@lewmar.com The contents of this manual are proprietary and copyright protected by Lippert. Lippert prohibits the copying or dissemination of portions of this manual unless prior written consent from an authorized Lippert representative has been provided.
