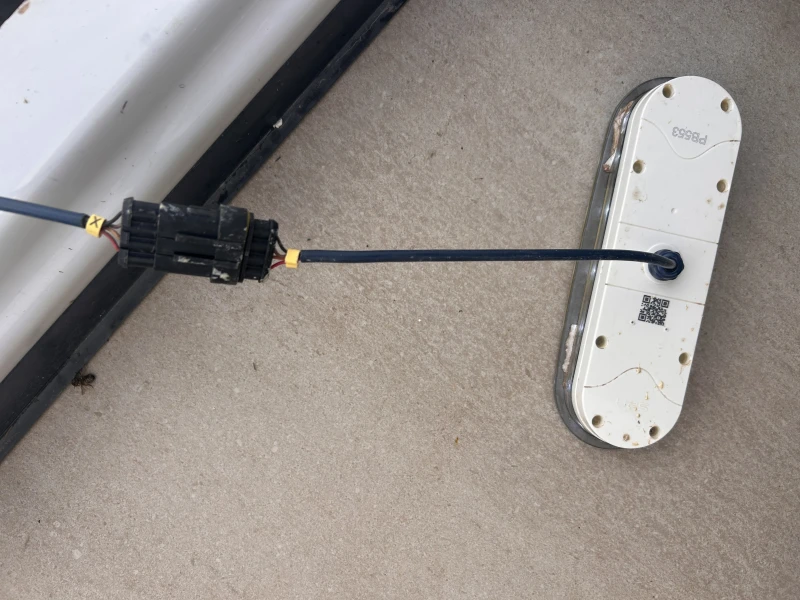

User image 6803fb4bcc741

Summary of Contents for Balboa JOYONWAY PB563

  • Page 1 PB563 Operation instruction Android download iPhone download Depending on the system configuration, some of the content mentioned in this manual V0.2 English may not appear on your system.
  • Page 2: Table Of Contents

    Contents Warning WIFI: 01-02 Warning Operating Frequency: 2012-2472MHz Output Power: Max 20dBm Control Panel Specifications and Installation Instructions 03-06 RF Hardware Version: xxx RF Software Version: xxx Button description 07-08 EMF: These devices comply with RF specifications when the device is used at 20 cm from your body.
  • Page 3: Warning

    Warning Control Panel Specifications and Installation Instructions This device complies with Part 15 of the FCC Rules. Operation is subject to the following 3.5 inch TFT color display screen, 10 capacitive touch buttons two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 4 Control Panel Specifications and Installation Instructions Control Panel Specifications and Installation Instructions Control Panel Installation Instructions [ 9.13" ] 232.00 mm Front view [ 1.20" ] 30.50 mm Left view [ 8.37" ] Make a hole in the appropriate position of the hot tub according to the size of the control 212.50 mm panel, and clean the surrounding area of the hole, especially burrs, debris, etc., to ensure that the control panel can stick on firmly.
  • Page 5: Button Description

    Control Panel Specifications and Installation Instructions Button description Warning Warning 1. Please connect power by strictly following the Please set the date and time SPA wiring diagram. before using the SPA control system. 2. Please do not power on the SPA until the water level reaches the water level line inside the tub.
  • Page 6 Button description Main Interface introduction Light shortcut button Main interface There are two modes for the lights. In the on/off mode, press the button to turn the lights on and off. In RGB mode, press the button to turn the lights on and off,and control lights pattern in lights interface or set lights color in lights color interface.
  • Page 7: Main Interface Introduction

    Main Interface introduction Music Bluetooth is connected The circulating pump is in operation Pump 1 Music Pack number: Displayed when multiple packs are connected at the same time Pump 2 Blower User mode in operation Light off Pump 3 Light on Pump 4 Current water temperature ℉/℃.
  • Page 8: Lights

    Lights Lights Music connection steps: Mode toggle button. Select the button and press the “ ”button to toggle On the main interface, press the button " " to activate the cursor, and then press "Normal"/"Water Temp." mode. " " " "...
  • Page 9: Setting Instructions

    Setting instructions Setting instructions WHITE Less than 45°F. PURPLE Temperature unknown because the water has not been cycled. Approximately less than Heat&Cool 7.2℃. Clim8zone Filter Color interface(RGB mode) General User Mode Wifi Custom colors Overview Customize the color palette Confirm the Save button Up button Information (You can choose colors from 359 –...
  • Page 10: Settings / Heat&Cool

    Setting instructions Setting instructions (3)Cycle Time How to adjust the heating time period: First press the 1.2.1 Settings / Heat&Cool button " " to select number " ". Then press the button " " or " " to activate or deactivate this time period.
  • Page 11: Settings / Filter

    Setting instructions Setting instructions (1)Clim8zone Set the heat pump mode. Select "Clim8zone", press the 1.2.3 Settings / Filter button " " to cycle through Disabled/Heat Only/Cool Only/Heat&Cool. Disabled: The heat pump does not operate in any Filter circumstances. The heat pump only operates the heating Heat Only: function.
  • Page 12: Settings / General

    Setting instructions Setting instructions (1)Date&Time (2)Filter Life Adjust the date and time. Select the "Date&Time", and press On the Filter usage interface, select the "Filter Life" , the button " " to enter this interface, then press the press the " "...
  • Page 13: Settings / User Mode

    Setting instructions Setting instructions (4)Language Language change: select the "Language" function, and (6)Reset Setting Reset: select the "Reset Setting" function, and press the press the button " " to enter this page. Choose the button " " to pop up a window. Press the button " "...
  • Page 14: Settings / Wifi

    Setting instructions Setting instructions 1.2.7 Settings / Overview 1.2.6 Settings / Wifi Wifi Overview Display current temperature WiFi WiFi is turned off Display current voltage WiFi WiFi is in a hotspot state Display current power WiFi is connected WiFi Display changes in temperature Connection record cleared and power within 24 hours WiFi...
  • Page 15: Panel Warning Information

    Panel warning information Panel warning information When there are some states that require user attention in the control system, the control F3:Water temperature Water temperature too high panel will display warning information of the state on the control panel. If there are is too high The control system has detected that the several types of information that need to be displayed at the same time, these information...
  • Page 16 Panel warning information Panel warning information F9:System setting error System settings error F14:Heater PT temperature Heating tube protecting temperature sensor disconnected Reason: The system configuration item read sensor is disconnected from the motherboard memory by the control The control system has detected that the heating system after power on was verified not correct.
  • Page 17 2. Check the communication cables between the main Action: board and Balboa system 1.Check the water flow switch and replace it if it is 3. Check whether the Balboa system software matches faulty Heat Pump ER10: Communication fault of frequency conversion module 2.Check the water valve and the temperature difference...
  • Page 18 Panel warning information Panel warning information Heat Pump ER16: Heat Pump ER29: Outer coil pipe temp. Error Return gas temp. Error Cause: Cause: Outer coil pipe temp. Return gas temp. Error The sensor plug is in poor contact or off, or the sensor is The sensor plug is in poor contact or off, or the sensor is Error damaged...
