Ultra Legs
are a hydraulic leg lift that attaches to your pontoon, giving you the freedom and
®
range to take your lift anywhere you can take your pontoon. The Twin-Tube model operates
with two sets of legs, each set is strengthened by a reinforced crossbar and holds a sturdy
footpad. The Tri-Toon model comes complete with four separate legs. When not in operation,
the legs nestle within inches of the deck of your pontoon, invisible to the unknowing eye, yet
when operating, Ultra Legs
of the water in nearly any shallow water situation. Rocks, muck, wind and current are no match
for your new lift. Welcome to Ultra Legs
ATTENTION:

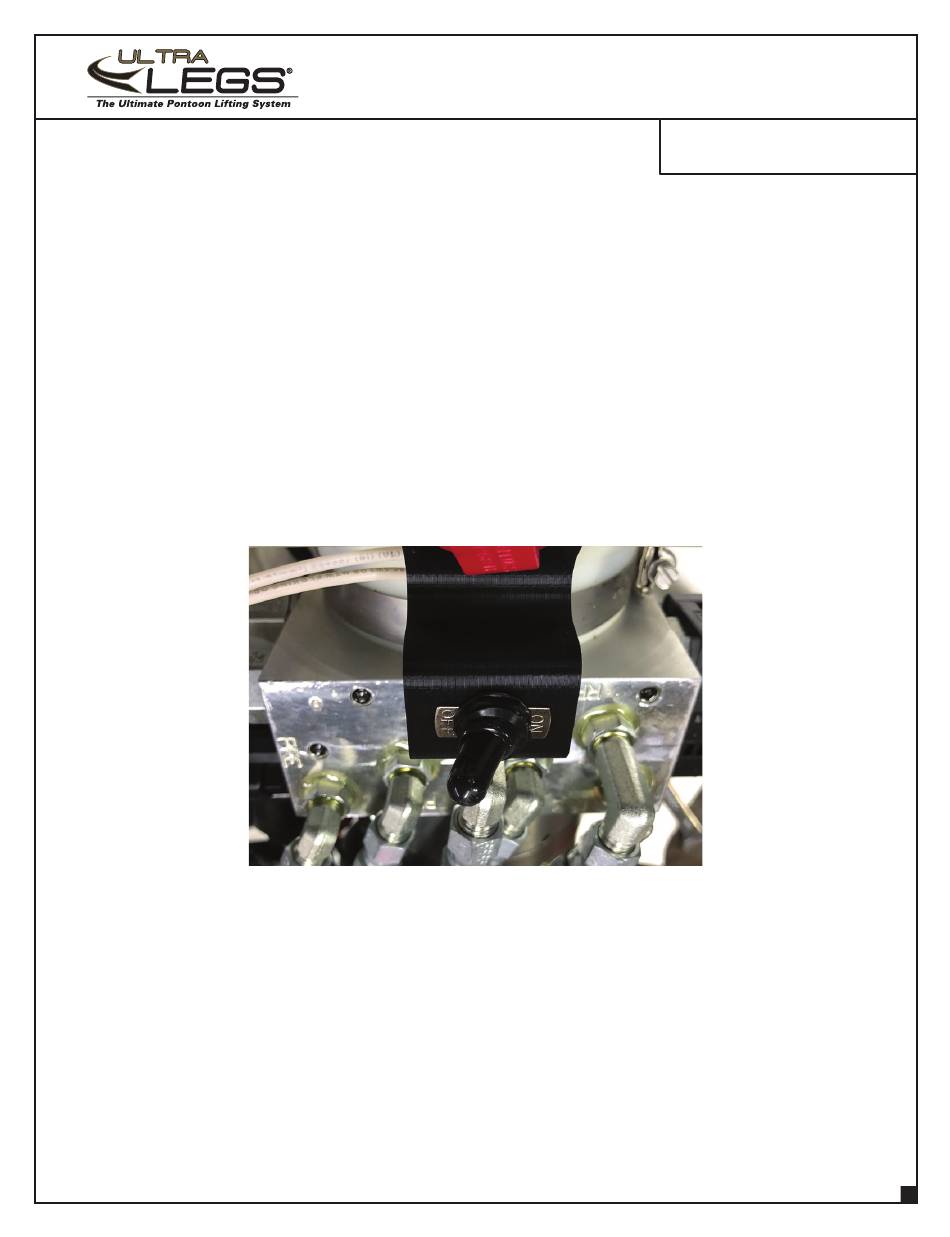

As an improvement for 2021 we are introducing a new power switch to each Ultra Legs system.
This will include a switch installed to the hydraulic pump and will allow for shutting off the
controllers when not in use. If a customer requests, there will be a Dash Switch kit 3006.4725
offered separately for use with installing a power switch on the dash of the boat. This will help
eliminate any instances where a remote could run on its own by eliminating power from the
remote completely. We are hoping this offers a more user friendly experience for everyone and
we are looking forward to making more improvements in the future.
CAUTION:
Installation of Ultra Legs
a minimum of two people and requires access to the underside of the pontoon receiving the
Ultra Legs
. Under no circumstances should installation be attempted in water as severe injury,
®
drowning or death may occur. Install only in a well-lit area on a hard, flat surface. Ultra Legs
require at minimum six feet above and in front of your pontoon to check product operation
during installation. Always wear appropriate protective equipment.
Do not begin installation until these requirements have been met.
gives your boat up to six feet of lift, keeping it safe, secure and out
®
.
®
should be done only by trained and authorized professionals, needs
®
www.ultralegs.com
Ultra Legs
Tri-Toon
®
Installation Guide
3006.4611
®
1
3501ex0120
Advertisement
Related Manuals for ULTRA LEGS Tri-Toon
Summary of Contents for ULTRA LEGS Tri-Toon
- Page 1 . Under no circumstances should installation be attempted in water as severe injury, ® drowning or death may occur. Install only in a well-lit area on a hard, flat surface. Ultra Legs ® require at minimum six feet above and in front of your pontoon to check product operation during installation.
-
Page 2: Equipment Checklist
Do not connect a pair of 12 Volt batteries in series (24 Volt). Ultra Legs Floor Jack: ® Ultra Legs offers a floor jack specifically designed to make installation of Ultra Legs easier. ® ® Contact Ultra Legs for more information. -
Page 3: Installation
• Place pontoon securely onto blocks on a flat, clean and dry surface with adequate clearance above and in front of boat. Area should be free of obstructions. A minimum of two people should be used in the installation of Ultra Legs . Blocks should raise the pontoon 24” off the ®... - Page 4 6. Mark for the back of the front legs the most forward crossmember that the rear of the front leg can be attached to. A leg is 94-1/4“ long, so measuring from the rear most of a crossmember, the leg can not be extending past the front deck of the boat. Determine where the rear edge of the crossmember that you will attach the rear most part of the front legs to and mark “B”...
- Page 5 8. Measure forward from each mark “B” 53 inches and mark in the center of the two lines “F” or “4” on installs that are over/through sheeting. This is where the forward most hose fitting on each leg will be, and this is where your hoses will be routed for each leg. *picture #3 Mark where your 4”...
- Page 6 9. For installations over sheeting, go to the outside of the boat and use a flashlight, and phone camera if possible, to peek above the sheeting and in between each crossmember to look for any obstructions that might affect the installation of legs and routing of cables and hoses. If there are obstructions to routing or obstructions in between the crossmembers where your 53”...
- Page 7 11. Now that you have determined where the hoses will need to go to each leg and you can begin routing them from the pump location to each leg. Use the help of a wire fish tape when having difficulty. Always take the shortest route possible (also true for running battery cables).
- Page 8 13. The 96” hoses will be run across from the 4” hole (or “F” mark) in the front on the same side as pump to the 4” hole (or “F” mark) on the opposite side the boat. On the same side as the pump, this hose will get a “T”...
- Page 9 18. Connect and secure the hose ends remaining in the compartment to the appropriate hose fittings on the Power Unit. a. DRE: Driver Rear Extend – White b. PRE: Passenger Rear Extend – Orange c. RR: Rear Retract – Orange/White d.
- Page 10 23. For legs being installed over sheeting, measurements will need to be taken to determine where the center of each crossmember will be that a leg will be attached to. Measuring from the outside of the boat, and starting with the rear most crossmember where we marked “B”...
- Page 11 24. Always drill out and rivets or remove any fasteners that might prevent a flush mount. 25. Before going to install the legs and after you have pre-drilled your holes in each, remove the fitting plugs in the cylinders and install 90 degree fittings facing each other in each leg.
- Page 12 26. After all measurements have been made and your holes have been pre-drilled in the legs, lift one leg at a time on to the jack fixture and align the leg between the chalk lines and flush with your “B” mark. Typically it is best to attach the rear legs first. When lifting each leg up to the underside of the boat, place the foot or so of the two hoses that you left hanging underneath into the opening in the leg where the hose fitting is, 53”...
- Page 13 28. Once the legs are hanging down you can attach each hose accordingly. The colored hose for each leg is the extend and should be brought down the lower fitting and wrapped around it, coming back up and connecting to the 12” hose installed on the upper fitting (extend).
- Page 14 TRI-TOON 8” Part No. 3006.7966 252” Hose Part No. 3006.8032 Part No. 3006.8032 Purple 12” Hose 12” Hose Part No. 3006.7975 T-Fitting Part No. 3006.8029 360” Hose Part No. 3006.8026 Part No. 3006.8035 Brown 252” Hose 102” Hose Brown/Purple Side View Open 70”...
- Page 15 Part No. 3006.7966 252” Hose Part No. 3006.8032 Part No. 3006.8032 Purple 12” Hose 12” Hose Part No. 3006.7975 T-Fitting Part No. 3006.8029 360” Hose Part No. 3006.8026 Brown Part No. 3006.8035 252” Hose 102” Hose Brown/Purple Part No. 3006.7975 T-Fitting Part No.
