G6000-11
Swivel Chair
IMPORTANT NOTE
Carefully remove all the parts from the
carton and put them individually on a soft
cloth to prevent damage to the parts.
We have taken great care in the design of
this product and request that you carefully
and accurately follow our assembly
instructions to ensure proper set-up.

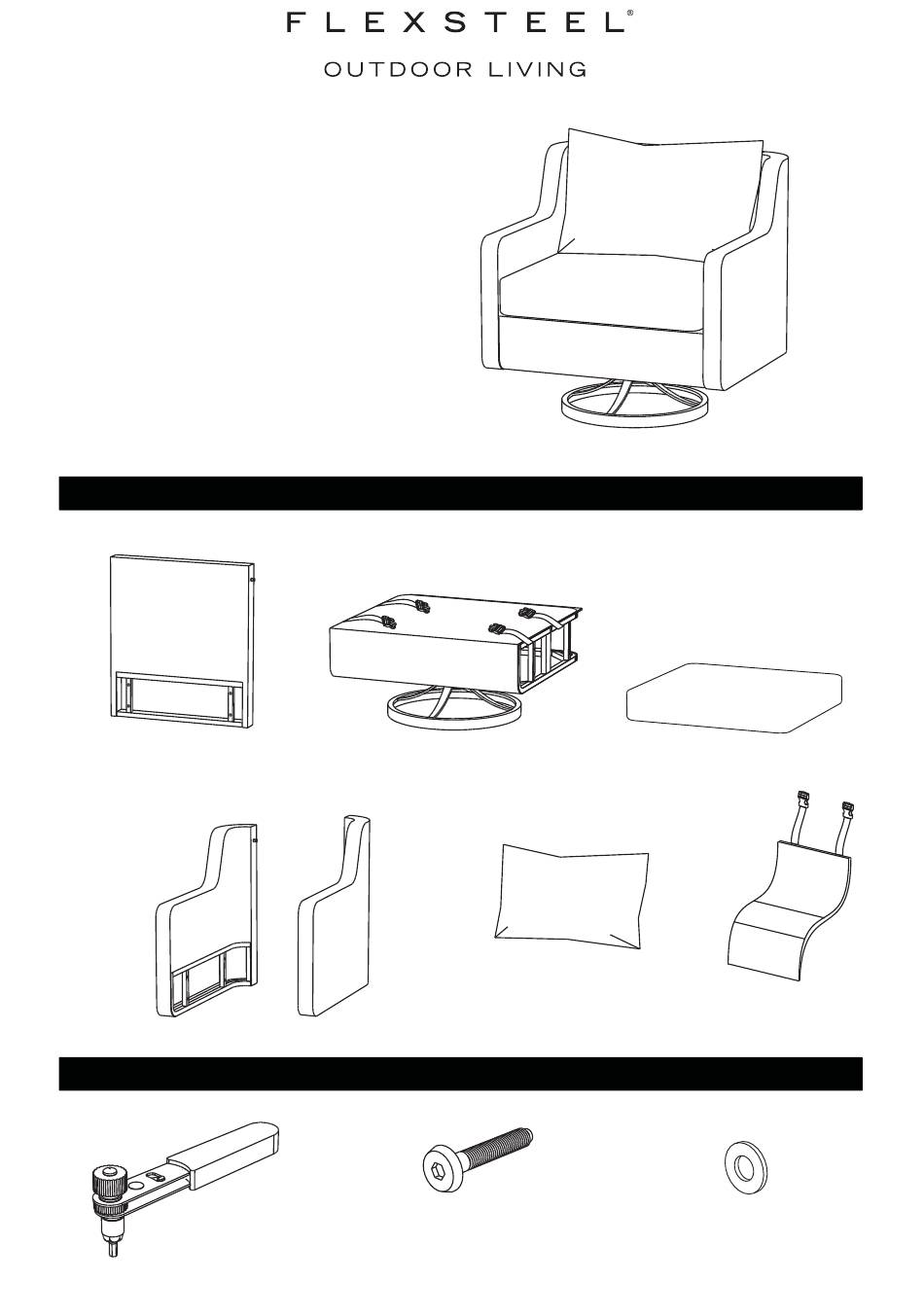

Part List
A.
Back
1 pc.
C.
Left Arm
1 pc.
Hardware List
Ratchet Wrench
1 pc.
Assembly Instruction 1/5
B.
Base Frame
1 pc.
D.
F.
Right Arm
Back Cushion
1 pc.
1 pc.
1
M6x50
Bolt
12 pcs.
E.
Seat Cushion
1 pc.
G.
Pouch
1 pc.
2
Ø
M6 x
16
Flat Washer
12 pcs.
Advertisement
Related Manuals for FLEXSTEEL Vista G6000-11
Summary of Contents for FLEXSTEEL Vista G6000-11
- Page 1 G6000-11 Swivel Chair IMPORTANT NOTE Carefully remove all the parts from the carton and put them individually on a soft cloth to prevent damage to the parts. We have taken great care in the design of this product and request that you carefully and accurately follow our assembly instructions to ensure proper set-up.
-
Page 2: Assembly Instruction
Assembly Instruction / 2 5 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ... - Page 3 Assembly Instruction 3/5 STEP 2 Attach Left Arm (C) to unit by inserting hook in Left Arm (C) into hole in Back (A). (See Figure 3) Insert Bolts (1) and Flat Washers (2) into pre-drilled holes, then tighten. Note: Please Pull the Tabs out before attach the Left Arm (C). Figure 3...
- Page 4 Assembly Instruction 4/5 STEP 3 Back Attach Right Arm (D) to unit by inserting hook in (A) into hole in Right Arm (D). Insert Bolts (1) and Flat Washers (2) into pre-drilled holes, then tighten. Note: Please Pull the Tabs out before attach the Right Arm (D).
- Page 5 Assembly Instruction 5/5 STEP 4 Turn unit to its upright position. Place Seat Cushion (E) and Back Cushion (F) into position. STEP 5 Place Pouch (G) over left or right arm by attaching Tabs on Pouch (G) to Tabs on Base Frame (B).
-
Page 6: Care Instructions
Use furniture on a solid and level surface to minimize prolonged exposure to uneven or • damp ground. Periodically check for any loose bolts and tighten as needed. • Flexsteel Industries, Inc. For Parts or Customer Service, call toll-free: 1-888-415-3979 Monday-Friday 8:00-5:00pm Central Time Email: customersolutions@flexsteel.com...
