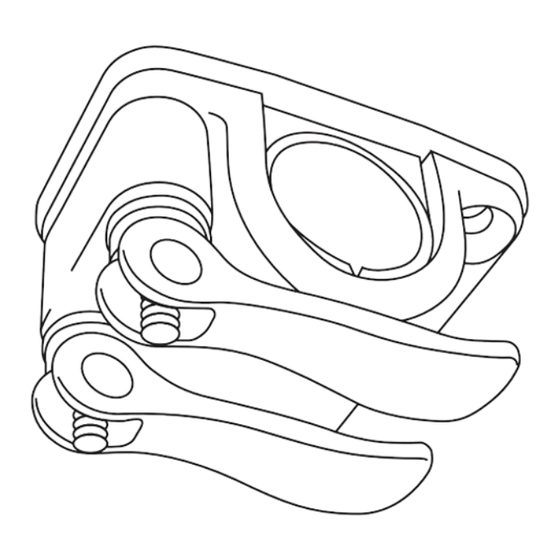

- Page 1 INSTALLATION INSTRUCTIONS For Seaview Folding Light Bar Kit: LTB90 Refer to website for most up to date instructions and videos. WWW.SEAVIEWGLOBAL.COM...
-
Page 2: Parts Included
PARTS INCLUDED TOOLS NEEDED Sudbury Elastomeric Marine Sealant is recommended. To purchase call 800-655-7922 or visit www.seaviewglobal.com... - Page 3 Be sure that the adapter locks into place onto the sleeve. The four bolt holes on the adapter should line up to the four holes on the Seaview Top Plate. Be sure that the slit in the sleeve lines up with the edge of the adapter.
- Page 4 Insert the bracket into the Top Plate bolt holes as shown. Secure the stainless steel bracket in place with the spacer and handles. a. Use the two 5/16”x1” bolts that came with your Light Bar to secure the other side of the assembly. Engage first couple of threads to just hold the stainless steel saddle.
- Page 5 To loosen clamp assembly pull both handles down and twist counter clockwise.
-
Page 6: Optional Accessories
WEDGES SP1-MOD Compensates for plane angle. Allows user to mount GPS units or Available in 2, 4 or 6 degree wedges. antennas onto a Seaview Modular Mount. HINGES Seaview Hinge Adapters fold in any direction necessary for added height clearance. - Page 7 EUROPEAN OFFICE Tel: 800-655-7922 Tel: +33 4 94 53 27 70 www.seaviewglobal.com www.seaviewprogress.com...
