Summary of Contents for Mobishear MSCSH10.8-5

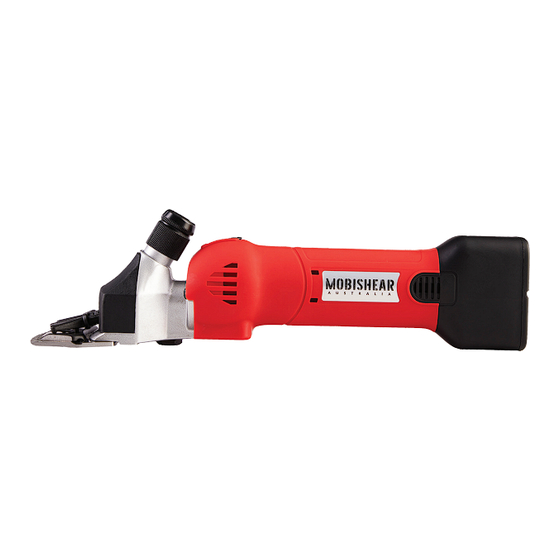

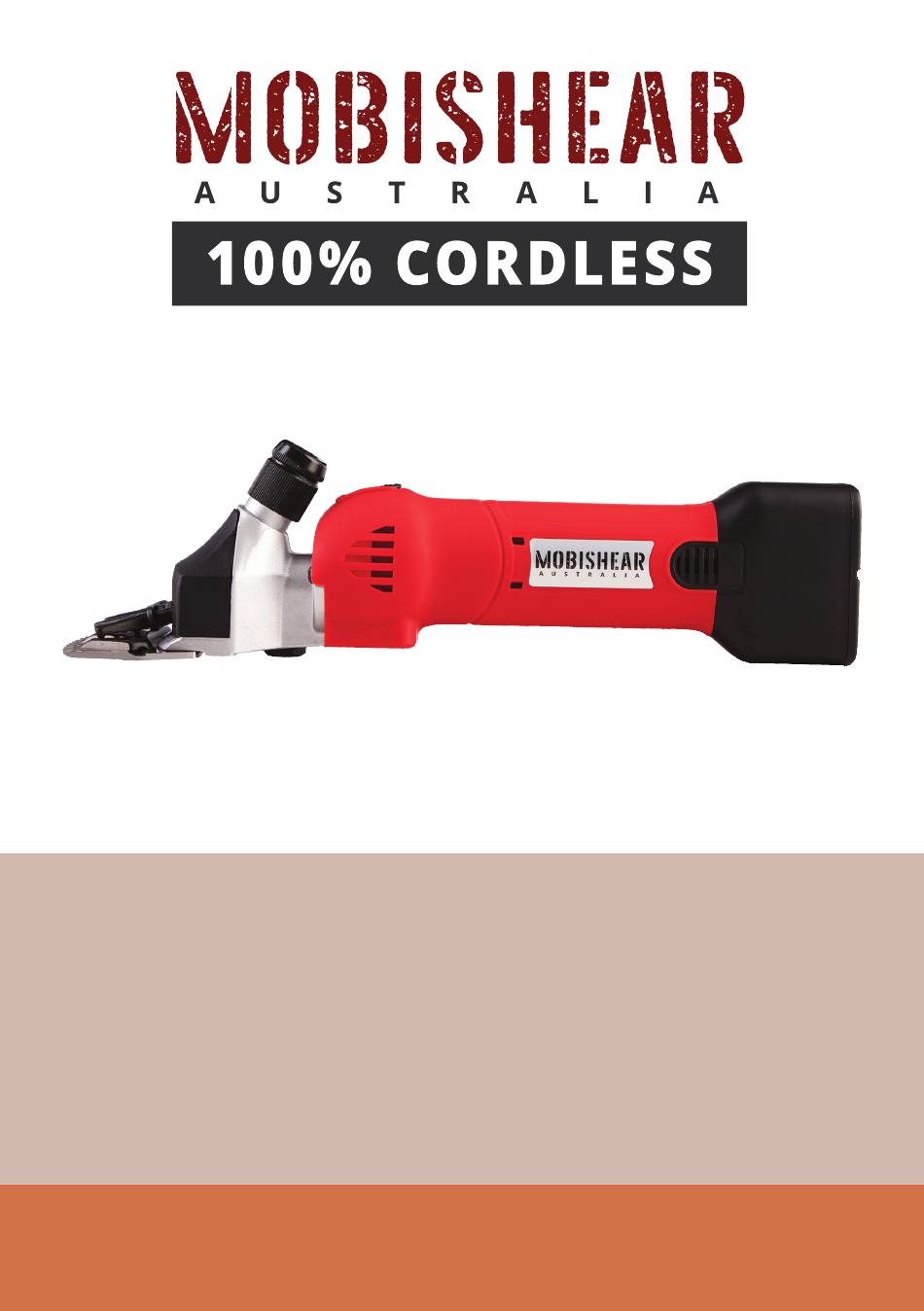

- Page 1 100% CORDLESS SHEARING HANDPIECE MSCSH10.8-5 INSTRUCTION MANUAL...
- Page 2 Register your 100% Cordless Shearing Handpiece online at www.mobishear.com.au for an extended warranty...
-
Page 3: Table Of Contents
Shut Down ..................13 Storage ....................13 Handpiece Maintenance Lubrication ..................14 Cleaning ....................14 Fitting the Shearing Blades ............. 14 Sharpening the Shearing Blades ............ 15 Troubleshooting .............16 Technical Data..............18 Shearing Handpiece ................18 Battery Cartridge ................18 Material Categories................19 www.mobishear.com.au... -
Page 4: Introduction
INTRODUCTION Mobishear Australia is an Australian farming family owned business that was born from a need for innovation out in the paddock, but more importantly a desire to provide the best possible service. This 100% Cordless Shearing Handpiece has been designed and tested by us to endure Aussie farming conditions. -
Page 5: Precautions Before Use
5. We recommend that protective the potential dangers explained. goggles and gloves are worn during use. Personal protective equipment is 3. Children must not operate the to be provided by the operator. shearing handpiece. www.mobishear.com.au... -
Page 6: Case Contents
CASE CONTENTS 1. Shearing handpiece with 5. Lubricating oil shearing head 6. Cleaning brush 2. Battery cartridges x 2 7. Screwdriver 3. Shearing comb & cutter 8. Main drive cog & circlip 4. Battery charger www.mobishear.com.au... -
Page 7: Product Overview
16. Housing Screw 35. Retaining Spring 51. Non-slip Feet Screw Washer 17. Retaining Ring 36. Cutter 52. Charger Sticker 18. Main Drive Cog 19. Bearings 37. Chicken Foot Left 20. Crankshaft 38. Chicken Foot Right 17 18 20 21 www.mobishear.com.au... -
Page 8: Battery Use & Maintenance
If this occurs, wait a while. Charging will begin after the battery cartridge cools. The battery cartridge will www.mobishear.com.au... -
Page 9: Fitting The Battery Cartridge
2 - 2.5 hours. The shearing handpiece will automatically stop when the battery output is low (<8V). Always be sure that the shearing handpiece is switched off and the battery cartridge is removed before adjusting or checking functions on the tool. www.mobishear.com.au... -
Page 10: Battery Maintenance
3. To reduce risk of injury, only use the battery charger. the charger to charge the batteries supplied with your Mobishear Australia 14. If operating time has become 100% Cordless Shearing Handpiece. excessively shorter, stop operation... -
Page 11: Recycling The Battery
RECYCLING THE BATTERY The only way to dispose of a Mobishear Australia battery is to recycle it. Contact your local council to determine the appropriate way to recycle it. -
Page 12: Handpiece Safety & Operation
4. Regularly check all moving parts for damage. 5. Repairs must be carried out by a qualified repairer using genuine Mobishear Australia parts. 6. Use this product only for the applications intended. 7. Do not use accessories or attachments other than those recommended by Mobishear Australia. -
Page 13: Shut Down
2. Check the switch position before minutes ) so that they do not run dry. replacing the battery cartridge. 6. The Mobishear Australia is set up for crutching. It runs at 2300RPM allowing STORAGE it to operate in dirty wool or even out Store the shearing handpiece in its storage of the wool without ‘smoking up’. -
Page 14: Handpiece Maintenance
(part 26) (Fig. 7). The shearing gear consists of a comb (part 31) and a cutter (part 36) (Fig. 8). Fig. 7 The Mobishear Australia 100% Cordless Shearing Handpiece works best with thicker, new cutters rather than worn, thin ones. -
Page 15: Sharpening The Shearing Blades
Resharpening can only be beyond the tips of the cutter (Fig. 11). done with specialised equipment and by You may find that it is easier to enter a trained technician. Contact Mobishear wool from non-traditional angles if Australia for assistance. www.mobishear.com.au... -
Page 16: Troubleshooting
Tighten tension nut (part 22) Retaining spring (part 33) Replace retaining spring damaged (part 33) The animal’s wool is wet Only shear when dry Fibre jammed between Disassemble comb and blades cutter, clean and oil well, reassemble and retension. www.mobishear.com.au... - Page 17 Shearing head gets hot Comb and cutter tension Reduce pressure at tension too high nut (part 22) No lubrication on crankshaft Use paraffin oil in ball (part 21) lubricating hole (part 26) Bearings (part 19) are Replace bearings (part 19) worn out www.mobishear.com.au...
-
Page 18: Technical Data
TECHNICAL DATA SHEARING HANDPIECE Model number MSCSH10.8-5 Voltage Motor power Speed 2300rpm Amplitude of swing 6.5mm Dimensions (W/H/L) Approx. 80mm x 80mm x 315mm (Including battery cartridge) Weight 1250g (Include battery cartridge) BATTERY CARTRIDGE Battery cells 6 x 3.6V Li-ion battery cells... -
Page 19: Material Categories
The warranty is only valid for purchases made direct from Mobishear Australia or an authorised Mobishear Australia stockist. Damage from misuse or not following the provided care instructions is not covered. The customer will be liable for postage costs of the equipment back to Mobishear Australia for assessment. www.mobishear.com.au... - Page 20 Arnd Enneking Heidi Enneking M: 0421 062 697 E: arnd@mobishear.com.au M: 0409 289 532 E: heidi@mobishear.com.au Box 89, Mount Barker SA 5251 www.mobishear.com.au...
