ABM International, Inc.
Series: All Innovas
Model: Innova Longarm Quilting Machine
PantoVision Installation
PANTOVISION Installation
ABM International, Inc.
Wiring the PantoVision blue box to the Innova:
Step 1: Turn OFF the machine and unplug it from the power outlet.

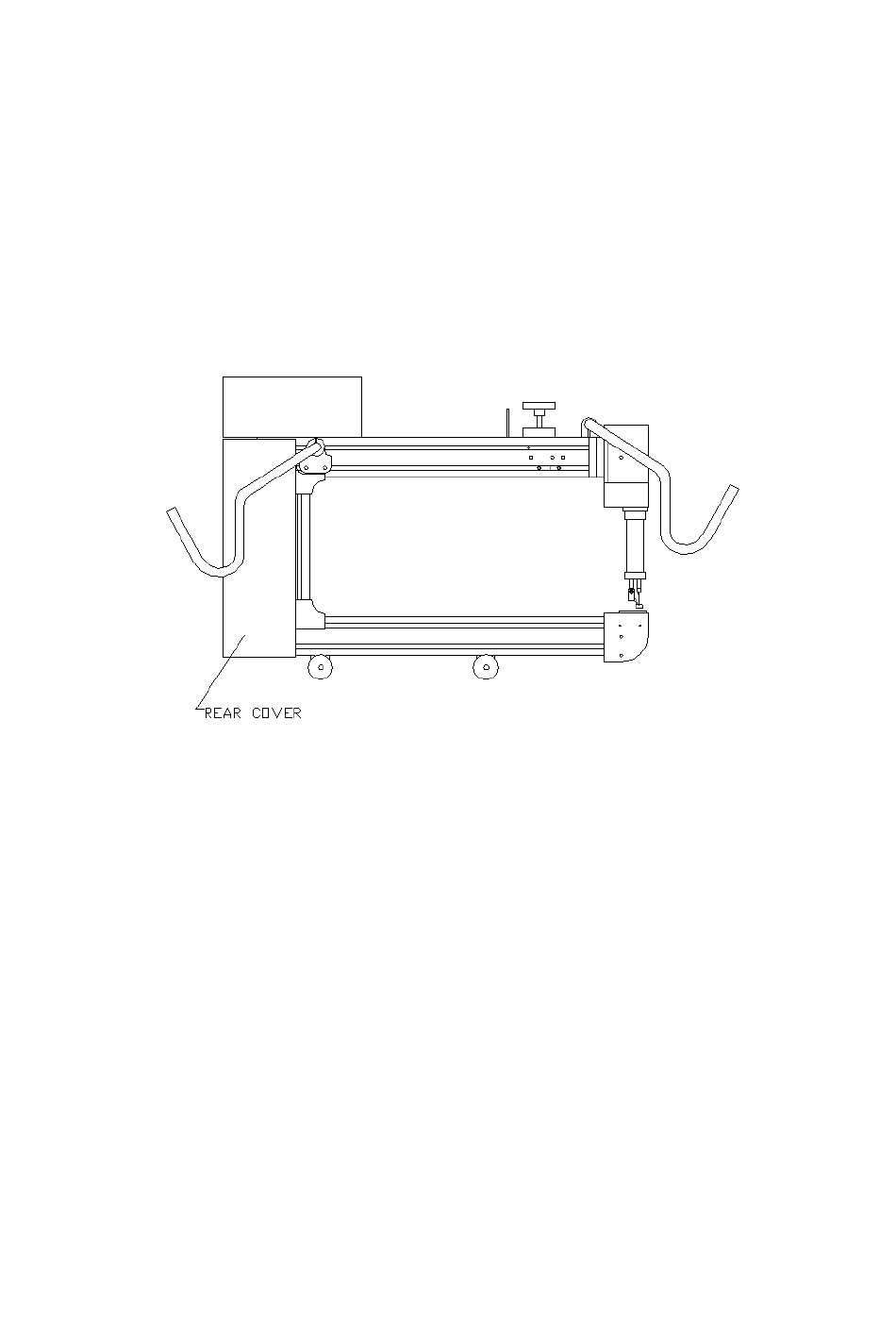

Step 2: Remove the rear cover of the Innova.
Step 3: Use one of the following illustrations to wire the PantoVision blue box to the Innova.
Proprietary information of ABM INTERNATIONAL, Inc. furnished for customer use only.
No other uses are authorized without the prior written permission of
ABM INTERNATIONAL, INC.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ABM International PANTOVISION
Summary of Contents for ABM International PANTOVISION
- Page 1 Step 1: Turn OFF the machine and unplug it from the power outlet. Step 2: Remove the rear cover of the Innova. Step 3: Use one of the following illustrations to wire the PantoVision blue box to the Innova. Proprietary information of ABM INTERNATIONAL, Inc. furnished for customer use only.
- Page 2 Connect the color coded and labeled wires to the corresponding green screw terminal on the Lightning Stitch Board. Proprietary information of ABM INTERNATIONAL, Inc. furnished for customer use only. No other uses are authorized without the prior written permission of...
- Page 3 Tie back the orange and heavy black wire with electrical tape. 3) Connect the X and Y axis encoders to the new green terminal block supplied with the PantoVision. Follow the illustration for proper wire locations. NOTE: The X-axis is the encoder that rolls LEFT and RIGHT on the lower carriage of the machine and the Y-axis is the encoder that rolls IN and OUT on the left side of the sewhead.
- Page 4 Series: All Innovas Model: Innova Longarm Quilting Machine PantoVision Installation THIS PAGE IS INTENTIONALLY LEFT BLANK Proprietary information of ABM INTERNATIONAL, Inc. furnished for customer use only. No other uses are authorized without the prior written permission of ABM INTERNATIONAL, INC.
- Page 5 ABM International, Inc. Series: All Innovas Model: Innova Longarm Quilting Machine PantoVision Installation Proprietary information of ABM INTERNATIONAL, Inc. furnished for customer use only. No other uses are authorized without the prior written permission of ABM INTERNATIONAL, INC.
- Page 6 Model: Innova Longarm Quilting Machine PantoVision Installation Step 4: Connect the supplied USB cable to the side of the PantoVision blue box. Step 5: Tuck the blue box into the rear compartment of the Innova and wire tie it in place.
