Thorn 96222783 Manual

Presentation
Product features
Technical Data
Wiring scheme
Thorn Lighting is constantly developing and improving its products. The right is reserved to change specifications without prior notification or public announcement. ©

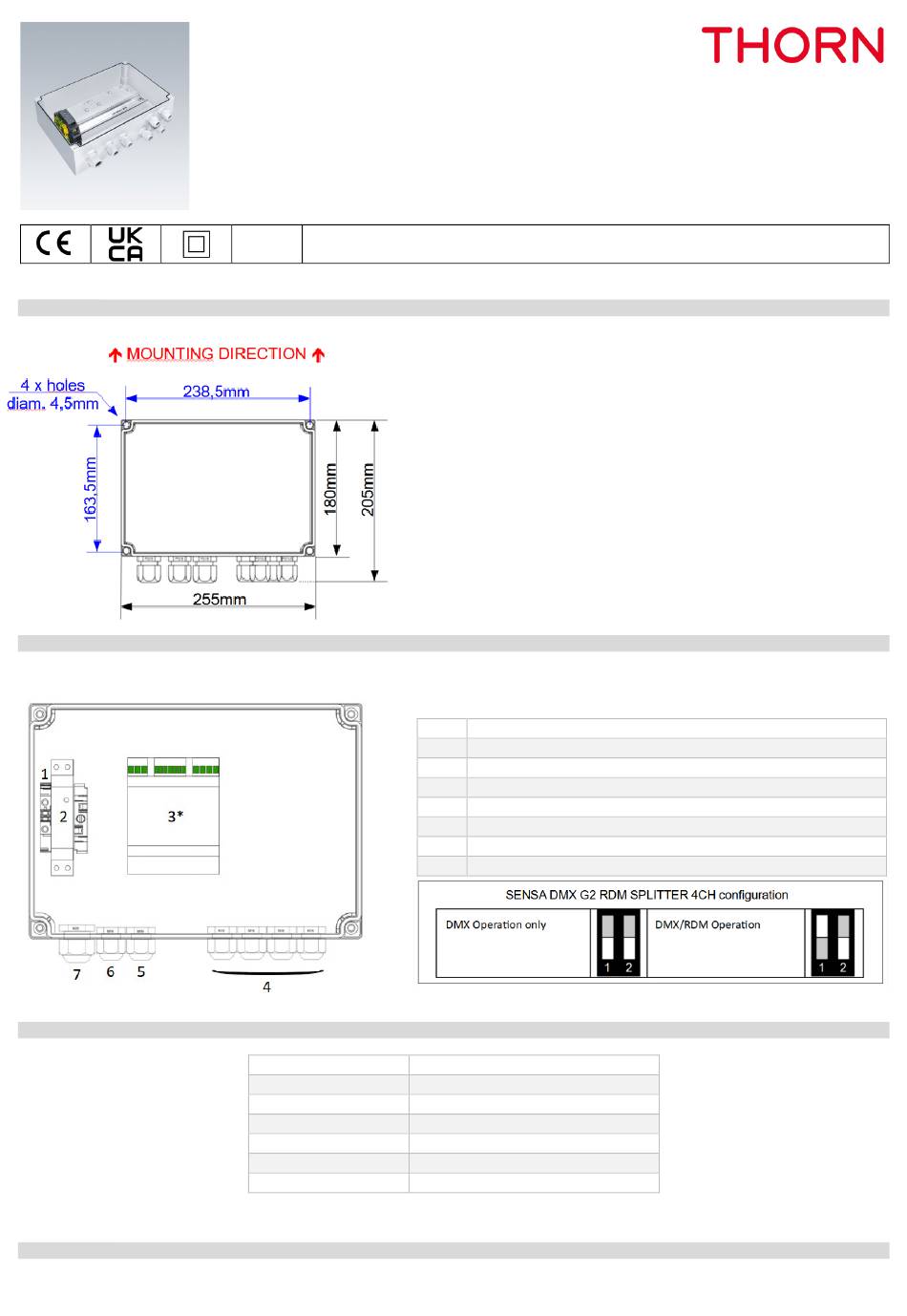

SENSA DMX G2 RDM SPLITTER 4CH BOX IP66
Pre-installed IP66 BOX for SENSA DMX G2 SPLITTER
IP 66
Parameters
Input Voltage
Input power
Connections
Dimensions
Weight
Operating temperature
Thorn Lighting
The pre-equipped enclosure is designed to accommodate the SENSA DMX G2 RDM
SPLITTER 4CH, offering robust protection and functionality for your lighting control needs.
To be considered IP66 the box need to have the cover closed with supplied screws, cable
glands tightened, and empty cable glands equipped with plugs. When removing the cable,
the nut must be slightly unscrewed and left in place.
The system needs to be powered up constantly due to the potential risk of the internal
clock delay.
Technical datasheets available on www.thormlighting.com
WARNING:
• DO NOT PERMANENTLY REMOVE THE NUT OR THE RUBBER OF CABLE
GLANDS.
• THE PRODUCT MUST BE INSTALLED IN A VERTICAL OR HORIZONTAL POSITION
WITH THE COVER / LABEL UPWARDS OR VERTICALLY. OTHER POSITIONS ARE
NOT PERMITTED.
Pos.
1
2 SENSA DMX G2 POWER SUPPLY (Article number 96222782)
3 * SENSA DMX G2 RDM SPLITTER 4CH (Article number 96222781)
4 DMX output(s) cable glands – acceptable cable diameter : 5-10mm
5 DMX THRU output cable gland – acceptable cable diameter : 5-10mm
6
DMX input cable gland – acceptable cable diameter : 5-10mm
7 Mains input cable glands – acceptable cable diameter : 8-13mm
Value
110 / 230 V AC – 50 / 60 Hz
< 15 W
Screw connectors for cable 2,5mm² maxi
255 x 205 x 100 mm (with cable glands)
970g
-20...+50°C
Art. No.
Description
Ground screw terminal
96222783
*to order apart
