Speco SXU24V Install Manuals

Install Guides
SXU24V

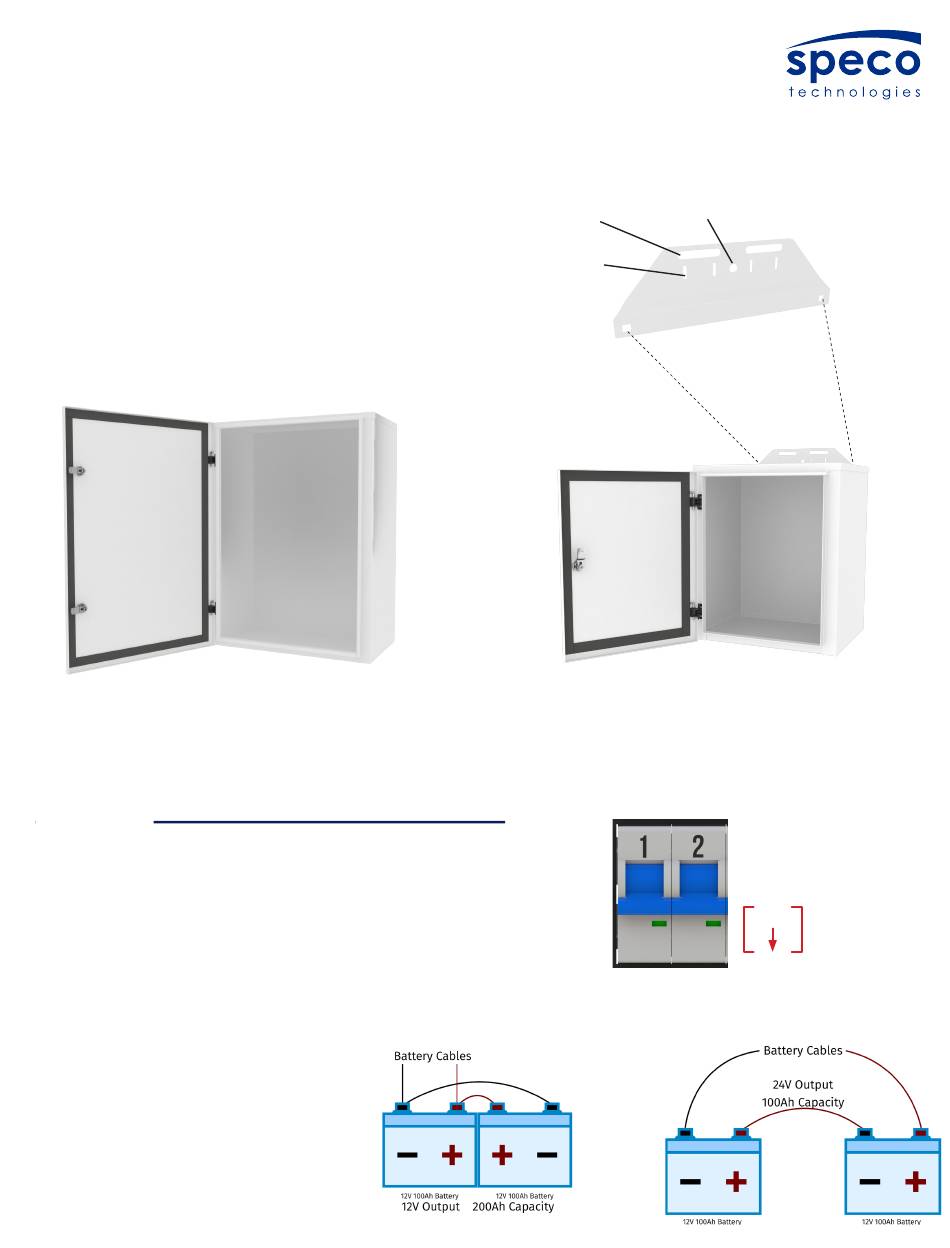

Mounting
the Enclosure
The SXU and SXA enclosures are designed
to be mounted to a wall or pole. The
enclosure utilizes an integrated mounting
plate on the back.
AL5 Enclosure
WIRING
Step 1
Check to ensure that all breakers are in the "OFF" position
before connecting any wires to the terminal blocks.
STEP 1
1. Check to ensure that all breakers are in the "OFF" position
before connecting any wires to the terminal blocks.
Step 2
- If your part # ends with -12, connect your two 12 Volt Batteries in parallel to keep the battery voltage at 12VDC
- If your part # ends with -24, connect your two 12 Volt Batteries in series to create a 24VDC Battery Bank.
STEP 2
1. If your part # ends with -12V,
Rear of AL5 Enclosure
connect your two 12 Volt
Batteries in parallel to keep
the battery voltage at 12VDC.
2. If your part # ends with -24V,
connect your two 12 Volt Bat-
teries in series to create
a 24VDC Battery Bank.
Install Guide
Step 1
Check to ensure that all breakers are in the "OFF" position
before connecting any wires to the terminal blocks.
Unistrut
Step 2
- If your part # ends with -12, connect your two 12 Volt Batteries in parallel to keep the battery voltage at 12VDC.
- If your part # ends with -24, connect your two 12 Volt Batteries in series to create a 24VDC Battery Bank.
Parallel Connection
Step 3
Ensure that the Voltage Selector Switch is set to the appropriate
UPS Backup Kits
U-bolt
Hose Clamp
Mounting the enclosure
The AL2 and AL5 enclosures are designed to be mounted
to a wall or pole. The AL2 utilizes an integrated mounting
plate on the back of the enclosure.
The AL5 Enclosure comes integrated with Unistrut attached
to the back of the enclosure, and can be mounted using
any applicable unistrut mounting hardware found at
most hardware stores.
Parallel Connection
*In cold climates SLA batteries require insulation
Lag Bolt
AL2 Enclosure
Wiring the UPS backup Kit
Wiring the UPS backup Kit
OFF
Series Connection
4774 South Hwy 191, Rexburg, ID 83440
Series Connection
Phoenix Terminal
®
Phone : + (208) 904-04
