Thunderbird T20-2000 Instruction Manual

Hide thumbs

Table Of Contents

Table of Contents

Need help?

Do you have a question about the T20-2000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Thunderbird T20-2000

Page 2: Table Of Contents
Contents Power + Charging……………………………………………………..………………………………….…...……Page 3 Understanding your indicator…………………………………………………………...……….………..…Page 4 Se ng up your indicator for the ﬁrst me………………………………………….…………….….…Page 5 Installa on………………………………………………………………………………………….………...……….Page 6 Star ng a weigh session……………………………………………………..…………………….…………….Page 8 Care and Maintenance……………………………………………………………………….…………..………Page 9 Warranty & Contact……………………………………………………………………….……….……………..Page 10...

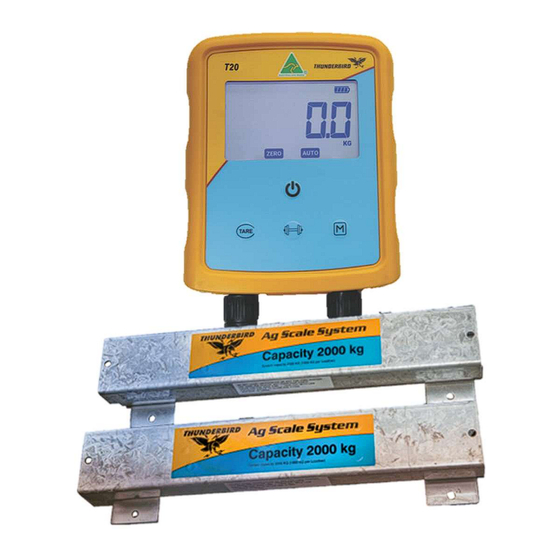

Page 3 Whats In this box T20 Indicator + 2000KG Load bars (pair) Moun ng Bracket 12V Charging adapter Speciﬁca ons C to +70 Opera ng Tempreture - Ba ery charge temperature - C to +50 Environmental Protec on Ra ng – IPX4 Weight - Indicator: 0.9kg / System weight: 20.1kg Es mated ba ery opera ng me –...
Page 4: Power + Charging
• If a ba ery error occurs the ba ery indicator will ﬂash all the segments. Return the Weigh Scale to a Thunderbird Authorised Service Centre for ba ery replacement. Battery Charge Status When the ba ery level drops to 0%, three beeps will sound and shut down.
Page 5: Understanding Your Indicator
Understanding your indicator Load bar connectors Power input External power connec on Weigh Screen Ba ery charge Weigh mode indicator Weigh unit Weigh bu on Power bu on Turn T40 on/oﬀ. Records animal weight Mode bu on Tare / zero bu on Changes weighing modes.
Page 6: Se Ng Up Your Indicator For The First Me
Se ng up the T20 for the ﬁrst me Set the weight unit. Turn on the T20 indicator. To change the weight unit, press and hold down the MODE bu on for 3 seconds. A beep will sound when the weight unit changes between kgs and lbs. Selec ng the weighing mode Press the Mode button to select a weighing mode.
Page 7: Installa On
Installa on Installing the T20 Indicator The T20 is supplied with a moun ng bracket kit, for moun ng on steel or wood. Moun ng kit contains: Moulded bracket 2 x U-bolts 4 x Tech screws – 65mm 4 x M10 nuts 4 x M10 Bolts –...
Page 8 Installing the Load bars 1. Select a loca on that provides a solid, level and well drained surface. 2. Ensure the load bars and pla orm are well secured and clear of any obstruc ons. 3. Ensure the pla orm does not rock or move and ﬁll with spacers if required. 4.
Page 9: Star Ng A Weigh Session
Weighing Before Weighing 1. Check the load bars are connected to the T20 Indicator 2. Turn on the T20 Indicator using the Power Bu on. 3. Check the weight displayed is ZERO. If not, press the TARE bu on. Weighing animals 1.
Page 10: Care And Maintenance
 This Weigh Scale contains a Lithium ba ery which is not user replaceable. The lithium ba ery must be replaced by a trained professional using a Thunderbird approved ba ery. Return the unit to a Thunderbird Authorized Service Centre for ba ery replacement.
Page 11: Warranty & Contact
WARRANTY Thunderbird warrant all scale indicators and load cells against defec ve workmanship and faulty materials for 2 years from the date of purchase. We undertake, at our op on, to replace or repair free of charge each product, or part thereof, on condi on that it is returned to our factory, freight prepaid, and found on examina on to be suﬀering from material or...
