Instruction Manual

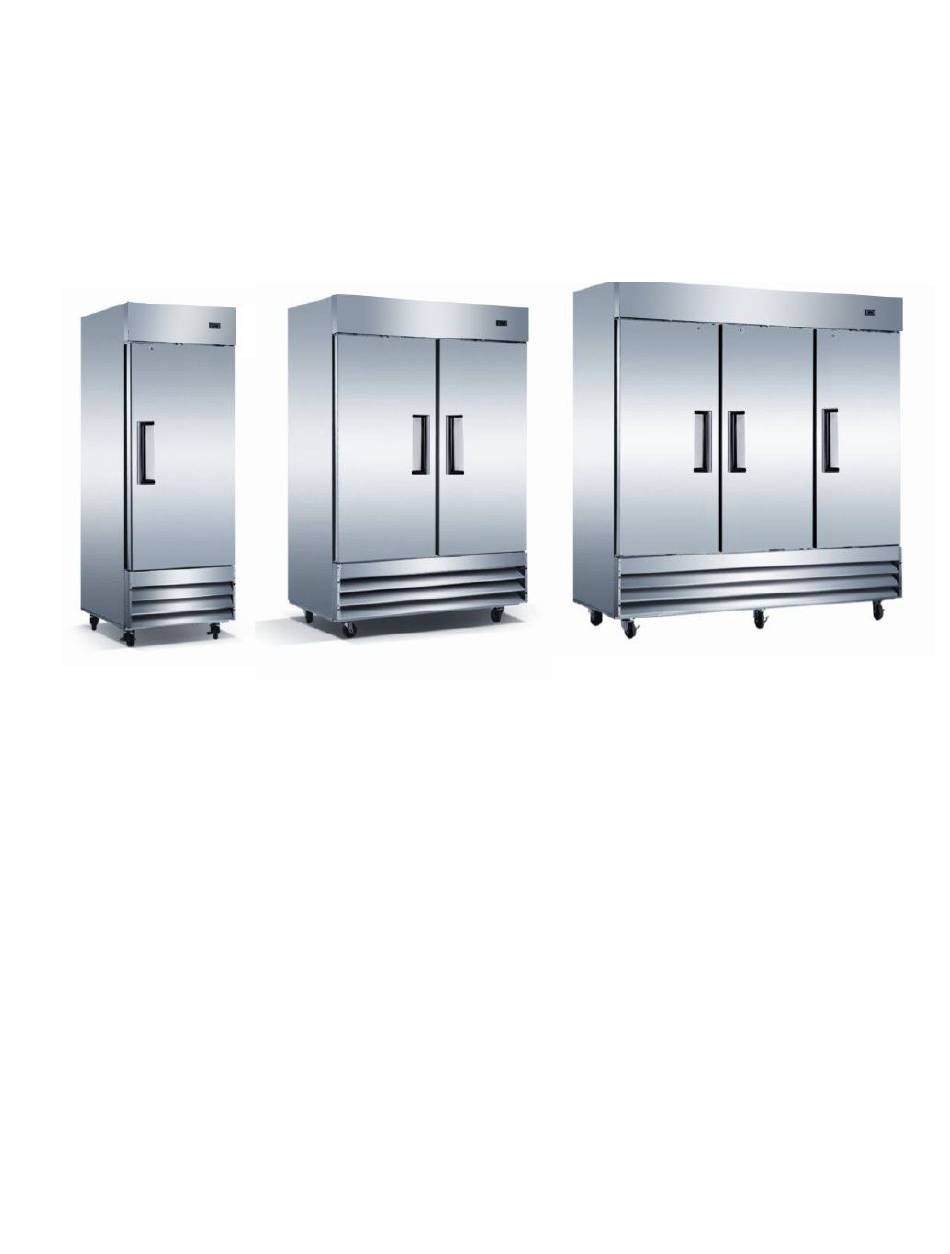

Reach-in Refrigerators & Freezers
This manual contains important information regarding your unit. Please read this manual
thoroughly prior to equipment set-up, operation and maintenance. Failure to comply with regular
maintenance guidelines outlined in this manual may void the warranty.
Advertisement
Table of Contents
Summary of Contents for Admiral Craft USFZ-1D
- Page 1 Instruction Manual Reach-in Refrigerators & Freezers This manual contains important information regarding your unit. Please read this manual thoroughly prior to equipment set-up, operation and maintenance. Failure to comply with regular maintenance guidelines outlined in this manual may void the warranty.
-
Page 2: Installation
WARNINGS • To minimize shock and fire hazards, be sure not to over load the outlet. One outlet should be designated to the unit only. • Do not use extension cords. • Do not put hands under the unit when moving. •... -
Page 3: Temperature Controls
TEMPERATURE CONTROLS The temperature controls are factory set to maintain an average temperature of 38F. To set a different temperature, adjust the control knob located inside the unit. To decrease the temperature (cooler), turn clockwise. To increase the temperature (warmer), turn counter-clockwise–see diagram below. Freezer Control Refrigerator Control mute... - Page 4 April 2017...
-
Page 5: Troubleshooting
REGULAR MAINTENENCE Cleaning Condenser • For efficient operation, it is important that the condenser surface be keptfree of dust, dirt, and lint. • We recommend cleaning the condenser coil and fins at least once permonth. • Clean with a commercial condenser coil cleaner, available from any kitchen equipment retailer. Brush the condenser fins from top to bottom, not side to side. - Page 6 Troubleshooting Continued... SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION Condenser runs for long Excessive amount of warm Allow adequate time for Periods of time Products placed in cabinet Product to cool down Prolonged door opening or Ensure doors are closed. door left open Avoid leaving the door open for long periods of time Door gasket(s) not creating a...
-
Page 7: Warranty
WARRANTY ONE YEAR WARRANTY Warrants to the original purchaser of this unit, the cabinet and all parts thereof, to be free from defects in material or workmanship, under normal use and service, for a period of one (1) year from the date of original installation or 15 months after shipment date, whichever occurs fi rst. Any parts covered by this warranty that are examined and determined to have been defective within one (1) year of original installation or fi...
