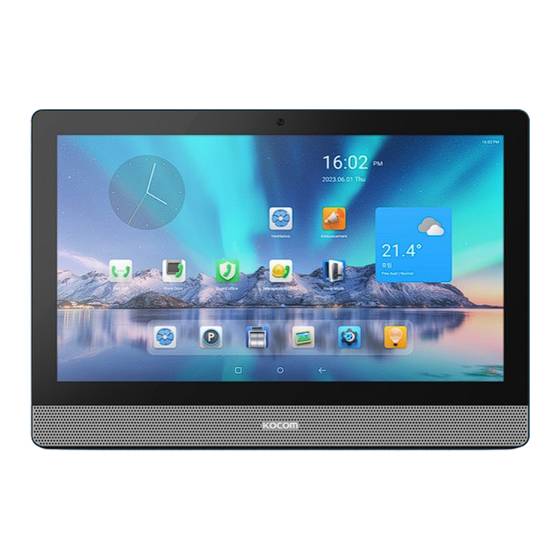

KOCOM KHN-T130T9 Quick Manual

Cautions for safety
Warnings and Precautions for Safety
· Do not insert metal into the cover of the fuse, as such an act may lead to electric shocks.
· Do not put the speaker close to your ears, as such an act may cause issues in your hearing due to the speaker's volume and signal sounds.
· The memory of WALL-PAD does not save automatically user's customized settings. Please check that the data is saved correctly.
The data may become damaged.
· Please use the detector that fits into the standards. There are risks of fires due to excess voltage or current.
· When installing a moving sensor, please install the sensor where detection may be readily available. If the installation site is inadequate,
or if there is an obstacle in front of the sensor, it will not work properly. [Option Specifications]
· For security settings, please ensure that the sensor is properly in contact. Upon installing the product, please beware of the polarity of the guard
office's wiring. The change in polarity may influence the product's operation or the entire system of the apartment.
· Do not install the front door camera at a place with water permeation or leakage.
Installations in such places lead to the product's electric shock and short circuit.
Main Screen
1. Main Screen Manual
- and can be converted by pressing the Screen Selection icon.
<Icon> <Metro Mode>
Icon Mode
4
1
2
7 3
User Menu
1
Displays the menu set by the user.
2 Home Menu
Displays announcements, lighting, visitor history, and guard office call icon.
3 Soft Key
Executes "Go to Menu," "Go to Home," and "Go Back" functions.
4 Time Information
Displays the current time in an analog
and digital format.
Weather Information
5 Displays the weather, temperature, and
fine dust status of your current region.
Quick Menu
6
Tap the red area and drag from above to below to display
a UI that allows quick menu settings.
Status Bar
7
Displays functions such as absent mode settings, security
settings, and network status.
: Apartment Complex/SIP server connection failure
: Apartment complex server connection failure
: SIP server connection failure
8 Emergency Key
Enables/cancels emergency by being tapped for a few seconds.
Menu Screen
1. Quick Menu Settings
1
2
4
Icon Mode
When you tap and scroll the settings section at the top right of [Quick Menu], you will go to the corresponding screen' (See page 15 and 16)
1 Quick Menu
1. The default setting is OFF; the function allows video recording when a motion is sensed at the front door.
2 Black Box
2. When the setting is [ON], the video is recorded for 15 seconds upon an additional motion after 7 to 10 seconds of the initial motion.
3 Disturbance-Free Mode (function supported according to config settings)
1. Tap the UI.
2. Select and tap < >, which will change the icon at the bottom left of the main screen to '
3. When the disturbance-free mode is activated, all sounds are muted except signals related to the guard office and security functions.
Sets outside mode when you're out of the unit.
Absent Mode
4
Converts between icon mode and metro mode.
5 Mode Selection
2. Menu Screen Settings
Icon Mode
1. Tap and scroll from above to below, or from below to above at the main screen to go to the corresponding screen.
2. When you tap the menu icon for 2 or more seconds, the home menu icon will be displayed on the main screen, allowing you to
manually designate the location.
3. The detailed function popup will appear when you tap icons on the main screen for 2 seconds or more except for the home menu.
◀ Detailed popup menu
※ This function is only available on
1) : Changes the icons on the main screen so they can be deleted.
Edit mode
2) : : Delete selected icon.
Delete
3) : Move to the left screen based on the main screen when there are 2 main pages.
Move to left
4) : Move to the right when an additional page is formed or when there are 2 or more pages.
Move to right
※ For safe use, please stick to the following cautions.
Metro Mode
6
4 1 6
5
5
2
7 3
8
Fixed Home Menu
1
Displays absent mode, disturbance-free mode,
front door monitoring, and ventilation menus.
2 Fixed Menu
Displays announcements, lighting, visitor history, and guard office call icon.
3 Soft Key
Executes "Go to Menu," "Go to Home," and "Go Back" functions.
4 Time Information
Displays the current time in a digital format.
Weather Information
5 Displays the weather, temperature, and fine
dust status of your current region.
Quick Control Menu
6
Provides quick control and check on "Elevator"
and "Recent Call History."
Status Bar
7
Displays functions such as absent mode settings, security
settings, and network status.
: Apartment Complex/SIP server connection failure
: Apartment complex server connection failure
: SIP server connection failure
8 Emergency Key
Enables/cancels emergency by being tapped for a few seconds.
Quick Menu
9 Tap the red area and drag from above to below to display
a UI that allows quick menu settings.
1
3
2
5
4
Metro Mode
'.
Metro Mode
.
<Icon Mode>
KOCOM SMART HOME
Wall-Pad QUICK MAUAL
9
8
www.kocom.com
※ Please read the precautions and use them for safe use.
※ Details of this manual are subject to change depending on whether the function and
convenience of the product are improved in the future.
※ This manual is a quick manual that only writes some functions, and please check the detailed
functions through the QR code on the right.
Security Mode
1. How to Set and Remove Seocurity Mode During Absence
3
5
1. Upon a motion of going outside, the exterior LED operates according to the motion, displaying the absent status on the main screen
and outputting the absence guide comment.
2. When the absent mode is activated, the lights are completely blocked, gas valves are closed, and the elevator is called within 1 minute.
3. After the sensor setting is completed, the door open and motion sensors are set to security mode.
4. Security 1 and Security 2 settings are only available during absent mode.
5. Cancelling the absent immediately cancels the lighting, opens the door, cancels the motion sensor settings, and outputs the absent
mode cancellation comment.
6. When rebooting WALL-PAD, you must maintain the setting value of the existing absent mode.
7. When the WALL-PAD call is connected, the absent mode is automatically canceled.
Call
1. Viewing Situation Outside the Door
1. The default functions of the front door call are
Record Video, and Front Door Open>.
2. When you press the icon, the video of the
<My Front Door>
situation outside the front door is displayed.
※ Here, a 15-second of video is automatically captured and saved;
you can tap the button if you need additional recording in
<Save>
the unit of 15 seconds.
3. Tap the icon for phone call connection.
<Call>
4. Close the front door monitoring by tapping the
"Outside the door" is limited to the outside of the unit' s front door.
Door opening is only available during phone calls.
KHN-T130T9
X1128
2. Front Door Call (Upon Visit)
1. When the visitor presses the front door camera's
<Phone Call,
at the unit's front door, you will hear the comment,
has been detected at the unit's front
※ Here, a 15-second of video is automatically captured and saved;
you can tap the button if you need additional recording in
<Save>
the unit of 15 seconds.
The video of the visitor will be played through the unit device (WALL-
PAD) screen inside the unit.
2. Tap the button on the screen for a phone call connection.
<Call>
icon.
<Close>
3. When the phone call is connected, the door open button is displayed
tap the button to open the front door of the unit
<Door Open>
and end the call.
With a smartphone
QR codes
Scan
button
<Call>
<A call sound
door>.
