Summary of Contents for Secutek MDC-KP09

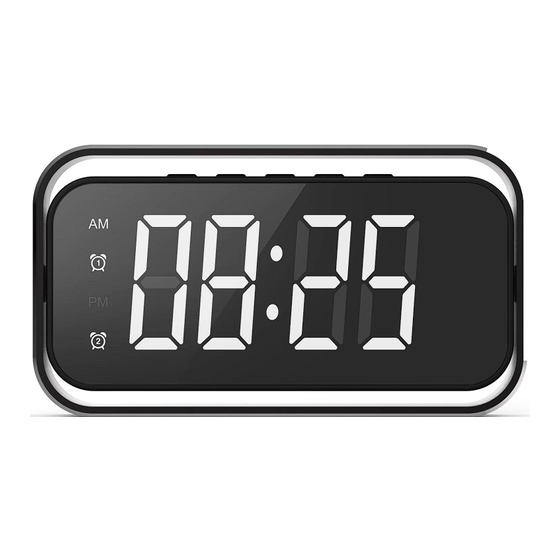

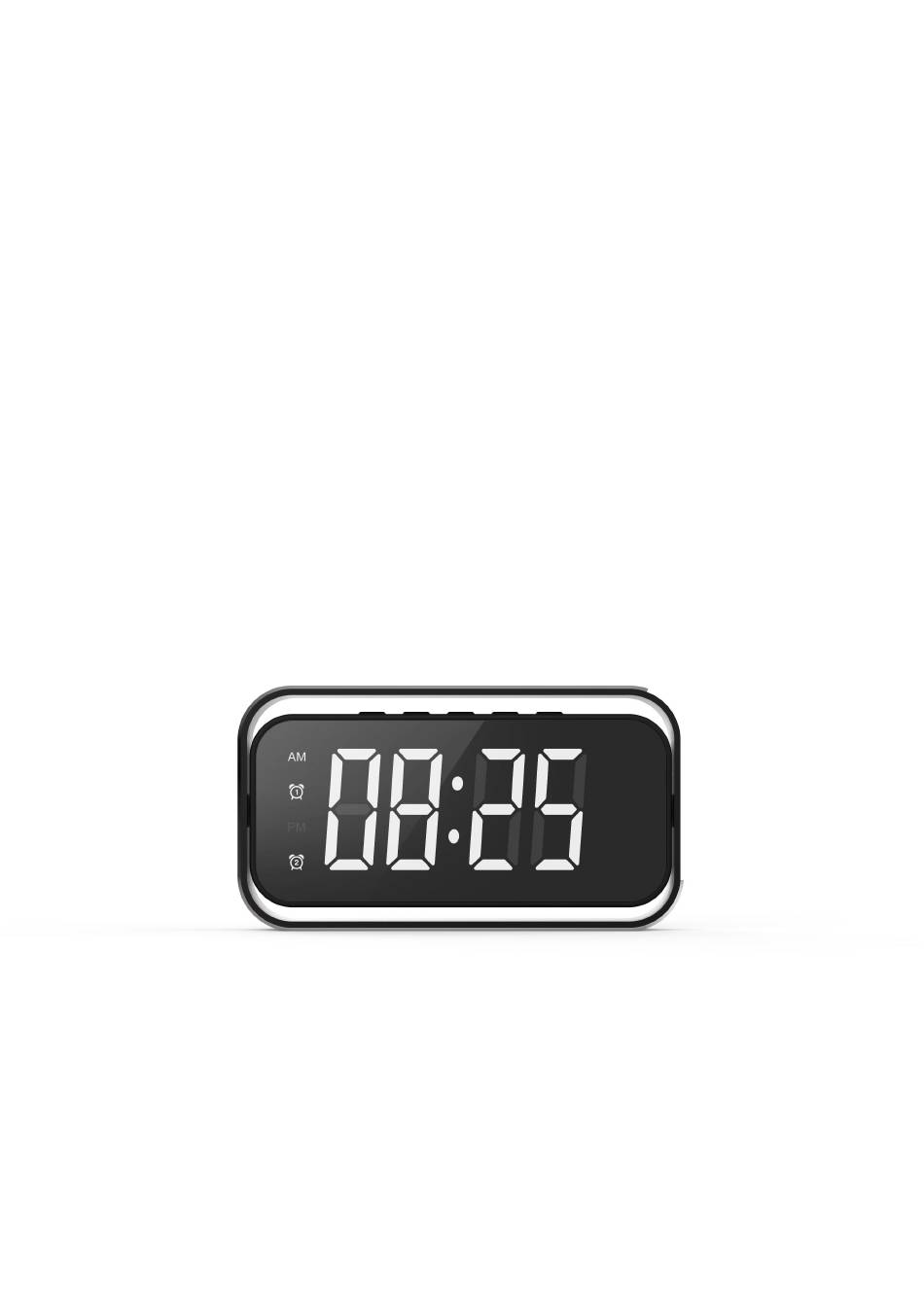

- Page 1 AlARM CLOCK WIFI CAMERA User Manual...
- Page 3 User Guide For APP Installation For iOS Devices: a. Scan below QR Code for iOS operating system to download and install “Camama” APP with iPhone or iPad devices. b. Search “Camama” in App Store with your iOS devices, download and install App.
- Page 4 1. Adding New Camera Device A. Connected the power supply and turn on the device by ON/OFF switch. The green light will flashing and the camera are waiting to be connected. B. Enter your phone “settings”-> choose “WLAN”-> find the camera’s hot-spot signal (the name of the signal is “Camama_XXXXX”),connects the camera’s hot spots.
- Page 5 C. Load the APP (Camama) and click the button to add new device->choose “Search in LAN”->Click the device ID and Saved. After this step Finished, the camera has been added to the App and you can watch the video via hot spots at distance of 10-15m range(Point-Point Mode).
- Page 6 Please noted: On the above step, some of IPhone user can’t find the device, how to resolve it? If you’re using IOS14.0 or above, when you connect the device at the first time, please shut-off the cellular data of your phone, then go back to app and refresh it, then you’ll find the device come up, after connection was done, you can turn on the cellular data of your phone.
- Page 8 3. Live Feed and Remote Viewing (Live Stream and Remote 7/24 Monitoring from anywhere)
-
Page 9: Motion Detection Settings
4. Motion Detection Settings Click the setting button->Choose the “Alarm Setting” to set motion detection. You can active the motion mode here and choose the levels of motion detection. It has 4 levels of motion(Low, Medium, High, Max) Please note: After activated the alarm function, If you still can not receive the alerts by phones, please go to your phone setting - find the notification management - Tap the App: Camama - Allow the App to push notification. - Page 10 5. SD Card Recording Settings Click the setting button->Choose the “SD Card Record Setting” to set SD Card. You can active the SD card recording while insert a Micro SD card, you have 4 recording modes to choose (Off, Full time recording, Alarm recording and Timing Record) Notes: This camera support both recording with/without SD card.
- Page 11 6. Camera Related Parameters Resolution Ratio 4K/2K/1080P Video Format Frame Number Visual Angle 150 degree Motion Detection Camera Straight line 6 meters Shooting Compressed Format H.264 Night Version 5~8M 20 ㎡ Recording Range Consumption 2A/5V Storage Temperature -20-80 degree centigrade Operating Temperature -10-60 degree centigrade Operation Humidity...
- Page 12 7. Alarm Clock Setting 1. Setting time: Press the “M” button one time to setting the hour, Press the “M” button two times to setting the minute. Press the “+” or “-” button to set the time. 2. Adjusting font brightness: Press the “ ”...
- Page 13 8.Introduction of Settings Page 1. It is UID number and you can share your device to others base on that. 2. This your current password and you can change it on that directly. 3. Display the current connection status of the camera, off line or online. 4.
- Page 14 above instruction. 5. Night Vision setting, you can choose Auto, On or Off. 6. Control the audio during recording and live view. 7. It is for your Alarm setting(Motion Detection), you can find how to do on above instruction. 8. It is for your SD card record setting, you can find how to set your SD card on above instruction.
- Page 15 The unit is powered by a 2000mAh Li-on rechargeable battery. When fully charged, it can work continuously for 4 to 5 hours with continuous recording. We suggest to use while charging in order to extend the service life of the battery. 10.
- Page 16 mode, is there any possible to close it? This device is provided IR-CUT technology which can switch night vision function automatically, and increases the distance and definition of night vision. This sound is just caused from the baffle when switching. In fact, this sound is very small and no one would realize that is generated by a camera.
