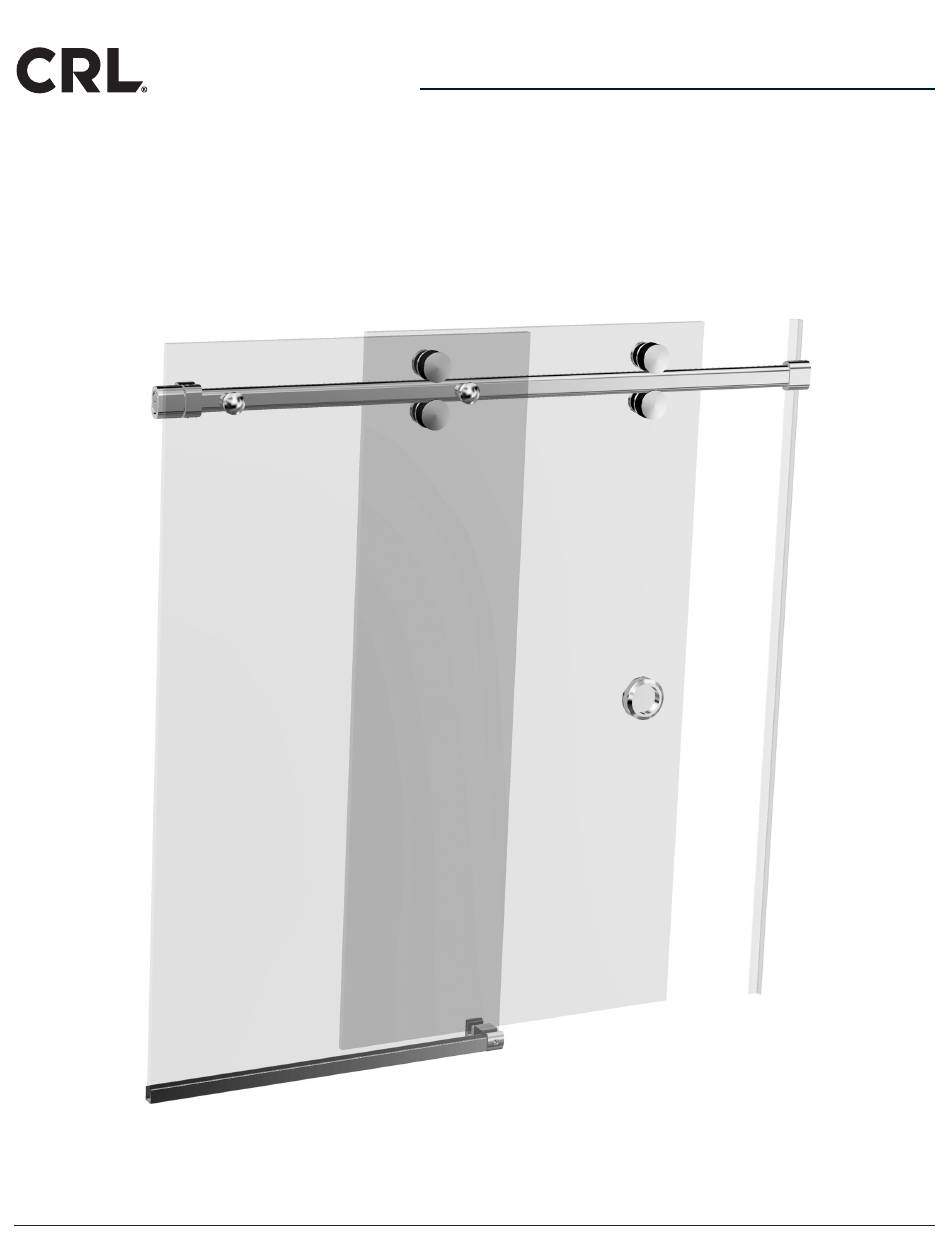

- Page 1 INSTALLATION INSTRUCTIONS crlaurence.com CRL BRISTOL SERIES BR178 SLIDING DOOR KIT NOTE: Glass and U-Channel not included. C.R. Laurence Co., Inc. • 2503 E. Vernon Ave., Los Angeles, CA 90058 • 1.800.421.6144 • crlaurence.com 11M0418_Bristol_05-2023...
-
Page 2: Table Of Contents
CRL BRISTOL BR178 SLIDING DOOR KIT ORDER OF ASSEMBLY AND INSTALLATION PARTS LIST ................... . . -
Page 3: Specifications
CRL BRISTOL BR178 SLIDING DOOR KIT PARTS LIST BR1UG2 BR1NDS1 Reversible Door Guide SERNHP2 Stopper 5/16” or 3/8” (8 or 10 mm) Inserts and Thru-Glass Pull with Gaskets Mounting Screw and Anchor Included BR1NR1 Roller Total Four Included in Kit... -
Page 4: Glass Fabrication
CRL BRISTOL BR178 SLIDING DOOR KIT GLASS FABRICATION 1 - 3/4” (44 mm) 3” (76 mm) 3 - 1/2” 3 - 1/2” 5/8” 5/8” (89 mm) (89 mm) 2 - 7/16” (62 mm) (16 mm) (16 mm) Diameter Diameter 3 - 1/2”... -
Page 5: Sliding Door Preparation
CRL BRISTOL BR178 SLIDING DOOR KIT SLIDING DOOR PREPARATION Unpack Rollers Screws for 3/8” BR1NR1 (10 mm) Glass Roller (Four Each) Unpack and disassemble two sets of Rollers. NOTE: Rollers shipped assembled with screws for 5/16” (8 mm) Glass. Screws Screw for for 3/8”... -
Page 6: Site Preparation
CRL BRISTOL BR178 SLIDING DOOR KIT SITE PREPARATION Mark Location for Header Support Bar Mark and drill holes for Header Support Bar. MOUNTING POSITION Minimum EXTERIOR CURB 1-3/16” (30 mm) from edge Minimum 1-3/16” (30 mm) from edge NOTE: Header Support Bar is generally centered to vertical jamb. Allow at least 1-3/16”... -
Page 7: Frame Installation
CRL BRISTOL BR178 SLIDING DOOR KIT FRAME INSTALLATION NOTE: Track Holder Fittings shown orientated for installation. Set Screw at end holds Base to Mounting Blocks while Mount Track Holder Fittings second Set Screw secures Base to Header when installed. BR1AHW2 Unpack Track Holder Fittings. -
Page 8: Bottom Guide Mounting Options And U-Channel Preparation (Optional)
CRL BRISTOL BR178 SLIDING DOOR KIT FRAME INSTALLATION (CONTINUED) Bottom Guide Mounting Options and U-Channel Preparation (Optional) NOTE: Fixed Panel may be fastened to curb with clamps. Use dimensions shown below to calculate length of U-Channel for each mounting option. -
Page 9: Install Fixed Panel
CRL BRISTOL BR178 SLIDING DOOR KIT FRAME INSTALLATION (CONTINUED) Install Fixed Panel 4 mm BR1FP2 Allen Fixed Panel Fittings Unpack and disassemble Fixed Panel Fittings. Wrench Fit Interior and Mid Plates in Header Mounting Holes. Align holes in Fixed Panel with Header Mounting Screw Holes. -
Page 10: Install Bottom Door Guide
CRL BRISTOL BR178 SLIDING DOOR KIT FRAME INSTALLATION (CONTINUED) Install Bottom Door Guide Fasten Bottom Door Guide and tighten Set Screw to Fixed Panel. Rubber tipped Gasket Set Screw Slide 4 mm Gasket between EXTERIOR Allen Panel and Guide. Wrench... -
Page 11: Finishing
CRL BRISTOL BR178 SLIDING DOOR KIT FINISHING Unpack and Install Thru-Glass Pull Unscrew Thru-Glass Pull. Separate Cover from SERNHP2 Base, select combination of gaskets, and Thru-Glass Pull reassemble on Sliding Glass Door. with Gaskets Base NOTE: Three pairs of Gaskets in various widths included. -
Page 12: Br190-90 Degree Connector Installation
CRL BRISTOL BR178 SLIDING DOOR KIT INSTALLATION INSTRUCTION CRL BRISTOL SERIES BR190 - 90 DEGREE CONNECTOR C.R. Laurence Co., Inc. • 2503 E. Vernon Ave., Los Angeles, CA 90058 • 1.800.421.6144 • crlaurence.com P. 12... - Page 13 CRL BRISTOL BR178 SLIDING DOOR KIT BR190 - 90 DEGREE CONNECTOR BR190 assembly BR190 in the package: (1) 1/4-20 FHP S/S Screw (1) Mounting Block (2) Clear Molded Washers (1) Exterior Plate (Available finishes BS, PS, MBL) Note: The BR190 connector is fixed and does not have height adjustability. Install the BR190 glass side connector first, this allows for final adjustments before drilling the wall mount bracket holes.
- Page 14 CRL BRISTOL BR178 SLIDING DOOR KIT BR190 - 90 DEGREE CONNECTOR BR190 glass fabrication front view BR190 glass fabrication isometric view C.R. Laurence Co., Inc. • 2503 E. Vernon Ave., Los Angeles, CA 90058 • 1.800.421.6144 • crlaurence.com P. 14...
