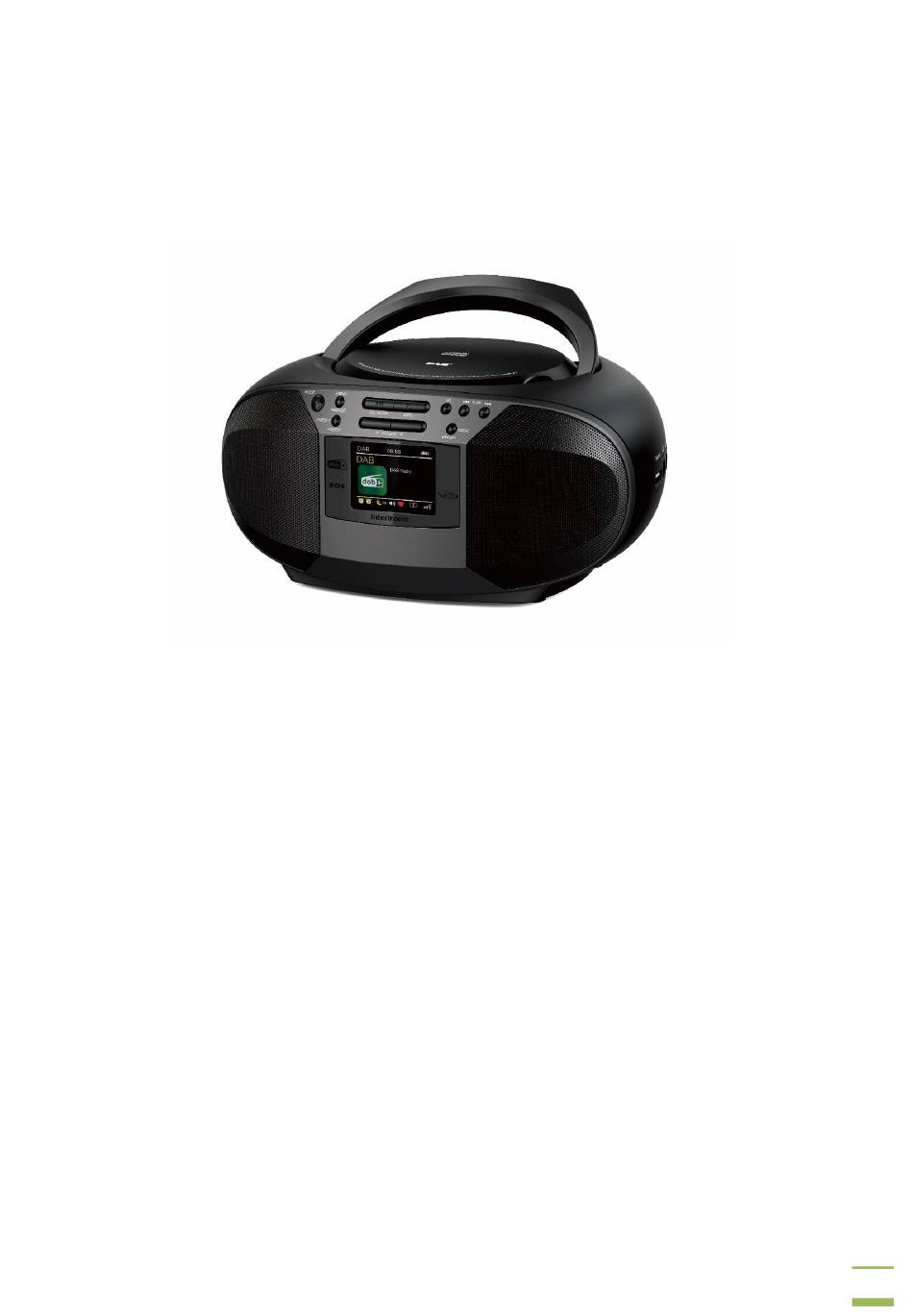

MODEL
ITR MCD-25 DAB+
Instruction manual
Congratulation on your purchase. For a better use of your new device,
we recommend you carefully read this user manual and keep it for record.
1
CDP-26DAB-BT V4.2

Advertisement

loading
Need help?

Need help?

Do you have a question about the ITR MCD-25 DAB+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Intertronic ITR MCD-25 DAB+

  • Page 1 MODEL ITR MCD-25 DAB+ Instruction manual Congratulation on your purchase. For a better use of your new device, we recommend you carefully read this user manual and keep it for record. CDP-26DAB-BT V4.2...
  • Page 2 SAFETY PRECAUTION 1. Please take the time to follow the instructions in this user guide carefully. It will help you set up and operate your system properly and enjoy all of its advanced features. 2. Please save this user guide for future reference 3.
  • Page 3 23. The apparatus shall not be exposed to dripping or splashing, no objects filled with liquids, such as vases, shall be placed on the apparatus. 24. Servicing - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage. Refer all servicing to qualified service personnel.
  • Page 4 SYMBOLS This mark is applied to show This symbol means that this the equipment conforms to unit is double insulated. An European safety and earth connection is not electromagnetic compatibility required. standards. This apparatus includes these marking: LASER SAFETY This unit employs a laser, only qualified service personnel should attempt repair.

  • Page 5: Battery Installation

    Battery installation: 1. Remove the battery compartment cover carefully. 2. Install 6 x “C” size batteries (UM-2 or equivalent) while observing the correct polarities. : There is an engraved diagram showing battery installation directions inside the battery compartment. 3. Replace the battery compartment cover. : Only adults should handle the batteries.
  • Page 6 Controls SPEAKER LCD DISPLAY STANDBY/MODE +10/PRESET/FOLDER+ MENU/ SNOOZE VOLUME - SCAN/ OK INFO VOLUME + PROG/ REPEAT TUNE - TUNE + USB-MP3 JACK 3.5mm EARPHONE JACK 3.5mm AUX-IN JACK FM ANTENNA BATTERY COMPARTMENT CD DOOR HANDLE AC SOCKET CDP-26DAB-BT V4.2...

  • Page 7: Connect Power

    Significance of icons in the display Alarm 1 on Alarm 2 on Sleep function activated, time remaining 120 minutes Speaker on Saved station and preset number Radio station with RDS Stereo reception Signal strength Connect power This unit is supplied with an AC mains cable. 1.
  • Page 8 Adjust sound [EQ] During play back, you can adjust volume and select different sound effects. - VOLUME +/- Press VOLUME + / – button for increase or decrease volume level. - SOUND EFFECT Press EQ button to select a pre-set sound effect: [NORMAL] >...

  • Page 9: Listen To Fm Radio

    Listen to FM radio Tune to FM radio stations For optimal reception, fully extend and adjust the position of the FM antenna. 1. Press MODE button repeatedly to select FM source then press OK to confirm the selection. 2. Press and hold TUNE+ / - button for 2 seconds. [Scanning…] is displayed.

  • Page 10: Use Fm Menu

    Display FM information Press INFO button repeatedly to cycle through the following information (if available). • Radio text • Program type (PTY) • Ensemble name • Stereo or mono reception • Date Use FM menu 1. In FM mode, press MENU to access the FM menu. 2.

  • Page 11: Display Dab Information

    Program DAB+ stations 1. Tune to a DAB+ radio station. PRESET 2. Press for 2 seconds to enter [Save to Preset] option. 3. Press button to allocate a number (1 to 40) to this radio station, then press OK button to confirm. The radio station is stored with the selected sequence number.
  • Page 12 Tune to a DAB+ station manually With this feature, you can tune to a specific channel/frequency manually. In addition to antenna orientation for better radio reception, the optimal reception can also be obtained with this feature. 1. Press MENU button to access Digital Radio menu. 2.
  • Page 13 Manual pairing the Bluetooth enable device: 1. In Bluetooth mode if paired device. 2. Press STOP button 3 seconds to enable pairing mode, the [Pairing] is displayed and blink. 3. On your Bluetooth device, enable Bluetooth and search for Bluetooth devices that can be paired (refer to the user manual of the device).

  • Page 14: Repeat Playback

    Select the tracks Press / TUNE+ button to skip to the next track. Press / TUNE- button to the beginning of the current track. Press and hold +10 button to skip the track in 10 multiples . Press and hold FOLDER+ button to skip the folder (CD-MP3/USB playback only) Repeat playback During CD playback, press the REPEAT repeatedly to enable different...

  • Page 15: Playing Usb

    Playing USB 1. Press MODE button repeatedly to select USB, then press OK button to confirm the selection. 2. Press the button once to begin playback. Press again to PAUSE the music playback, the time track flashes on the display to indicate the player is in Pause mode.

  • Page 16: System Settings

    System Settings With the system settings, you can set: • [Sleep]: Set the sleep timer (When the unit turned on) • [Alarm]: Set the Alarm time. • [Time/Date]: Set the Time and Date • [Backlight]: Adjust the level of timeout, On level and Dim Level •...

  • Page 17: Set The Alarms

    Set the Alarms Before setup, please make sure the clock have been set. 1. Press MENU button to enter System settings then select Alarms: [Alarm 1] [Alarm 2] 2. Press button repeatedly to set Alarm options: [Alarm] On / Off [Frequency] Once, Weekday, Weekend, Daily.
  • Page 18 TECHNICAL SPECIFICATIONS Output Power 2x2W RMS Disc Support Disc CD, CD-R, CD-RW, MP3-CD, WMA-CD DAB+ frequency 174.928 – 239.200 MHz FM frequency 87.5 -108 MHz Bluetooth V5.3+EDR, support A2DP profile Frequency range 2402 to 2480 MHz Max transmits power: <20dBm General information AC Power AC 100-230V~50/60Hz...

  • Page 19: Troubleshooting

    TROUBLE SHOOTING Possible Cause No power Make sure the plug is connected and switch the power on. No Sound Increase the volume. CD/BT/AUX/DAB+/FM/USB mode No sound from AUX input Increase the output volume from the external device. Sound is distorted Reduce the volume.
  • Page 20 Recycling Processing of electric and electronic equipment at the end of their service life (applicable in member countries of the European Union and other European countries operating a selective waste collection system). This symbol, affixed to the product or its packaging, indicates that the product must not be processed with household waste.
