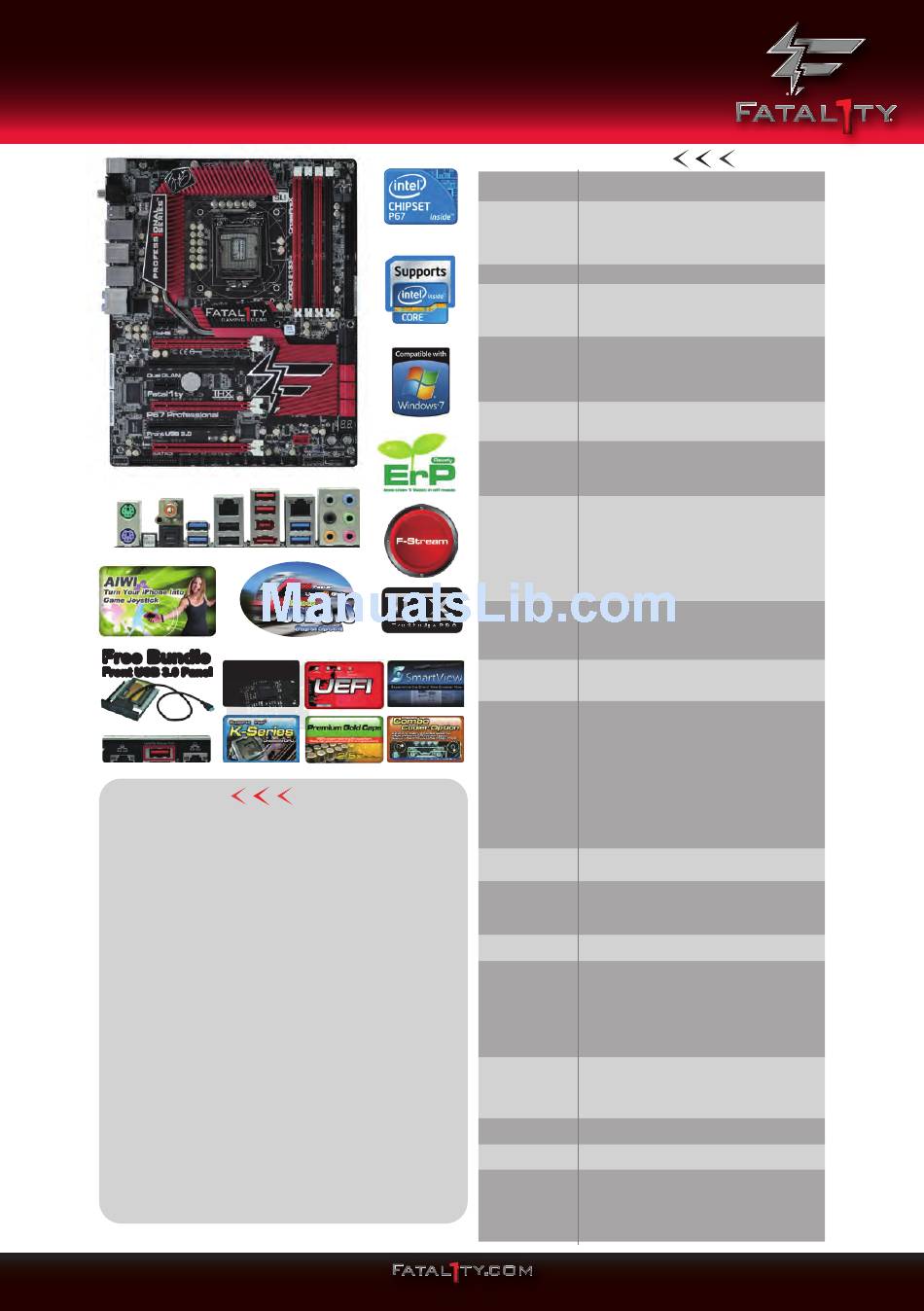

ASROCK P67 PROFESSIONAL Datasheet

P67 Professional
®
Intel P67 Chipset
Free Bundle Free Bundle
Front USB 3.0 Panel Front USB 3.0 Panel
Fatal1ty Mouse Port
**
Product Brief
- Premium Gold Caps (2.5 x longer life time), 100% Japan-made
high-quality Conductive Polymer Capacitors
- Digi Power, Advanced V16 + 2 Power Phase Design
®
- Supports Intel
- Supports Dual Channel DDR3 2133(OC)
- Supports ATI TM
TM
CrossFireX
- Supports NVIDIA
- Dual PCIE GLAN with Teaming function
- 2 x Front USB 3.0 ports, 4 x Rear USB 3.0 ports, 6 x SATA3
connectors, 1 x eSATA3 connector, 2 x IEEE1394 ports
- Dr. Debug, Smart Swith Design: Power/Reset/Clear CMOS
Switch with LED
- Supports Fatal1ty F-Stream, Instant Boot, Instant Flash,
Good Night LED, Multi-Fan Speed Control, AIWI, APP Charger,
SmartView
- Combo Cooler Option (C.C.O.)
- 7.1 CH HD Audio with Content Protection (Realtek ALC892
Audio Codec), THX TruStudio PRO
audio suppport
- ErP/EuP Ready
- Free Software : CyberLink DVD Suite - OEM and Trial
- Free Bundle : 1 x SLI_Bridge_2S Card , 1 x Front
USB 3.0 Panel, 1 x Rear USB 3.0 Bracket
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.
Digital PWM
Design
K-Series unlocked CPU
Quad CrossFireX TM , 3-Way CrossFireX
® Quad SLI TM and SLI TM
TM
and Premium Blu-ray
Detail Specification
Platform - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- All Solid Capacitor design (100% Japan-made high-quality
Conductive Polymer Capacitors)
CPU
- Supports 2
Package
- Advanced V16 + 2 Power Phase Design
- Supports Intel
- Supports Intel
- Supports Hyper-Threading Technology
Chipset
- Intel
- Dual Channel DDR3 memory technology
Memory
- 4 x DDR3 DIMM slots
- Supports DDR3 2133(OC)/1866(OC)/1600/1333/1066 non-ECC,
un-buffered memory
- Max. capacity of system memory: 32GB
- Supports Intel
- 3 x PCI Express 2.0 x16 slots (PCIE2/PCIE4: single at x16 or dual at
Expansion Slot
x8/x8 mode; PCIE5: x4 mode)
- 2 x PCI Express 2.0 x1 slots
- 2 x PCI slots
- Supports ATI
CrossFireX
- Supports NVIDIA
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio
Audio
Codec)
- Premium Blu-ray audio support
- Supports THX TruStudio PRO
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
LAN
- Realtek RTL8111E
- Supports Wake-On-LAN
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
I/O Panel
Rear Panel I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x eSATA3 Connector
- 4 x Ready-to-Use USB 3.0 Ports
- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
- 1 x IEEE 1394 Port
- 1 x Clear CMOS Switch with LED
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in /
Front Speaker / Microphone
- 2 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1,
SATA3
RAID 10, RAID 5 and Intel Rapid Storage), NCQ, AHCI and
"Hot Plug" functions
- 4 x SATA3 6.0 Gb/s connectors by Marvell SE9120, support NCQ,
AHCI and "Hot Plug" functions
(SATA3_M4 connector is shared with eSATA3 port)
- 4 x Rear USB 3.0 ports by Etron EJ168A, support USB 1.0/2.0/3.0
USB 3.0
up to 5Gb/s
- 1 x Front USB 3.0 header (supports 2 USB 3.0 ports) by Etron
EJ168A, supports USB 1.0/2.0/3.0 up to 5Gb/s
Connector - 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID
10, RAID 5 and Intel Rapid Storage), NCQ, AHCI and Hot Plug functions
- 6 x SATA3 6.0 Gb/s connectors
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- 1 x IEEE 1394 header
- 1 x Power LED header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- CD in header
- Front panel audio connector
- 4 x USB 2.0 headers (support 8 USB 2.0 ports)
- 1 x USB 3.0 header (supports 2 USB 3.0 ports)
- 1 x Dr. Debug with LED
- 1 x Power Switch with LED
Smart Switch
- 1 x Reset Switch with LED
- 1 x Clear CMOS Switch with LED
BIOS Feature
- 64Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
TM and
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- DRAM, PCH, CPU PLL, VTT, VCCSA Voltage Multi-adjustment
- Drivers, Utilities, AntiVirus Software (Trial Version), Software Suite
Support CD
(CyberLink DVD Suite - OEM and Trial)
Unique Feature - F-Stream
- Instant Boot
- Instant Flash
- AIWI
- APP Charger
- SmartView
- Hybrid Booster:
- Combo Cooler Option (C.C.O.)
- Good Night LED
- CPU Temperature Sensing
Hardware Monitor
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by
CPU or MB Temperature)
- CPU/Chassis Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
OS - Microsoft
XP 64-bit compliant
Certifications
- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
- 1 x SLI_Bridge_2S Card
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 133 Cables
- 6 x SATA Data Cables (Optional)
- 2 x SATA 1 to 1 Power Cables (Optional)
- 1 x Front USB 3.0 Panel
- 4 x HDD Screws
- 6 x Chassis Screws
- 1 x Rear USB 3.0 Bracket
nd ® TM
Generation Intel Core i7 / i5 / i3 in LGA1155
®
Turbo Boost 2.0 Technology
®
K-Series unlocked CPU
® P67
®
Extreme Memory Profile (XMP)
TM TM
Quad CrossFireX , 3-Way CrossFireX
TM
® Quad SLI TM and SLI TM
TM
- CPU Frequency Stepless Control
- U-COP
- Boot Failure Guard (B.F.G.)
® Windows ® 7 / 7 64-bit / Vista TM / Vista TM 64-bit / XP /
TM
and
