Summary of Contents for ADVANCED SIMRACING VESA

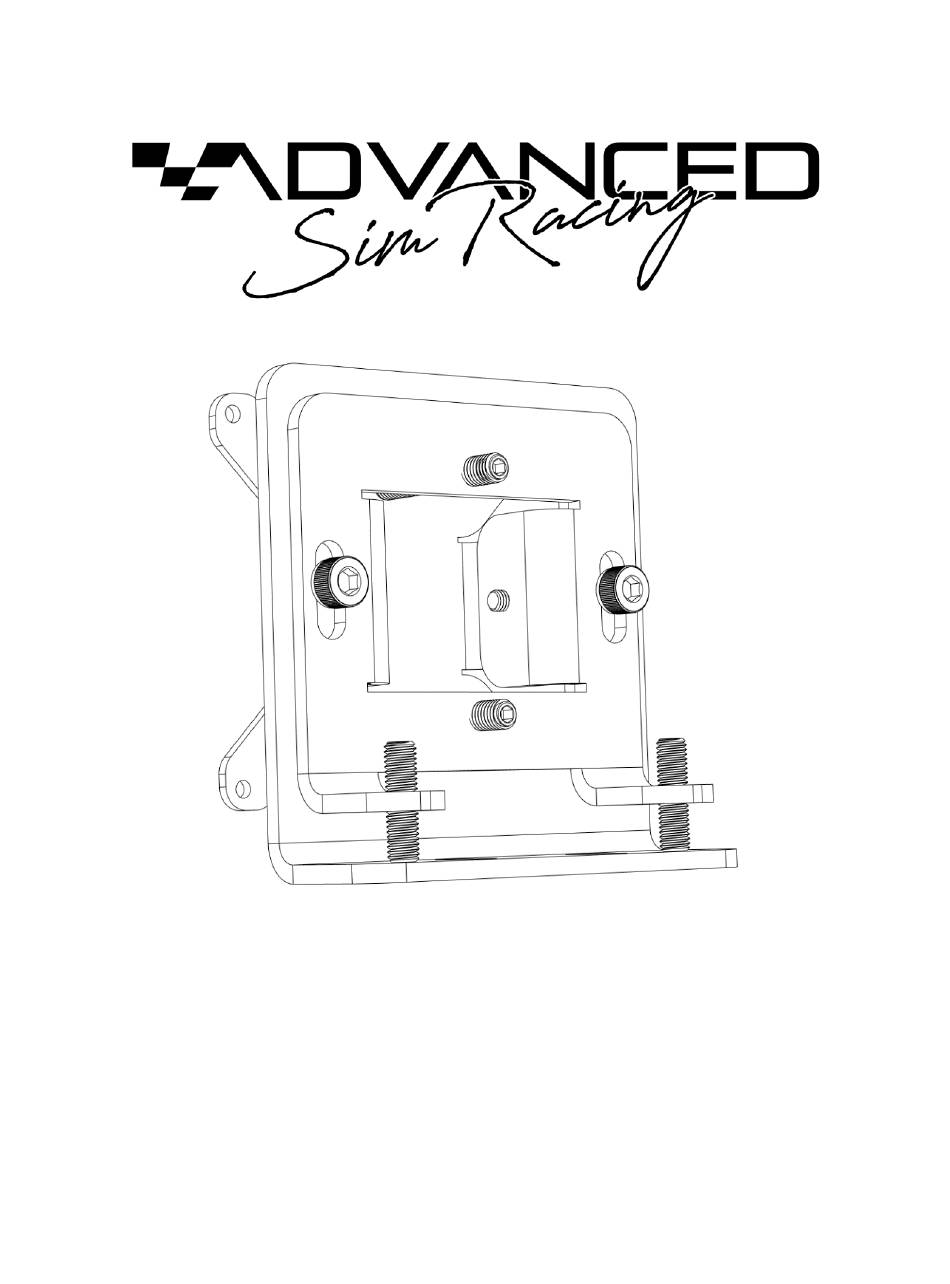

- Page 1 Advanced VESA Mount ASSEMBLY AND USER GUIDE...
- Page 2 Table of Contents Required Tools ............................1 Content of package ..........................2 Assembly guide ............................. 3 User Guide .............................. 7...
-
Page 3: Required Tools
Required Tools 6mm Allen key 5mm Allen key 4mm Allen Key *And maybe a Philips head screwdriver, if your display screws are those For questions, issues or comments, feel free to reach our support team! https://www.advancedsimracing.com/pages/advanced-help-center... -
Page 4: Content Of Package
Content of package Boxes 1X Advanced VESA Mount kit box Per VESA mount, X3 for the triple advanced VESA kit. Adjustment Plate – 1X Main Plate – 1X VESA Mount – 1X M6 X 12 M8 X 12 M8 X 30 Hex screws –... -
Page 5: Assembly Guide
Assembly guide Screw 2X M8X50 set screws through the center threaded holes and 2X M8X30 set screws through the lower holes using the 4mm allen key. Screw in no more than 1/2”. Attach the adjustment plate to the main plate with 2X M8 X 12 socket screws, using the 6mm allen key. - Page 6 Assemble the VESA mount to your display using the display’s included hardware*. If the VESA mount doesn’t fit flush with the display’s holes, use the included standoffs to space out the VESA mount and allow proper fastening. Please don’t use standoffs as screws.
- Page 7 Attach your screen to the monitor stand using 2X M6 X 12 socket screws.
- Page 8 Congrats on your new advanced VESA mounts!
-
Page 9: User Guide
User Guide Your advanced VESA mount is made to have strong and precise adjustment capabilities. First adjustment possible is the height. Loosen the M8 X 12 screws, and tighten or loosen the M8 X 30 set screws to the desired height. When height is set, re-tighten the M8 X 12 socket screws. - Page 10 The longer M8 X 50 set screws are for precise vertical tilt adjustments. You may have to loosen the M6 X 12 socket screw to facilitate the setup. ± 7° The last adjustment is for depth and position, through the monitor mount’s attachment.
