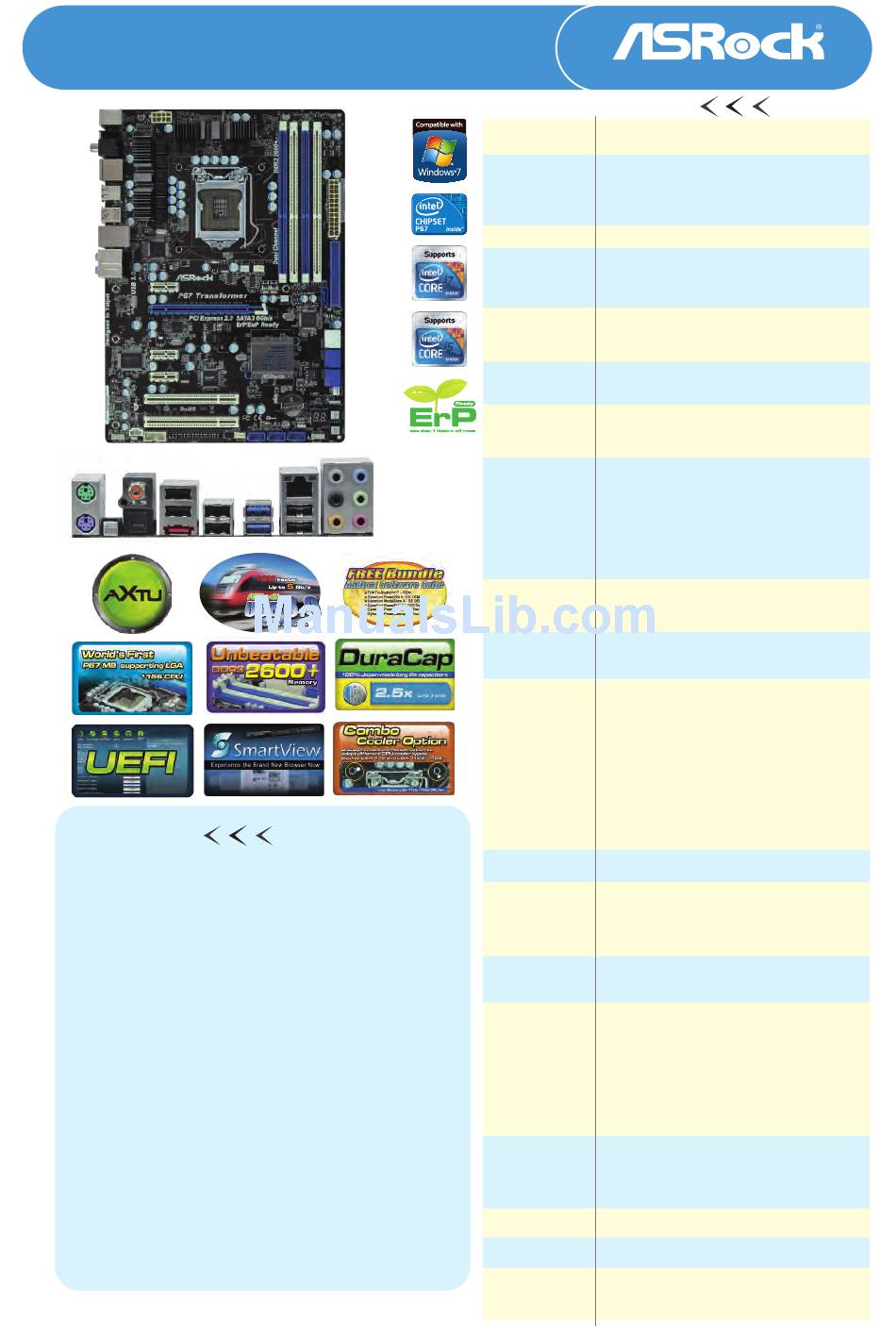

ASROCK P67 TRANSFORMER Datasheet

P67 Transformer
®
Intel P67 Chipset
Product Brief
- ASRock DuraCap (2.5 x longer life time),
100% Japan-made high-quality Conductive
Polymer Capacitors
- Supports Intel ® Lynnfield Core
in LGA1156 Package
- Supports Dual Channel DDR3 2600+(OC)
- 2 x USB 3.0 ports, 2 x SATA3 connectors,
1 x eSATA2 connector
- Dr. Debug, Smart Switch Design : Power/Reset/
Clear CMOS Switch with LED
- Supports ASRock Extreme Tuning Utility (AXTU),
Instant Boot, Instant Flash, Good Night LED,
Multi-Fan Speed Control, APP Charger, SmartView
- Combo Cooler Option (C.C.O.)
- 7.1 CH HD Audio with Content Protection
(Realtek ALC892 Audio Codec), Premium Blu-ray
audio support
- Free Software : (CyberLink DVD Suite - OEM and
Trial; Creative Sound Blaster X-Fi MB - Trial)
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.
TM i7 / i5 Processors
w w w. a s rock . co m
Detail Specification
Platform
- ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm
- All Solid Capacitor design (100% Japan-made high-quality
Conductive Polymer Capacitors)
CPU
- Supports Intel
Package
- Advanced V8 + 2 Power Phase Design
- Supports Intel
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
Chipset
- Intel ®
P67
- Dual Channel DDR3 memory technology
Memory
- 4 x DDR3 DIMM slots
- Supports DDR3 2600+(OC)/2133(OC)/1866(OC)/1600/1333/1066
non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB
- Supports Intel
- 1 x PCI Express 2.0 x16 slot (blue @ x16 mode)
Expansion Slot
- 3 x PCI Express 2.0 x1 slots
- 2 x PCI slots
Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio
Codec)
- Premium Blu-ray audio support
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
LAN
- Realtek RTL8111E
- Supports Wake-On-LAN
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
I/O Panel
Rear Panel I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 6 x Ready-to-Use USB 2.0 Ports
- 1 x eSATA2 Connector
- 2 x Ready-to-Use USB 3.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- 1 x Clear CMOS Switch with LED
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in /
Front Speaker / Microphone
- 2 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1,
SATA3
RAID 10, RAID 5 and Intel Rapid Storage), NCQ, AHCI and
"Hot Plug" functions
- 2 x USB 3.0 ports by Etron EJ168A, support USB 1.0/2.0/3.0 up to
USB 3.0
5Gb/s
Connector - 5 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1,
RAID 10, RAID 5 and Intel Rapid Storage), NCQ, AHCI and Hot Plug
functions
- 2 x SATA3 6.0 Gb/s connectors
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x IR header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- 1 x Power LED header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- CD in header
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
- 1 x Dr. Debug with LED
- 1 x Power Switch with LED
Smart Switch - 1 x Reset Switch with LED
- 1 x Clear CMOS Switch with LED
BIOS Feature
- 64Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- DRAM, PCH, CPU PLL, VTT, VCCSA Voltage Multi-adjustment
- Supports I. O. T. (Intelligent Overclocking Technology)
- Drivers, Utilities, AntiVirus Software (Trial Version), ASRock Software
Support CD
Suite (CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster
X-Fi MB - Trial)
Unique Feature - ASRock Extreme Tuning Utility (AXTU)
- Instant Boot
- ASRock Instant Flash
- ASRock AIWI
- ASRock APP Charger
- SmartView
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Combo Cooler Option (C.C.O.)
- Good Night LED
- Turbo 40 / Turbo 50 Technology
- CPU Temperature Sensing
Hardware Monitor
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by
CPU or MB Temperature)
- CPU/Chassis Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
OS
- Microsoft ® Windows
64-bit compliant
Certifications
- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
- Quick Installation Guide, Support CD, I/O Shield
Accessories
- 2 x SATA Data Cables (Optional)
® Lynnfield Core TM i7 / i5 Processors in LGA1156
® Turbo Boost Technology
® Extreme Memory Profile (XMP)
® 7 / 7 64-bit / Vista TM / Vista TM 64-bit / XP / XP
