Samsung SCM 8550 Service Manual

SAMS -00142

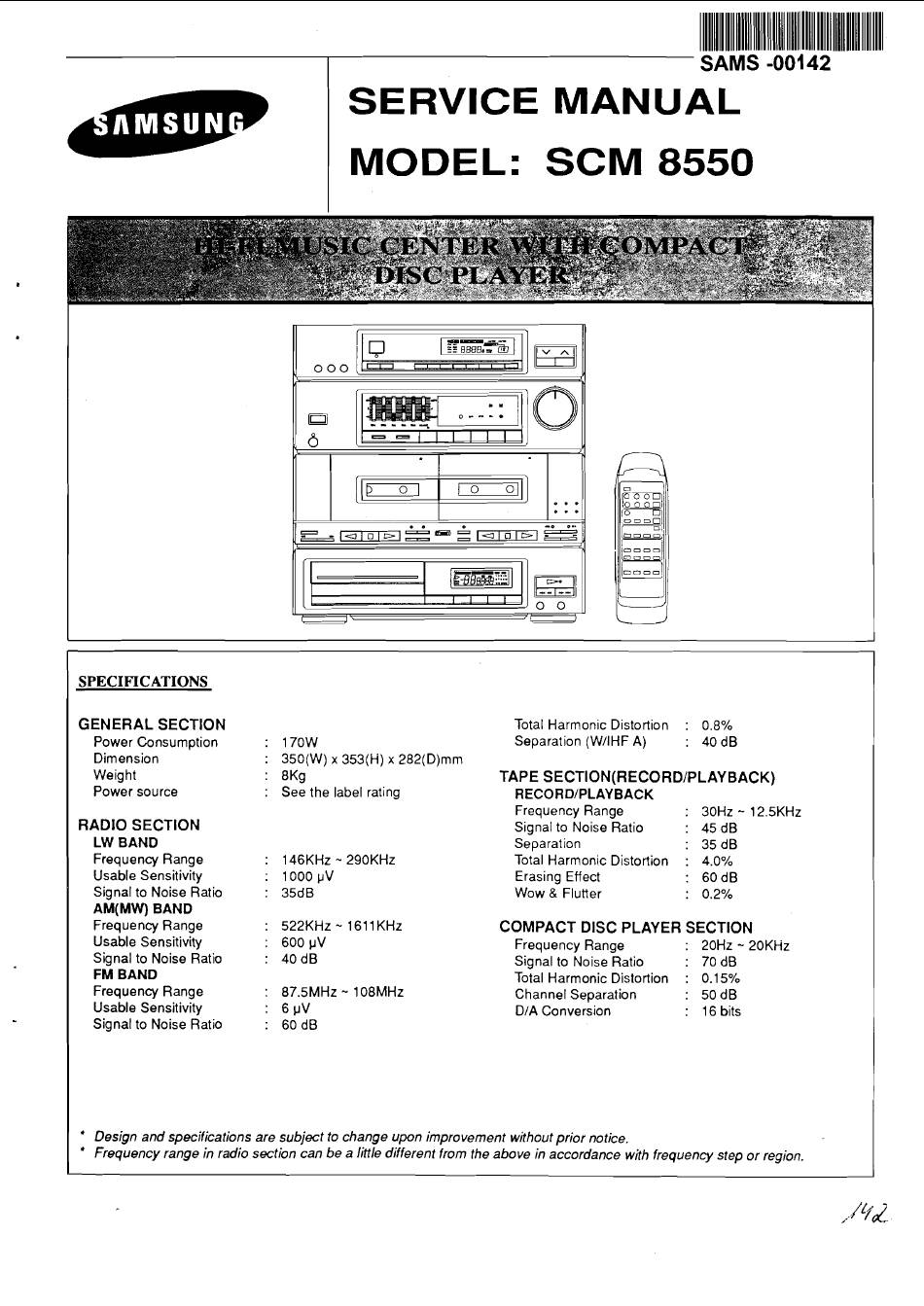

SERVICE MANUAL
MODEL: SCM
8550
SPECIFICATIONS
GENERAL SECTION
Power Consumption
Dimension
Weight
Power source
RADIO SECTION
LW BAND
Frequency Range
Usable Sensitivity
Signal to Noise Ratio
AM(MW) BAND
Frequency Range
Usable Sensitivity
Signal to Noise Ratio
FM BAND
Frequency Range
Usable Sensitivity
Signal to Noise Ratio
: 170W
: 350(W)
x 353(H) x 282(D)mm
: 8Kg
: See the label rating
: 522KHz
-
161 1 KHz
: 600 pV
: 4 0 d B
Total Harmonic Distortion
: 0.8%
Separation (WIIHF A)
: 40 dB
TAPE SECTION(RECORD1PLAY BACK)
RECORDIPLAYBACK
Frequency Range
:
30Hz
-
12.5KHz
Signal to Noise Ratio
: 4 5 d B
Separation : 35 dB
Total Harmonic Distortion
:
4.0°/~
Erasing Effect : 6 0 d B
Wow & Flutter
:
0.2%
COMPACT DISC PLAYER SECTION
Frequency Range
:
20Hz
-
20KHz
Signal to Noise Ratio
:
70 dB
Total Harmonic Distortion : 0.1 5%
Channel Separation
:
5 0 d B
DIA Conversion : 16 bits
Design and specifications are subject to change upon improvement without prior notice.
Frequency range in radio section can be a little different from the above in accordance with frequency step or region.
