Summary of Contents for Bristol Babcock ControlWave BB-GT-5ES-1
- Page 1 Instruction Manual CI-ControlWave IES Wave Issue: 07/2001 Industrial Ethernet Real-time Switches 5 Port Switch: BB-GT-5ES-1 4+1 Fiber Single-mode Switch (SM): BB-GT-5ES-2CS 4+1 Fiber Multi-mode Switch (MM): BB-GT-5ES-3SC Bristol Babcock...
- Page 2 Copyright (c) 2001 Bristol Babcock, 1100 Buckingham St., Watertown, CT 06795. No part of this manual may be reproduced in any form without the express written permission of...
-
Page 3: Electrical Grounding
When returning any equipment to Bristol Babcock for repairs or evaluation, please note the following: The party sending such materials is responsible to ensure that the materials returned to Bristol Babcock are clean to safe levels, as such levels are defined and/or determined by applicable federal, state and/or local law regulations or codes. -
Page 4: Warranty
WARRANTY Bristol warrants that goods described herein and manufactured by Bristol are free from defects in material and workmanship for one year from the date of shipment unless otherwise agreed to by Bristol in writing. Bristol warrants that goods repaired by it pursuant to the warranty are free from defects in material and workmanship for a period to the end of the original warranty or ninety (90) days from the date of delivery of repaired goods, whichever is longer. - Page 5 How to return material for Repair or Exchange Before a product can be returned to Bristol Babcock for repair, upgrade, exchange, or to verify proper operation, form (GBU 13.01) must be completed in order to obtain a RA (Return Authorization) number and thus ensure an optimal lead time. Completing the form is very important since the information permits the Bristol Babcock Repair Dept.
- Page 6 _______________________________ phone If we are unable to contact this person the backup person is: _________________________ phone Special Requests: Ship prepaid to: Bristol Babcock Inc., Repair Dept., 1100 Buckingham Street, Watertown, CT 06795 Phone: 860-945-2442 Fax: 860-945-3875 Form GBU 13.01...
- Page 7 ● Know your system. As you know, a well-trained staff is essential to your operation. Bristol Babcock offers a full schedule of classes conducted by full-time, professional instructors. Classes are offered throughout the year at four locations: Houston, Birmingham, Orlando and our Watertown, CT headquarters.
- Page 8 BLANK PAGE...
- Page 9 On off-shore oil platforms, on natural gas pipelines, and maybe even at your local water company, there are Bristol Babcock instruments, controllers, and systems running year-in and year-out to provide accurate and timely data to our customers.
- Page 10 Please call the main Bristol Babcock number (860-945-2200) if you are unsure which office covers your particular area. Visit our Site on the World Wide Web For general information about Bristol Babcock and its products, please visit our site on the World Wide Web at: www.bristolbabcock.com...
- Page 11 Switch User Manual Industrial Ethernet Real-time Switches Contents at a Glance: Section 1 Page 3 General Information Section 2 Page 4 LED Indicators Section 3 Installation Page 5 Section 4 Power Wiring Page 6 Section 5 Ethernet Wiring Page 7 Section 6 Page 9 Switching Features...
- Page 12 INSTALLATION AND HAZARDOUS AREA WARNINGS: These products should not be used to replace proper safety interlocking. No software-based device (or any other solid-state device) should ever be designed to be responsible for the maintenance of consequential equipment or personnel safety. In particular, no responsibility for damages, either direct or consequential, that result from the use of this equipment in any application will be taken by the distributor of this product.
-
Page 13: General Information
Section 1 General Information Overview This manual will help you install and maintain the Industrial Ethernet Switches. These unmanaged switches are extremely easy to install and operate because little or no user configuration is required. Once the Ethernet connections are made and the unit is powered up it will immediately begin to operate. -
Page 14: Section 2 Led Indicators

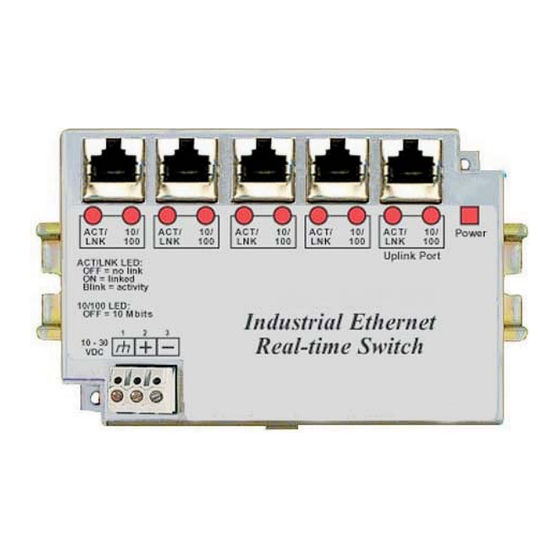

Section 2 LED Indicators Overview The Industrial Ethernet Switches have communication LEDs for each port and a power LED. Refer to the pictures below for the typical location of these LEDs. The exact location of these LEDs may vary between the different models. FIVE PORT SWITCH FIVE PORT WITH FIBER SWITCH Power... -
Page 15: Installation
Section 3 Installation Overview The Industrial Ethernet Switch can be snapped onto a standard DIN rail (EN50022) or screwed directly to a flat panel. Refer to the mechanical drawings below. Note: The Ethernet connections for the 5 port switch come out the face of the unit. However, the Ethernet connections for the 5 port fiber switch come out the top. -
Page 16: Power Wiring
Section 4 Power Wiring Overview Industrial Ethernet Switches can be powered from the same DC source that is used to power your I/O devices. 10 to 30 VDC needs to be applied to terminals 2 and 3. Refer to the wiring diagram below. -
Page 17: Ethernet Wiring
Section 5 Ethernet Wiring Overview The Industrial Ethernet Switches provides connections to Ethernet devices on the factory floor. Typically the uplink port or fiber port is used to connect to another Ethernet switch or hub that is connected to the main Ethernet backbone. The other four Ethernet ports are then connected to Ethernet devices such as PLCs, Ethernet I/O, or industrial computers. - Page 18 Ethernet Connector Pin Positions Pin # Assignment Ethernet Connector Pin Assignments Cable Distance The maximum cable length for 10/100BaseT(x) is typically 100 meters (328 ft.). Refer to the following chart for some general guidelines. From Maximum Distance Switch Switch or Hub 100 meters (328 feet) 10Mbps Hub 10Mbps Hub...
-
Page 19: Switching Features
Section 6 Switching Features Switching Here’s a brief explanation of the features found in the Industrial Ethernet Switches documented by Features this manual. 10BaseT and 100BaseTx Autodetection Standard Ethernet (10BaseT) has a maximum speed of 10 Mbps (megabits per second). Fast Ethernet (100BaseTx) has a maximum speed of 100 Mbps. - Page 20 Unmanaged operation The Industrial Ethernet Switch requires no supervisory processor to operate properly. Flow control The Industrial Ethernet Switch automatically supports flow control frames on both the transmit and receive sides. Forwarding The Industrial Ethernet Switch supports store and forward mode. It will forward messages with known addresses out only the appropriate port.
-
Page 21: Technical Specifications
Section 7 Technical Specifications Technical Here are the technical specifications for the Industrial Ethernet Switches covered by this manual. Specifications 10/100BaseT(x) Ports: 10/100BaseT(x) ports Shielded RJ45 Protocols supported All standard IEEE 802.3 Ethernet compliancy IEEE 802.3 Auto-sensing operation Full and half duplex Auto-negotiating 10BaseT and 100BaseTX Flow control... - Page 22 General: Forwarding mode Store and forward Memory bandwidth 1.4 Gbps MAC addresses Address learning Automatic Address aging Remove old address after 300s Address migration Automatic Backoff operation Drops after 16 collisions Back pressure Automatic for half-duplex Broadcast storm protection Limits to 25% of bandwidth Buffering 113 (9port) or 205 (5port) buffers per port (128 bytes per buffer) Illegal frames...
-
Page 23: Section 8 Service Information
Support Section 4 - Power Wiring Section 5 - Ethernet Wiring During regular business hours, Bristol Babcock’s Application Support Group can provide telephone support for your technical questions. For technical assistance in troubleshooting a ControlWave Industrial Ethernet Real-time Switch call (860) 945-2244 or (860) 945-2286. - Page 24 BLANK PAGE...
-
